Key Technical Specifications
- Manufacturer: GE
- Model: 115D3385G1
- Cross reference: 872D436-0
- Product type: TDPI relay
- Application: Industrial control and switching
- Mounting: Panel or assembly-mounted, verify by part revision
- Function: Relay contact switching
- Condition: New Original / New Surplus
- Availability: Limited stock, subject to prior sale
- Compatibility note: Verify exact suffix and connector layout before ordering
Product Introduction

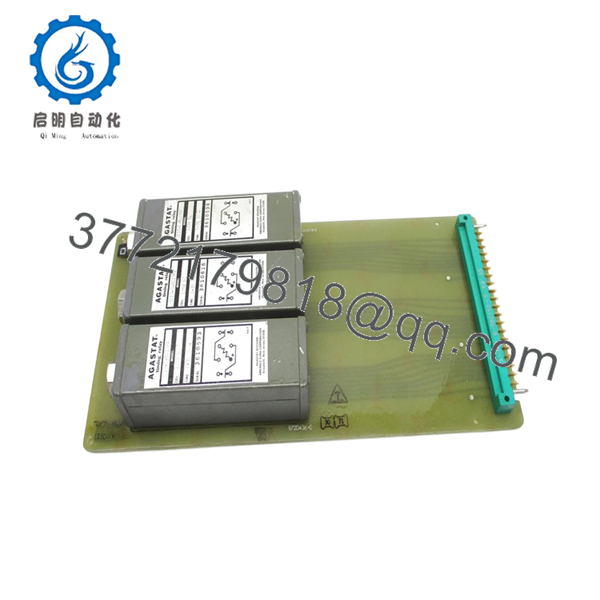

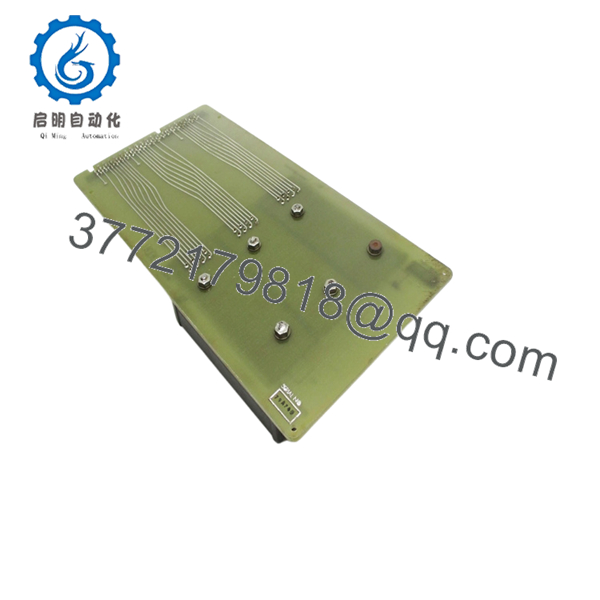

GE 115D3385G1 / 872D436-0 is an industrial TDPI relay used in GE control equipment and related automation assemblies. It is the kind of part buyers source when they need an exact replacement for an installed relay with the same revision and suffix.
This part is usually chosen for form, fit, and function matching, not for redesign. The critical checks are exact part number, wiring layout, and contact configuration, because a close-looking GE relay can still be wrong for the rack or harness.
Troubleshooting Quick Reference
| Symptom | Possible Cause | Relevance to this Part | Quick Check Method | Recommendation |
|---|---|---|---|---|
| No relay action when energized | Failed coil, no control power, or open circuit | ✅ High | Measure coil voltage at the relay terminals with a multimeter | Verify supply first, then replace if coil is open |
| Contacts stay open | Coil not energized or mechanical failure | ✅ High | Check control signal, then verify continuity across the contact set | Replace if coil input is present and contacts still do not close |
| Contacts welded closed | Overcurrent, arc damage, or end-of-life relay | ✅ High | Remove power and test contact isolation with an ohmmeter | Replace immediately; do not reuse |
| Intermittent operation | Loose socket, weak coil, or contaminated contacts | ✅ Medium | Wiggle-test the harness, inspect terminal tightness, and measure coil resistance | Reseat connections and replace if the fault repeats |
| Excess heat at relay body | High contact load or poor ventilation | ✅ Medium | Use an IR thermometer after run time and compare against adjacent devices | Check load current and derate if needed |
| Control circuit trips upstream fuse | Shorted coil or wiring fault | ✅ High | Measure coil resistance and inspect wiring for pinched insulation | Fix wiring before installing a new relay |
If you are stuck, contact technical support with photos of the relay, terminal layout, and any diagnostic readings.
- 115D3385G1 872D436-0
Frequently Asked Questions
Q: Is 115D3385G1 the same as 872D436-0?
A: They appear to be related identifiers for the same GE relay family, but you should confirm the exact cross-reference against the installed part. With older GE hardware, a suffix mismatch can mean a different contact form or coil spec.
Q: Can I swap this relay without changing wiring?
A: Only if the terminal layout and contact arrangement match exactly. Do not trust a visual match alone; verify the pinout before power goes back on.
Q: Is this part hot-swappable?
A: No, not in normal plant practice. Kill power first, isolate the circuit, and confirm zero voltage before removal.
Q: Why is surplus stock cheaper than factory new?
A: Usually because it comes from legacy inventory, overstock, or a removed but tested unit rather than current production. That lowers price, but it also means you should ask for condition, traceability, and test status.
Q: What should I check before ordering?
A: Match the full model number, suffix, wiring diagram, coil voltage, and contact arrangement. I would also compare the old relay’s physical dimensions and mounting style before buying.
Q: Does this relay need programming?
A: No programming is normally involved. The failure points are electrical and mechanical, so the real checks are coil health, contact condition, and correct wiring.
Q: What makes this part risky to replace wrong?
A: The usual traps are suffix mismatch, wrong terminal mapping, and assuming all GE relays with similar numbers are interchangeable. Take a photo before removal and mirror the original wiring exactly.
