3. Key Technical Specifications
- Phase CT Inputs: 5A (P5)
- Control Power: HI range (90-300 VDC / 70-265 VAC)
- Analog Outputs: 4-20 mA (A20)
- Protection: Loss of field, reverse power, stator/rotor faults
- Communication: Ethernet (T option) and other ports
- Display: Enhanced LCD
- Monitoring: Generator parameters, sequence of events
- Outputs: Programmable relays
4. Product Introduction

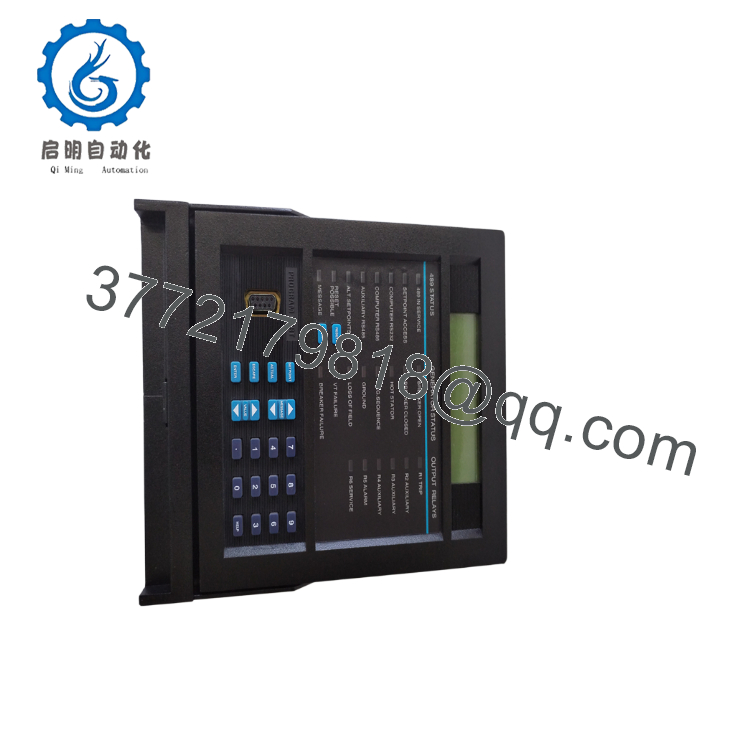

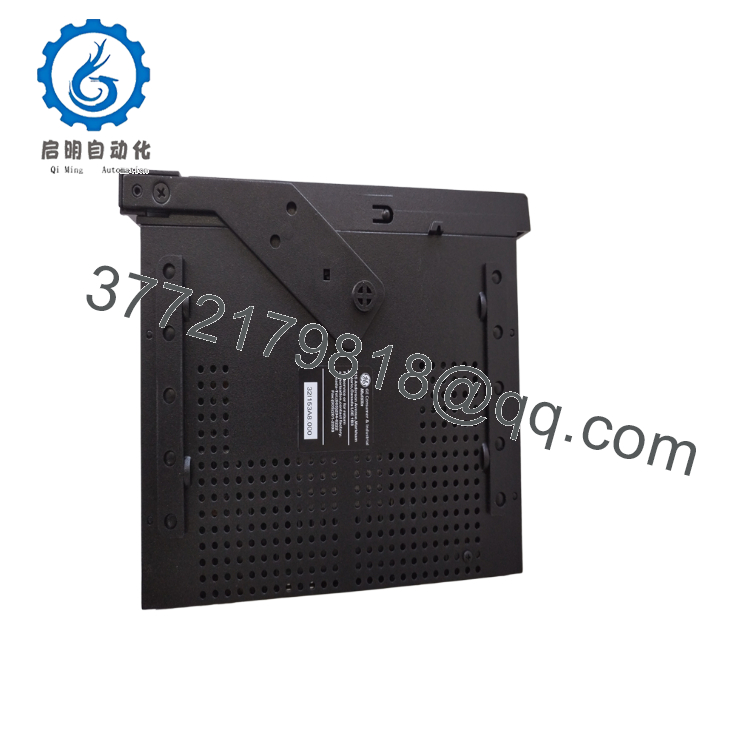

The GE 489-P5-HI-A20-T is a Multilin 489 generator management relay with 5A CT inputs, high-range control power, analog outputs, and enhanced communications. It protects synchronous generators in power generation facilities.
This configuration supports detailed generator monitoring and integration with plant control systems via analog signals and Ethernet. Match your generator parameters and existing system interfaces exactly when replacing units.
5. Troubleshooting Quick Reference
| Symptom | Possible Cause | Relevance to this Part | Quick Check Method | Recommendation |
|---|---|---|---|---|
| No display or power | Control voltage incorrect | ✅ High | Measure at power terminals | Confirm HI range supply |
| False reverse power trip | CT polarity or settings error | ✅ High | Verify CT wiring direction | Correct polarity and test under load |
| Analog outputs incorrect | Scaling parameters wrong | ✅ High | Check loop power and output assignments | Adjust scaling factors in software |
| Loss of field detection issues | Voltage transformer problems | ✅ Medium | Verify VT inputs and settings | Inspect VT circuits |
| Communication dropouts | Network configuration | ✅ Medium | Test Ethernet connectivity | Verify IP settings and switch ports |
Export all fault reports and waveform data for detailed analysis.
- 489-P5-HI-A20-T
- 489-P5-HI-A20-T
6. Frequently Asked Questions (FAQ)
What do the options P5-HI-A20-T represent? P5 = 5A phase current inputs, HI = high control power, A20 = 4-20 mA analog outputs, T = enhanced Ethernet/display features.
Is the 489 designed specifically for generators? Yes. It provides generator-specific protection elements such as loss of excitation, reverse power, and inadvertent energization.
Does this relay include Ethernet connectivity? Yes, the T option enables enhanced Ethernet communications for integration into modern SCADA and DCS networks.
Can I use EnerVista software? Yes. EnerVista 489 Setup software is the standard tool for configuration, monitoring, and retrieving event data.
Are these relays still supported? The 489 series is a field-proven platform with available spares and support for ongoing installations and maintenance.
What testing is completed on surplus units? Power supply checks, CT/VT input testing, protection function simulation, analog output calibration, and communication verification. Documentation provided.
What is the biggest risk during replacement? Incorrect CT polarity or generator parameter settings. Photograph all existing screens and record protection settings. Verify all wiring, especially CTs and VTs, match the old unit. Test protection functions with the generator offline where possible before synchronization.
