GE 531X304IBDANG1 LAN I/O Control Board

Description

3. Key Technical Specifications

4. Product Introduction & Supply Chain Strategy

The GE 531X304IBDANG1 serves as a vital communication and I/O bridge within the DC300 drive ecosystem, facilitating LAN connectivity and hardware signal termination. It manages critical data flow between the drive’s primary control processor and peripheral feedback devices, ensuring precise motor control in demanding industrial environments.

From a Total Cost of Ownership (TCO) perspective, procuring this module as New Surplus is a calculated risk-mitigation strategy. Because this series is no longer in active production, relying on refurbished boards introduces the risk of electrolyte leakage or trace corrosion. Securing a factory-original surplus unit ensures the full 15-year component lifespan, effectively serving as an insurance policy against the massive costs associated with a failed drive line.

5. Installation & Configuration Guide

• Stage 1: Pre-Installation (Prep & Safety): Execute a full lock-out/tag-out (LOTO) on the drive cabinet. Verify zero energy at the terminals. Wear a grounded ESD wrist strap before opening the protective housing. Document all current wiring positions and any jumper settings on the existing board.
• Stage 2: Removal: Carefully disconnect all ribbon cables and screw terminal blocks. Avoid pulling on the wires themselves; use a small flat-head screwdriver to loosen terminals. Unscrew the mounting hardware and extract the board horizontally to avoid scraping against the chassis.
• Stage 3: Installation (Clone & Seat): Compare the jumper configurations on the new 531X304IBDANG1 with your documented settings. Replicate them exactly. Align the board with the standoffs and secure the mounting screws. Reconnect all communication cables and I/O blocks firmly.
• Stage 4: Power-On & Testing: Clear the cabinet of tools and restore logic power. Observe the drive’s diagnostic display for LAN communication errors. Verify that the I/O signals are reaching the controller by checking the status LEDs or software registers before restarting the motor.

531X304IBDANG1

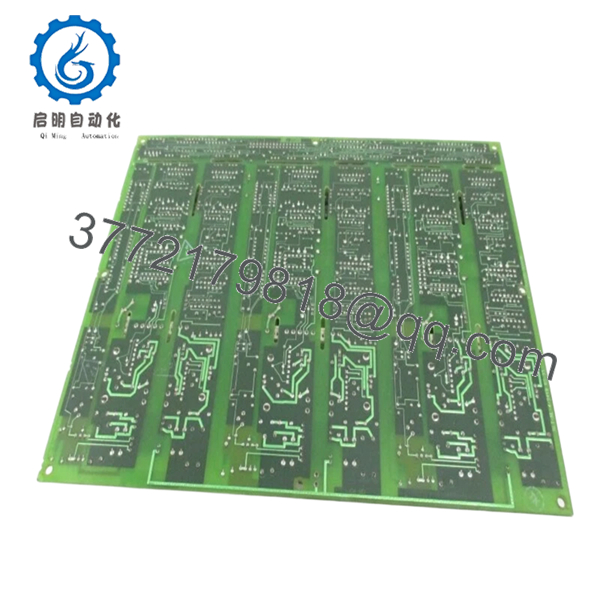

531X304IBDANG1

6. Firmware/Software Versions & Upgrade Notes

The 531X304IBDANG1 is largely hardware-driven, but it must be compatible with the drive’s executive software version. Ensure your DC300 firmware supports the “G1” revision of this board to avoid handshake timeouts. Swapping hardware with different revision levels without verifying software compatibility can lead to intermittent “Link Failure” alarms. We recommend maintaining the current stable firmware version during the hardware swap rather than upgrading simultaneously, as this isolates variables during troubleshooting.

7. Frequently Asked Questions (FAQ)

Is this board actually new, or just cleaned up?

This is a New Surplus unit. It has never been energized in a production environment. Unlike refurbished boards that often have “hidden” heat damage from years of service, this module features fresh capacitors and pristine solder joints, providing the reliability of a new OEM part.

Why is the price higher than the ones I see on auction sites?

Auction sites typically list “pulled” or “as-is” parts from decommissioned plants. Those parts carry a high risk of ESD damage or fatigue. Our price reflects the cost of sourcing genuine, unused inventory and performing the technical verification needed to guarantee it works the moment you install it.

Can I hot-swap this board while the drive is powered?

Absolutely not. Pulling or inserting the 531X304IBDANG1 while the backplane is energized can cause electrical arcing that may destroy the drive’s main processor. Always isolate the power fully before replacement.

Does this module come with a warranty?

Yes, we provide a comprehensive 1-year warranty on all New Surplus GE modules. Because we verify the condition of the hardware, we can offer the same protection you would expect from a factory-direct purchase.

Will I need to reprogram my drive after installing this?

Since this is an I/O and LAN interface board, it does not typically hold the drive’s application parameters. However, you must ensure the jumpers are set correctly to match your network ID and signal types, or the drive will not recognize the new hardware.
