Key Technical Specifications
- Manufacturer: GE Multilin
- Product family: 745 Transformer Protection System
- Application: Transformer protection and management
- Configuration: 3-winding relay platform
- Mounting: Draw-out relay chassis
- Operating temperature: -40°C to +60°C
- Storage temperature: -40°C to +80°C
- Ground current inputs: 5 A
- Manual reference: GEK-106635H
- Coating: Harsh-environment coating available on specified builds
- Weight: 8.4 kg, on referenced configuration
- Obsolescence status: Legacy platform, verify replacement compatibility before ordering
Product Introduction
GE 745-W3-P5-G1-H I-A is a Multilin 745-series transformer protection relay used for transformer protection and management in utility and industrial power systems. It handles multi-winding transformer applications and belongs to GE’s legacy 745 protection platform.
This unit is selected when the installed base already uses the 745 family. The main buying point is compatibility with existing protection schemes, but the buyer should verify exact wiring, firmware, and option code match before replacement.
Troubleshooting Quick Reference
| Symptom | Possible Cause | Relevance to this Part | Quick Check Method | Recommendation |
|---|---|---|---|---|
| No display or no front-panel LEDs | Control power loss, blown fuse, or failed relay supply | ✅ High | Measure supply voltage at the relay input terminals with a multimeter | Check station control power, fuses, and wiring before replacing |
| Relay boots but trips on startup | Settings mismatch, firmware mismatch, or corrupted configuration | ✅ High | Read event log and settings file from the relay | Compare the replacement unit’s firmware and settings to the original |
| Communication loss to SCADA | Network setup issue, wrong protocol settings, or failed comms board | ✅ Medium | Check port LEDs, cabling, and device address settings | Verify protocol and addressing before declaring the relay failed |
| Incorrect transformer alarms | CT polarity issue, wrong ratio, or configuration error | ✅ High | Compare CT wiring and settings against the original relay file | Recheck wiring and protection settings first |
| False differential trip | CT mismatch, wiring error, or phase rotation issue | ✅ High | Perform secondary injection and verify phase mapping | Do not replace the relay until CT circuits are confirmed |
| Unit is completely dead after swap | ESD damage or wrong control voltage | ✅ Medium | Measure incoming voltage and inspect for visible damage | Confirm supply rating and handling procedure before installation |
Contact technical support with photos of the front panel, wiring terminals, and event logs if the fault remains unclear.

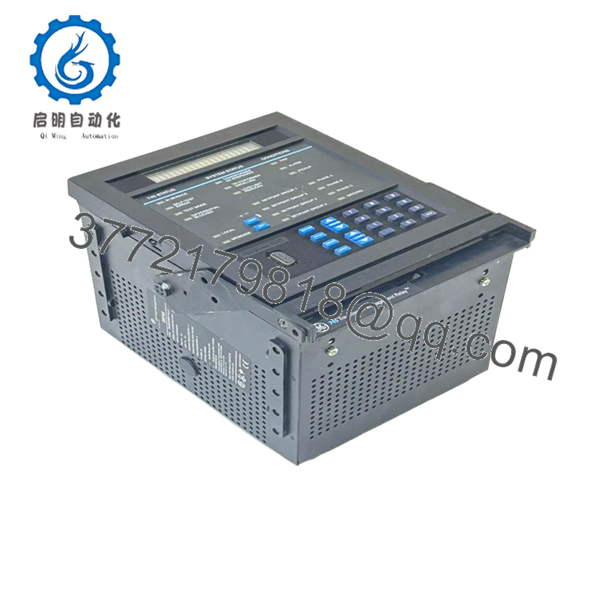

- 745-W3-P5-G1-H I-A

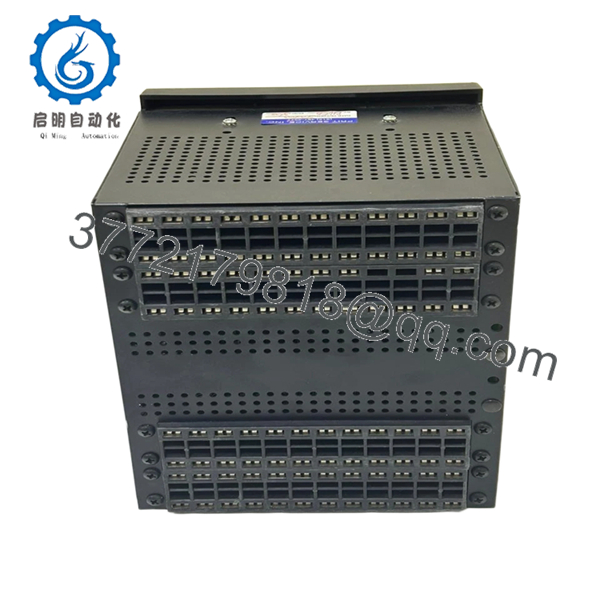

- 745-W3-P5-G1-H I-A
Frequently Asked Questions
Can I use this as a direct replacement for my existing 745 relay?
Usually yes, but only if the option code, wiring, and firmware match your installed system. On legacy protection relays, one small code difference can change I/O or communications behavior.
Is this unit hot-swappable?
No. Kill control power first. Pulling a protection relay under power risks backplane damage and can create a nuisance trip.
Does it keep settings during a swap?
No assumption should be made here. Save the existing settings file and take photos of the current configuration before removal. That step saves time if the replacement ships with factory defaults.
Why is this cheaper than factory-new stock?
Because this is legacy inventory or surplus stock, not a current production unit. That lowers cost, but it also means buyers should verify exact compatibility before installing.
What condition is this unit in?
Listed as New Surplus / Tested. That means it is not presented as factory-sealed new production, and the buyer should expect a pre-owned or surplus-origin unit that has been checked before shipment.
Is the 745 series still supported?
The 745 is a legacy platform, so support depends on the exact serial number, firmware, and spare-part availability. For critical systems, confirm your site’s acceptance requirements before ordering.
What should I check before installing one?
Match the model code, control power, CT/VT wiring, communication settings, and any DIP or jumper positions from the original unit. A photo set from the old relay prevents most installation mistakes.
