GE DS200DSPCH1ACA Mark V Series DSPC Board

Description

3. Key Technical Specifications

4. Product Introduction & Supply Chain Strategy

The GE DS200DSPCH1ACA serves as the primary computational engine within the GE Mark V Speedtronic turbine control system. It executes complex mathematical algorithms required for real-time fuel regulation, speed control, and protection logic in heavy-duty gas and steam turbines. This board specifically handles high-frequency signal processing that standard I/O modules cannot manage, ensuring stable combustion and grid synchronization.

Procuring this module as New Surplus is a critical strategy for mitigating Total Cost of Ownership (TCO). Since the Mark V series is in the “Mature/Obsolete” phase of its lifecycle, relying on refurbished units introduces unacceptable risk; aged capacitors in used boards frequently fail under thermal stress. Securing New Surplus inventory bypasses OEM lead times—which often exceed 24 weeks for legacy components—and provides an immediate insurance policy against catastrophic plant outages.

5. Installation & Configuration Guide

Stage 1: Pre-Installation (Prep & Safety)

Begin by performing a full system backup and initiating a controlled turbine cooldown. Implement lock-out/tag-out (LOTO) procedures on the control cabinet power supply. Wear a grounded ESD wrist strap connected to the cabinet frame. Document all cable positions and take high-resolution photos of the existing DS200DSPCH1ACA, paying close attention to jumper settings (J1 through J10).

Stage 2: Removal

Loosen the captive screws securing the board to the Mark V rack. Gently disconnect the ribbon cables from the front of the card. Grasp the board by the edges or the injector/ejector handles and pull straight out to avoid bending the sensitive backplane pins. Place the old module immediately into an anti-static bag.

Stage 3: Installation (Clone & Seat)

Review the jumpers on the new DS200DSPCH1ACA. Replicate the positions from the original board exactly, as these define the node address and signal scaling. Align the new board with the rack guides and push firmly until the backplane connectors seat fully. Reattach all ribbon cables and tighten the mounting screws.

Stage 4: Power-On & Testing

Restore power to the control core. Observe the onboard LEDs; a solid green “RUN” light indicates the DSP has initialized. If the “FAULT” LED illuminates, check the cable seating. Use the operator interface to verify that the board is communicating on the IONET and perform a “Logic Download” if required by your specific system configuration.

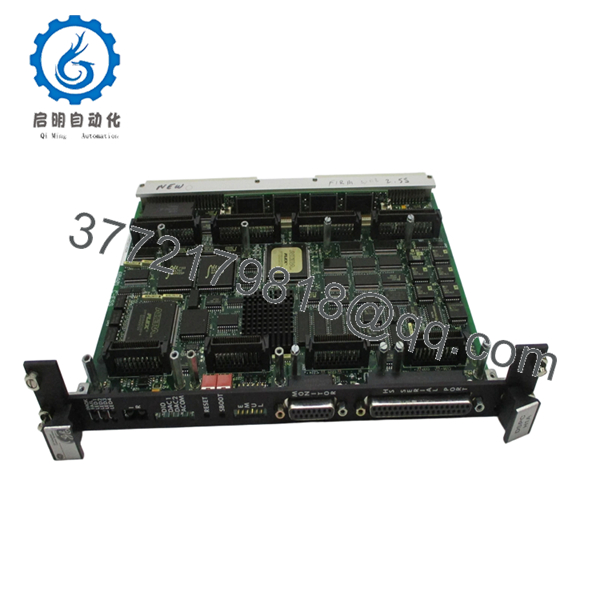

DS200DSPCH1ACA

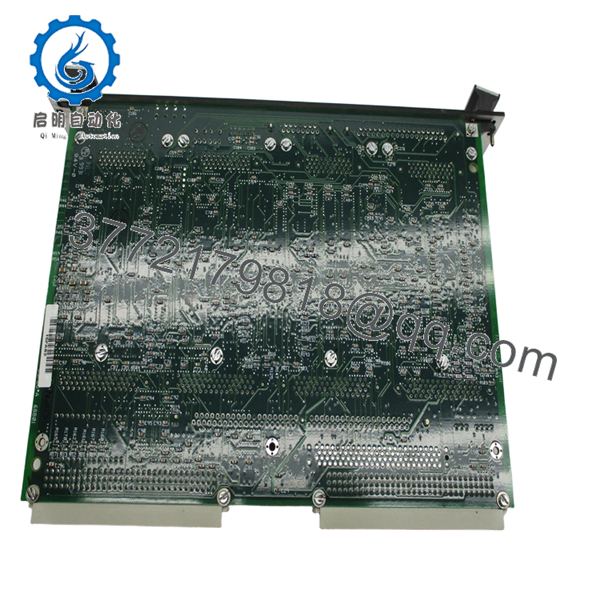

DS200DSPCH1ACA

6. Firmware/Software Versions & Upgrade Notes

• Recommended Firmware: This board typically ships with firmware version 2.0 or higher. Ensure your PROM chips (locations U6 and U7) match the version currently running in your redundant cores (, , or ).
• Compatibility: Version H1ACA is backward compatible with most Mark V H-version backplanes, but it may require specific configuration file updates in the processor or HMI.
• Warning: Avoid mixing firmware versions across redundant cores. A firmware mismatch between DSP boards can trigger a “Voter Disagreement” fault, leading to a forced turbine trip.

7. Frequently Asked Questions (FAQ)

How do I know this board is actually “New Surplus” and not used?

We verify every DS200DSPCH1ACA through a multi-point inspection. Unlike used boards, our surplus inventory shows zero witness marks on the mounting holes, no dust accumulation in the connectors, and original solder luster. These units come from climate-controlled spare parts reserves, not decommissioned plants.

Is this a direct replacement for older DS200DSPC revisions?

Yes, the “H1ACA” suffix indicates a specific hardware revision level. In the GE Mark V ecosystem, later revisions are generally backward compatible with earlier versions (like G1AAA), but you must verify that your specific site configuration files support the newer hardware features.

Does the board come with the PROM chips installed?

Typically, these boards are supplied without the site-specific PROM chips. You should migrate the chips from your existing board to the new one to ensure the software logic remains identical. Always use a chip extraction tool to prevent pin damage.

Why is New Surplus better than a cheaper refurbished board?

Refurbished boards are essentially used parts with a “clean and test” label. They have already endured thousands of thermal cycles, which degrades the internal layers and electrolytic capacitors. A New Surplus board offers the full 15-year design life, whereas a refurbished unit is a “lottery” that could fail in months, costing you thousands in downtime.

What is the warranty on this legacy part?

We provide a comprehensive 1-year warranty on all New Surplus GE Mark V components. Because we are confident in the “New” status of the hardware, we offer protection that far exceeds the 30 or 90-day windows typically found in the secondary market.
