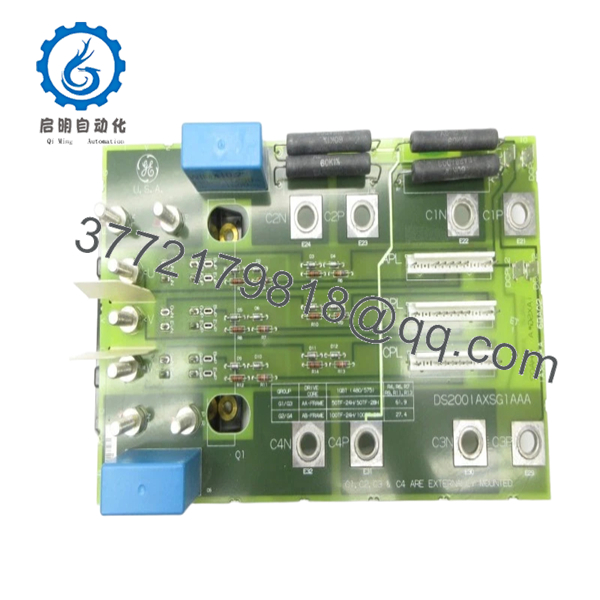

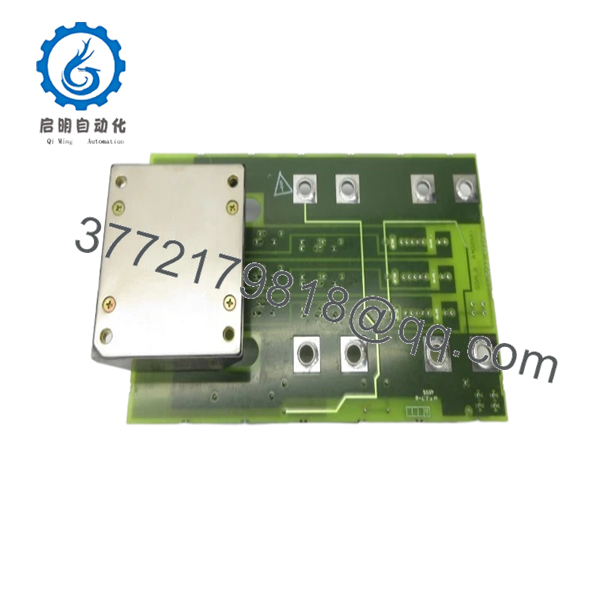

GE DS200IAXSG1AAA IGBT Snubber Board

Description

3. Key Technical Specifications

The board limits voltage transients during switching to protect IGBT modules and maintain system stability.

4. Product Introduction & Supply Chain Strategy

The GE DS200IAXSG1AAA is an IGBT snubber board used in Mark V turbine control systems. It suppresses voltage transients (dv/dt) during IGBT switching events, protecting power devices and stabilizing inverter operation across startup, shutdown, and steady-state conditions.

From a supply-chain perspective, this is a discontinued control board with limited global availability. Lead time variability is high, and failure directly impacts turbine availability. A structured last-time-buy strategy combined with buffer stock reduces stock-out incidents. New Surplus units eliminate the latent failure risks seen in refurbished boards, delivering lower Total Cost of Ownership (TCO) over the asset lifecycle.

DS200IAXSG1AAA

DS200IAXSG1AAA

5. Installation & Configuration Guide

Stage 1: Pre-Installation (Prep & Safety)

• Execute full lock-out/tag-out (LOTO) on drive system.
• Use ESD wrist strap and grounded tools.
• Photograph wiring, connector positions, and adjustment screw settings.
• Verify correct revision (IAXS functional code alignment).

Stage 2: Removal

• Disconnect stab-on connectors carefully—do not pull wires.
• Loosen mounting hardware.
• Extract PCB straight out to avoid stressing connectors.

Stage 3: Installation (Clone & Seat)

• Replicate voltage selection screw settings exactly (U/V/W terminals).
• Align connectors and install board evenly.
• Reconnect all terminals securely—loose connections increase dv/dt stress.

Stage 4: Power-On & Testing

• Reapply power and monitor DC bus behavior.
• Check for abnormal voltage spikes or noise.
• Validate inverter switching stability via diagnostics.
• Confirm no overvoltage alarms or IGBT faults.

6. Firmware/Software Versions & Upgrade Notes

• Firmware Dependency: No onboard firmware; behavior tied to system-level control logic.
• Compatibility Note: Snubber performance must align with gate driver timing—mismatches can increase switching stress.
• Upgrade Risk: Changing control firmware without validating snubber behavior can cause IGBT overstress.
• Best Practice: Keep system parameters unchanged during replacement unless full validation is performed.

7. Frequently Asked Questions (FAQ)

Q1: Is this unit truly new if it’s discontinued?
Yes. This product is a Brand New Surplus unit. It is not used, not pulled from a decommissioned plant, and not refurbished. It retains original OEM integrity with zero wear.

Q2: Why is this more expensive than refurbished options?
Refurbished snubber boards often contain aged capacitors. These degrade under pulse duty and can fail under load. A failure here risks damaging IGBTs—far more costly than the board itself.

Q3: How critical is this module?
This is an A-class critical spare. Failure can lead to inverter instability or IGBT damage. Maintain 1–2 units as buffer stock.

Q4: What inventory strategy do you recommend?

• Min/Max: 1 / 2 units per drive system
• Strategy: Last-time-buy due to EOL
• Optimization: Cross-site sharing + vendor consolidation
• Focus: Reduce lead time variability exposure

Q5: Can this board be hot-swapped?
No. It interfaces directly with high-energy circuits. Always power down before replacement.

Q6: What lifecycle risks should I plan for?
The product is fully discontinued. Global inventory is shrinking. Delayed procurement increases cost and downtime risk.

Q7: What warranty and QC process are included?
Each unit includes 12month warranty, serial traceability, insulation and functional testing, and full QC documentation with ESD-safe packaging.
