Key Technical Specifications
- Manufacturer: GE Boards & Turbine Control (GE Vernova)
- Series: Mark V DS200 AC2000I
- Function: Power supply interface and IGBT gate‑drive board
- Application: Mark V turbine‑control drive systems (e.g., excitation, static converter, or motor drives)
- Features: 8 onboard fuses for IGBT‑stage overcurrent protection
- Mounting: Plug‑in DS200 backplane card
- Typical environment: Industrial control room, requires good bus‑bar connections and cooling
- Static sensitivity: Static‑sensitive PCB; must be handled with ESD precautions
- Obsolescence status: Legacy Mark V DS200 component; no new‑production GE stock
- Weight: Board‑level, under 1 kg (exact depends on chassis)
Product Introduction

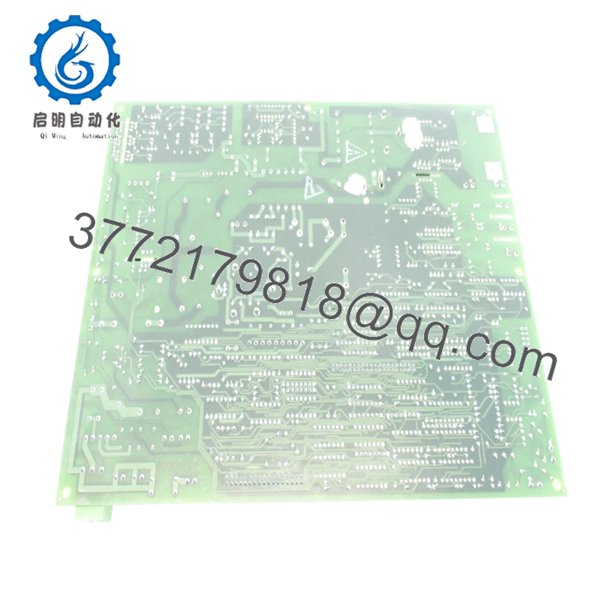

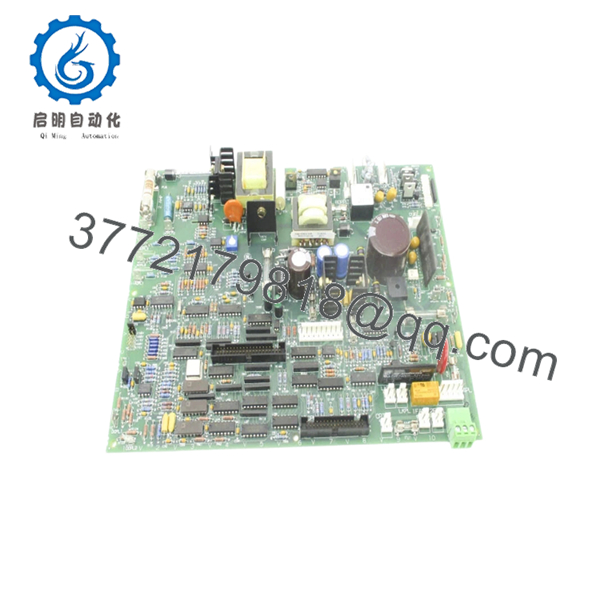

GE DS200IMCPG1CGC is a power supply interface and IGBT gate‑drive board used in GE Mark V DS200 AC2000I drive and excitation systems. It conditions and distributes power to the IGBT stages and provides the interface between the drive‑control card and the high‑voltage switching stack.
This board is typically replaced as an identical unit when the original fails or shows degraded IGBT‑stage behavior. The key advantage is matching the exact gate‑drive timing and protection layout of the existing Mark V drive; the caveat is that the board is static‑sensitive and must be handled carefully at installation.
Troubleshooting Quick Reference
| Symptom | Possible Cause | Relevance to this Part | Quick Check Method | Recommendation |
|---|---|---|---|---|
| No DC‑bus power or IGBTs not firing | Failed power supply stage or blown fuses | ✅ High | Measure DC‑bus voltage and check each of the 8 onboard fuses with a multimeter | Replace fuses only if the cause is clear; uncontrolled shorts are likely to blow them again |
| IGBT overcurrent trips | Shorted IGBT, bad gate drive, or wiring fault | ✅ High | Inspect DC‑bus and motor/connection cables; verify gate‑drive signals with an oscilloscope | Do not repeat high‑current tests without finding the root cause |
| Erratic or intermittent trips | Loose bus connection or overheating board | ✅ Medium | Check bolted bus connections and monitor board temperature under load | Tighten and clean all joints; watch for hot spots |
| No communication from the drive | Wrong firmware or control‑card mismatch | ✅ Medium | Confirm DS200IMCPG1CGC revision and control‑card firmware match the original | Do not assume all “G1C” boards are interchangeable; trace‑code and firmware matter |
| Drive faults immediately after swap | ESD damage or wrong orientation | ✅ High | Inspect PCB for burns or damaged traces; verify connector orientation | Always fit boards grounded and using ESD protection; orientation errors can short the bus |
| Drive runs but overheats rapidly | Mismatched gate‑drive timing or margin loss | ✅ Medium | Compare new and old board behavior with oscilloscope snapshots | When in doubt, keep the old board as a reference and contact support with waveforms |
If the fault pattern still points at DS200IMCPG1CGC, contact technical support with photos of the board, DC‑bus connections, and any drive‑fault logs.
- DS200IMCPG1CGC
- DS200IMCPG1CGC
Frequently Asked Questions
Can I plug DS200IMCPG1CGC into any Mark V DS200 rack?
No. It belongs in specific AC2000I drive‑related slots; blind insertion into the wrong rack can cause shorts or protective trips. Match the exact slot and wiring diagram from your Mark V build.
Is this board hot‑swappable?
No. The DC‑bus and IGBT stages must be de‑energized before removing or inserting the DS200IMCPG1CGC. Hot‑swapping can arc the bus or damage gate‑drive components.
Will this board keep my drive running the same as before?
Only if the revision, firmware‑linked behavior, and wiring are identical. Even small differences in gate‑drive timing or margin settings can change overcurrent or thermal trip behavior, so it is safer to treat the control program as a matched pair.
Why is this listed as New Surplus instead of factory‑new?
Because DS200IMCPG1CGC is a legacy Mark V DS200 component; genuine new‑stock units come from surplus or decommissioned plants, not from GE’s current production line. That lowers the price but means you must verify the exact variant before ordering.
What should I check before installing this board?
- Confirm the exact model and revision against the old unit.
- Inspect DC‑bus and gate‑drive wiring for damage or corrosion.
- Verify that all bus connections are tight and free of debris.
- Use a grounded wrist strap and avoid touching conductive traces.
Is this board still repairable?
Yes, some third‑party vendors still repair DS200IMCPG1CGC, but repairability depends on the exact fault and availability of discrete IGBT/driver parts. For critical drives, treating the board as a non‑repairable spare and keeping a matched unit on site is often more reliable.
Does this board require its own firmware upload?
No. The DS200IMCPG1CGC is a passive power and gate‑drive interface; firmware and logic live in the Mark V control‑card and drive‑control software. You must, however, ensure the control program expects the same timing and status behavior as the original board.
