GE DS200SLCCG1AEG Mark V LAN Communication Card

Description

3. Key Technical Specifications

Parameter	Value
Manufacturer	General Electric
Model	DS200SLCCG1AEG
Functional Acronym	SLCC
Product Type	LAN Communication Card
Series	GE Mark V Speedtronic
Manual Reference	GEI-100162
Communication Networks	ARCNET, DLAN
Processing Core	Integrated LAN Control Processor (LCP)
Memory Type	Dual EPROM cartridges + dual-port RAM
Communication Circuits	Isolated and non-isolated
PCB Coating	Standard coating
Revision Structure	Functional A/E, Artwork G
User Interface	16-key alphanumeric programmer support
Typical Applications	Turbine drives and exciters
Product Status	Legacy / Obsolete

DS200SLCCG1AEG belongs to the GE Mark V family and functions as a LAN communications interface board. Similar G1-series SLCC hardware supports both DLAN and ARCNET communications while using an onboard LAN Control Processor architecture.

Verify exact suffix compatibility before installation. GE revision letters can indicate hardware, firmware, or artwork changes that appear minor on paper but create field issues.



4. Product Introduction

GE DS200SLCCG1AEG is a LAN Communication Card used in GE Mark V Speedtronic drive and exciter systems. The board acts as the communication interface between host control hardware and plant communication networks. It supports both DLAN and ARCNET network architectures through an integrated LAN Control Processor.

In field deployments of older GE turbine systems, SLCC boards commonly remain in service for decades. Plants usually replace the board rather than redesign communication architecture because redesign work introduces engineering changes, shutdown exposure, and additional validation requirements.

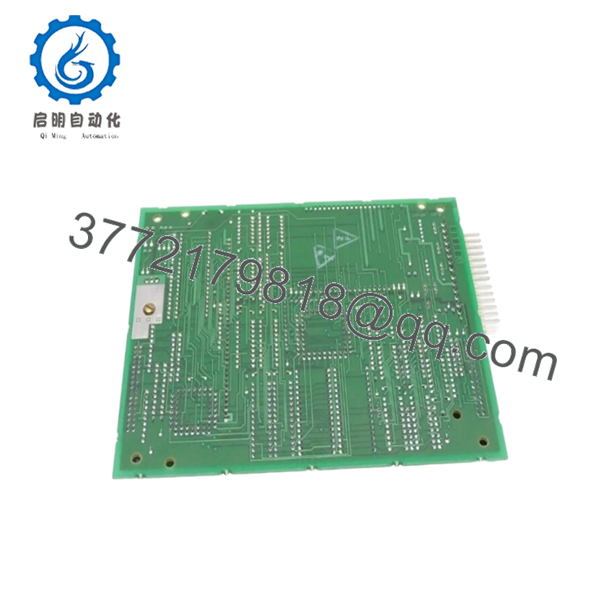

DS200SLCCG1AEG

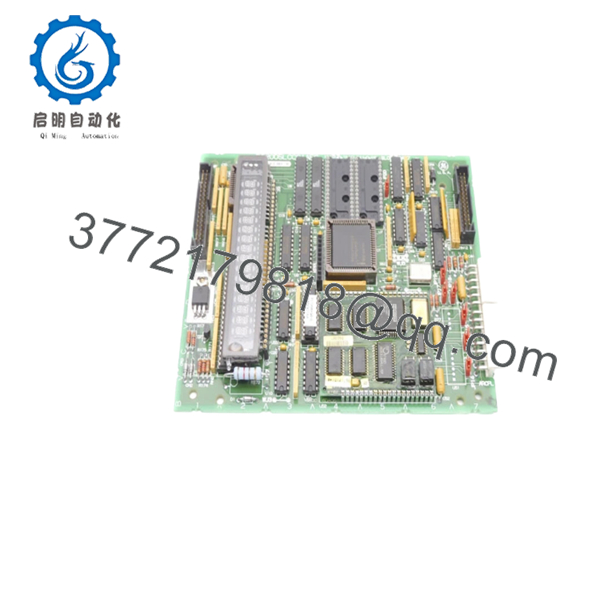

DS200SLCCG1AEG



5. Installation & Configuration Guide

Stage 1: Pre-Installation Preparation (Estimated: 10 minutes)

⚠️ Safety First: Notify operations. Confirm process shutdown status. Apply lockout/tagout procedures and isolate cabinet power. Wait 5 minutes minimum for capacitor discharge.

Tools Required

• ESD wrist strap
• PH1 screwdriver
• Fluke 115 multimeter
• Wire labels
• Smartphone for photos
• Flashlight

Data Backup

1. Export configuration data.
2. Record communication settings.
3. Photograph connector locations.
4. Document jumper settings.
5. Record network addressing.

I’ve watched people skip documentation because they were “only replacing a communication card.”

An hour later they were guessing cable placement.

Stage 2: Removing the Old Module (Estimated: 5–10 minutes)

1. Remove cabinet access panels.
2. Label every cable.
3. Disconnect connectors carefully.
4. Remove retention hardware.
5. Pull the board straight out.

⚠️ Never twist or rock the board.

Older Mark V backplane connectors can develop intermittent faults after mechanical damage.

Inspect:

• Bent pins
• Dust contamination
• Heat discoloration
• Oxidation
• Connector wear

⚠️ Keep the removed module until startup verification is complete.

Stage 3: Installing the New Module (Estimated: 10 minutes)

1. Wear ESD protection.
2. Verify DS200SLCCG1AEG exactly matches.
3. Configuration Clone (Crucial): Copy all jumper settings.
4. Insert board evenly.
5. Verify complete seating.
6. Reconnect communication and field wiring.

Self-check:

• Jumpers copied
• Wiring secured
• Connectors seated
• Hardware locked

❗This is the most common rookie mistake, but experienced technicians do it too.

Take pictures before removing anything.

Stage 4: Power-On & Testing (Estimated: 10–15 minutes)

Pre-Power Check

Use a multimeter to check for rail shorts.

Power-up procedure:

1. Power rack only.
2. Observe startup indicators.
3. Connect engineering software.
4. Verify network operation.
5. Confirm communication paths.
6. Run dry I/O tests.

⚠️ Troubleshooting Note:

If communication alarms appear immediately after startup, investigate firmware and revision compatibility first.

I have seen technicians replace healthy boards because nobody checked revision differences.

Quality Verification SOP

1. Inbound Inspection & Traceability

• OEM packing review
• Serial verification
• Anti-counterfeit checks
• Inspection for scratches, corrosion, UV yellowing, and rework marks
• Accessory audit

2. Live Functional Testing

Test environment:

• Genuine GE Mark V test rack or simulator

Testing:

• Power-up verification
• Communication handshake testing
• ARCNET/DLAN checks
• I/O simulation
• Continuous runtime exceeding 24 hours with thermal monitoring

Official test reports generated.

3. Electrical Parameter Testing

• 500 V Megger insulation testing (>10 MΩ target)
• Ground continuity verification
• Hipot testing where applicable

4. Firmware and Configuration Verification

• Firmware recording
• Revision tracking
• Jumper documentation

5. Final QC and Packaging

• QC sign-off
• ESD packaging
• Bubble protection
• Heavy-duty carton packaging
• QC labels with inspection date

Test videos and photos available upon request.

Technical Pitfall & Survival Guide

❗ Firmware Revision Mismatch

Document original firmware and revision details.

I saw a communication board replacement generate network faults for two days.

The issue was not hardware failure.

Firmware changed slightly between revisions.

❗ DIP Switch / Jumper Misconfiguration

Take photos before removal.

I cannot stress this enough.

Factory defaults often differ from field configurations.

❗ Terminal and Connector Assumptions

Even within GE DS200 families, connector definitions can shift.

Always verify drawings.

Do not wire from memory.

❗ Power Budget Errors

Leave a 20% spare power margin.

Communication hardware gets ignored during power calculations more often than people admit.

❗ Electrostatic Discharge

I watched an engineer handle a board during dry winter weather without a strap.

Power-up produced smoke immediately.

Several thousand dollars disappeared in less than a second.

Keep these checks in mind and you’ll save yourself 90% of typical rework time.



6. Frequently Asked Questions (FAQ)

Q1: Can I hot-swap this module?

No.

Mark V systems were not designed for live insertion of communication cards. Pulling the board under power can interrupt network operation and damage hardware.

Kill power first.

Q2: Is DS200SLCCG1AEG obsolete?

Yes.

This is a legacy Mark V product and active factory production ended years ago. Current inventory usually comes from surplus or tested refurbished stock.

Q3: Is inventory genuinely new?

Sometimes.

“New Original” often means unused surplus inventory held in storage after production ended.

Request actual product photos before issuing a purchase order.

Q4: What communication protocols does the board support?

The G1-series communication hardware supports ARCNET and DLAN networks used within GE drive and exciter systems.

Q5: Will replacing this board erase control logic?

Normally no.

Application logic resides elsewhere in the control architecture.

Still create backups.

No experienced engineer skips backups before touching communication hardware.

Q6: Why are surplus prices lower than OEM list pricing?

You are generally buying excess inventory, plant spare stock, or tested legacy inventory.

You are paying for availability rather than current production.

Q7: What warranty is typical?

Most tested inventory includes a 12-month warranty, although terms vary by supplier and stock condition. Verify warranty language before purchase order approval.
