Key Technical Specifications
| Parameter | Value |
|---|---|
| Model | DS200TBCBG1AAA |
| Brand | GE |
| Series | Speedtronic Mark V (DS200) |
| Product type | Analog I/O / RTD Input Termination Board |
| Primary application | Gas/steam turbine analog sensor and actuator termination |
| Analog input channels | 32 channels |
| Analog output channels | 32 channels |
| Signal range | 4–20 mA, 0–10 V, or other configurable ranges |
| Signal conditioning | Built-in conditioning for sensor/actuator signal conversion |
| Accuracy | High-precision measurement and control |
| Operating temperature | −40°C to +70°C |
| Humidity | 5% to 95% (non-condensing) |
| Physical dimensions | 290 mm × 80 mm × 40 mm |
| Weight | 0.32 kg |
| Connectors | Two double-stack terminal strips; 5 vertical pin cable connectors; 2 vertical pin header connectors; 9-pin male serial connector; two COREBUS connectors (JAI, JAJ) |
| On-board components | Resistor networks, relays, transistors, 20+ MOVs, 12+ jumper switches, capacitors, resistors |
| Mounting | Drilled at corners and long edges for mounting hardware; conductive ringed holes for grounding |
| System architecture | Compatible with Mark V Simplex and TMR (triple modular redundant) |
| Location in cabinet | Typically in <R5> core |
| Condition | New Surplus / Tested |
Product Introduction

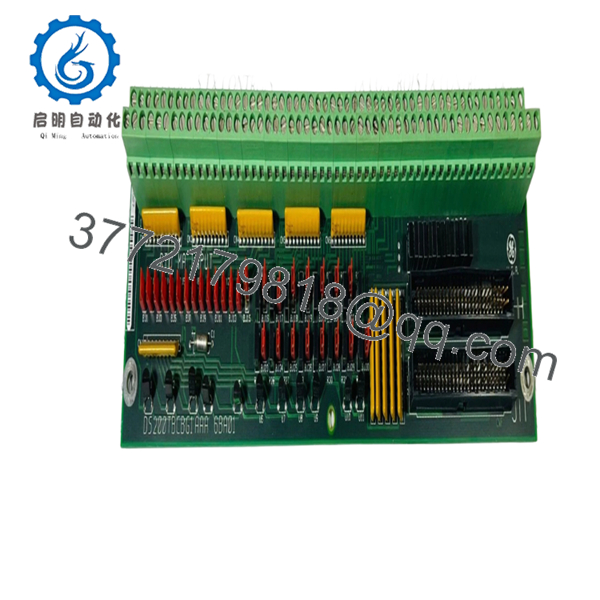

GE DS200TBCBG1AAA is a Speedtronic Mark V analog I/O terminal board used in gas and steam turbine control systems. It terminates 32 analog input channels and 32 analog output channels, connecting temperature, pressure, vibration, and fuel flow sensors as well as actuators to the Mark V controller.
This board is chosen when replacing a failed analog termination card in a Mark V cabinet. Its built-in signal conditioning and high-precision conversion support accurate monitoring of critical turbine parameters while meeting industrial environmental ratings.
- DS200TBCBG1AAA
Troubleshooting Quick Reference
| Symptom | Possible Cause | Relevance to this Part | Quick Check Method | Recommendation |
|---|---|---|---|---|
| RTD/temperature readings stuck or erratic | Sensor wiring fault, open circuit, or terminal fault | ❌ Low | Measure resistance at terminals; check sensor continuity and shield grounding | Fix wiring/sensor first; retest before replacing board |
| No analog output signal | Output channel fault or config mismatch | ✅ High | Measure output voltage/current at terminal; verify channel enable in software | Replace board if output remains dead after config check |
| Multiple channels fail together | Backplane power or common ground fault | ❌ Low | Measure backplane voltage at slot; check common ground continuity | Address power/ground before blaming the board |
| Single channel out of range | Terminal trace fault or connector issue | ✅ Medium | Inspect connector and trace; swap to known-good channel | Reseat or replace if channel fault persists |
| Board fails to power up (no LEDs) | Slot power failure or board fault | ✅ High | Measure 24 V DC at slot pins; check fuse/PSU | Replace board only after confirming slot power |
| Intermittent alarms after swap | Dirty connectors or poor seating | ✅ High | Clean edge connector; reseat firmly; check for bent pins | Reseat and verify; clean contacts if needed |
| COREBUS communication fault | Backplane or COREBUS connector issue | ✅ Medium | Inspect JAI/JAJ connectors; reseat board; check COREBUS LEDs | Replace board if COREBUS fault persists after reseating |
⚠️ ESD Warning: This is a static-sensitive board. Wear a grounded wrist strap and handle in an ESD-safe area. I once saw a $2,000 card let the magic smoke out after a tech handled it in winter without a strap.
⚠️ Wiring Warning: Don’t wire from memory. Pinouts can change between revisions. Always check the manual and verify terminal assignments before connecting sensors or actuators.
Contact technical support with photos of the board, terminal wiring, LED status, and controller diagnostic logs if the fault is unclear.
Frequently Asked Questions
Q: Is DS200TBCBG1AAA a direct replacement?
A: Yes within the same Mark V cabinet generation, but verify board revision and jumper settings. Different revisions can have altered pinouts or terminal assignments.
Q: Can I hot-swap this terminal board?
A: No. Power down the rack before swapping. Hot-swapping can damage the backplane or cause signal spikes that trip protection logic.
Q: Will my configuration stay intact after replacement?
A: The board itself does not store your full project config. The config lives in the controller/engineering station. Back up your project and verify channel mapping after install. Take a clear photo of the old board’s jumpers before removal and mirror the exact configuration on the new unit.
Q: What condition is this part in?
A: This listing is New Surplus / Tested. It is not factory-sealed OEM fresh, but it should pass visual inspection and live functional tests. Test reports, photos, and voltage logs are available on request.
Q: Why is it cheaper than factory-direct?
A: Surplus stock comes from excess inventory, decommissioned units, or unused spares. Pricing reflects sourcing, not a claim that the part is newer than OEM stock.
Q: What should I verify before installation?
A: Confirm board revision, jumper switch positions, terminal wiring diagrams, signal range (4–20 mA vs 0–10 V), and shield grounding method (single-ended vs both-ends). Calculate total rack backplane power consumption and leave a 20% buffer.
Q: How do I know the board is actually bad?
A: Look for failed power LEDs after confirming slot voltage, multiple channels failing together, COREBUS communication faults that persist after reseating, or output channels that remain dead after config correction. If diagnostics still point to the board after those checks, replacement is justified.
Q: What are the COREBUS connectors used for?
A: JAI and JAJ are COREBUS connectors that link the terminal board to the Mark V core processors. They carry high-speed data for analog I/O and system diagnostics. Faults here can cause communication timeouts or loss of analog data.
