GE DS200TCQBG1B Turbine Control RST Processor Board

Description

Key Technical Specifications

Product Introduction & Supply Chain Strategy

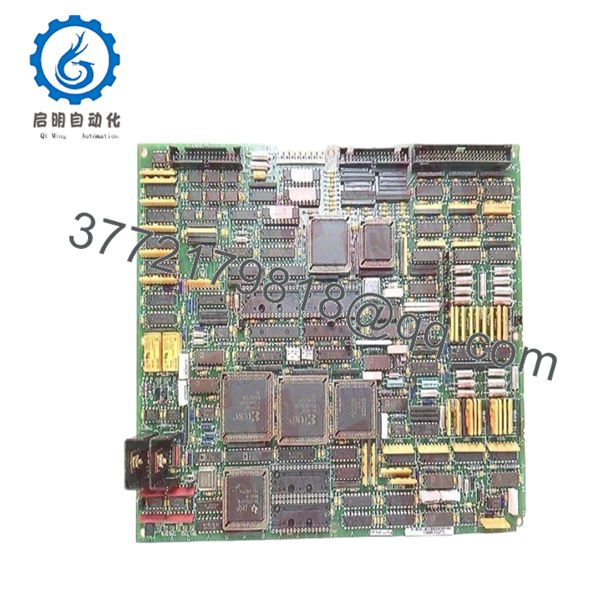

The GE DS200TCQBG1B is the central computing engine housed within the \langleR\rangle, \langleS\rangle, and \langleT\rangle control cores of the Speedtronic Mark V turbine control system. It executes complex algorithmic logic, sensor voting, and real-time computation required to maintain stable fuel control, speed governance, and temperature monitoring on heavy-duty gas and steam turbines.

Procuring this module as a New Surplus unit is a critical risk-mitigation strategy for facilities running legacy systems. Because the Mark V series is discontinued, relying on second-hand or poorly repaired cards introduces severe asset vulnerability. Maintaining a reliable buffer stock of un-energized, brand-new components eliminates the lead-time variability of emergency market hunting, reducing your Total Cost of Ownership (TCO) and shielding operations from $100,000+ daily downtime losses.

DS200TCQBG1B

Installation & Configuration Guide

Stage 1: Pre-Installation (Prep & Safety)

1. Isolate all power sources to the Mark V control panel using standard lock-out/tag-out (LOTO) safety protocols. Verify that the power supply cards feeding the specific processor core are completely dead.
2. Put on a grounded anti-static wrist strap and connect it to the unpainted chassis ground point.
3. Use a high-resolution camera to document the existing board configuration, noting all jumper block positions (JP1 through JPxx), EEPROM chip orientations, and specific daughtercard connections.

Stage 2: Removal

1. Carefully unclip the ribbon cables and communication lines from the board connectors. Pull straight back on the connectors to prevent fracturing the solder pads.
2. Unscrew the retaining fasteners securing the card to the chassis panel framework.
3. Grip the board firmly by the outer fiberglass edges and pull it smoothly out of the backplane slot. Ensure no pins bend during extraction. Place it inside an ESD-safe bag immediately.

Stage 3: Installation (Clone & Seat)

1. Remove the new surplus DS200TCQBG1B card from its anti-static packaging.
2. Mirror the jumper settings from the old board onto the new board exactly, using your reference photo.
3. Move the configuration EEPROMs from the old card to the new card if specified by your engineering manual, paying strict attention to the notch alignment on the IC sockets.
4. Align the card with the mounting tracks and guide it into the slot until the connectors seat completely. Tighten all retention screws to 0.5 Nm of torque. Reconnect all wiring harnesses and communication cables securely.

Stage 4: Power-On & Testing

1. Measure the power supply lines at the core test points to confirm they are clear of dead shorts.
2. Energize the panel breaker and watch the alphanumeric display and onboard diagnostic LEDs.
3. Verify that the system passes its power-on self-test (POST) and that the processor enters the normal execution mode without registering hardware fault codes. Download or verify the application code through your engineering workstation interface.

Firmware/Software Versions & Upgrade Notes

The DS200TCQBG1B features a specific functional revision matrix dictated by the “G1B” suffix. The core EPROM chip firmware must match your existing Mark V panel configuration block to communicate effectively with adjacent I/O cards and the operator interface workstation.

This board uses firmware version V5.00 or higher, which is fully backward compatible with older G1 series configurations. However, it cannot be mixed with legacy software drivers that predate system baseline 5.0. Upgrading firmware in the field during a panic swap introduces serious protocol timeout risks; instead, swap the original EPROM chips from the failed card into the new card if the old firmware must be preserved to prevent software conflict.

Frequently Asked Questions (FAQ)

Is this board brand new, and why is it cheaper than the original factory list price?

Yes, this is a Brand New Surplus unit. It is not used, not pulled from a decommissioned plant, and not refurbished. All modules undergo rigorous quality verification to ensure OEM-level reliability. The price is below the original factory list price because we source unissued, spare inventory allocations from capital project surpluses and climate-controlled storage facilities globally. This lets us pass substantial savings on to your procurement budget while maintaining 100% genuine new condition.

What are the specific risks of using a refurbished board for turbine control?

Refurbished control cards pose a severe risk to high-availability power generation assets. Surface cleaning and basic repairs cannot fix internal component degradation, such as dried-out electrolytic capacitors or micro-fractures in the traces caused by thermal cycling. A refurbished card might work during a bench test but fail three months later under full thermal loads, causing a turbine trip, emergency shutdown, and catastrophic secondary costs that dwarf the initial savings.

Does the DS200TCQBG1B support hot-swapping while the turbine is running?

No. The GE Mark V system architecture does not allow hot-swapping on this specific core processor tier. Pulling or inserting this board while the backplane bus or field loops are energized can cause heavy electrical arcs, corrupt volatile memory chips, damage adjacent cards, and trigger an immediate emergency shutdown (ESD) of the turbine.

Will the board require programming or software loading out of the box?

The board contains the basic hardware-level boot firmware on its EPROMs, but you must ensure the jumper configurations mirror your plant’s specific application. Once installed, you will need to load your site-specific parameter and configuration files via the ControlST or relevant engineering workstation interface.

What kind of warranty and quality certification comes with this module?

Every single DS200TCQBG1B shipped passes through a strict inbound and outbound quality control checklist. This involves anti-counterfeit serial verification, physical trace tracking, and static testing. Because of this high standard, we back this New Surplus product with a comprehensive 1-year warranty, which is twice the industry standard for surplus components.
