Key Technical Specifications
- Model: DS3800HMPF1E1E
- Brand: GE
- Series: Mark IV Speedtronic
- Product type: Microprocessor board / controller module
- Application: Gas and steam turbine control
- Architecture: Triple modular redundant controller module
- Form factor: DS3800 plug-in board
- Condition: New surplus or tested used stock, depending on lot
- Availability: Legacy stock, limited supply typical
- Replacement note: Verify exact suffix and system revision before ordering
Product Introduction
GE DS3800HMPF1E1E is a Mark IV Speedtronic microprocessor control board used in legacy gas and steam turbine control systems. Supplier listings identify it as a triple modular redundant controller module for core logic sequencing and coordination.
This part is bought as an exact-match replacement, not a generic substitute. The suffix matters, the rack compatibility matters, and the system revision matters, so confirm the removed board label and installed hardware before you order.

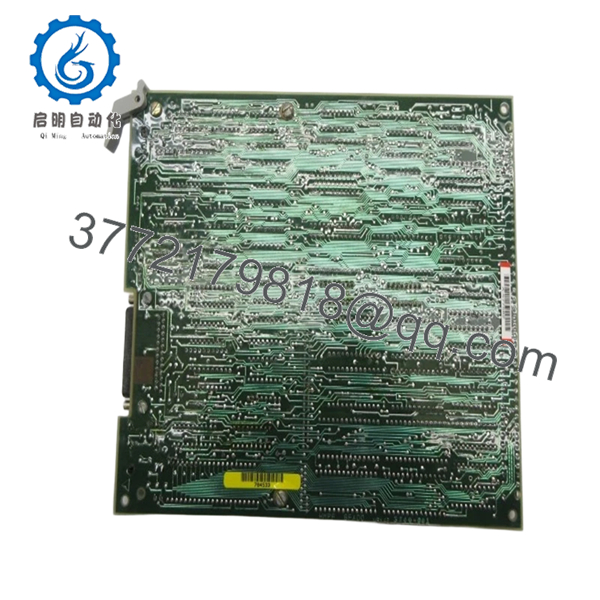

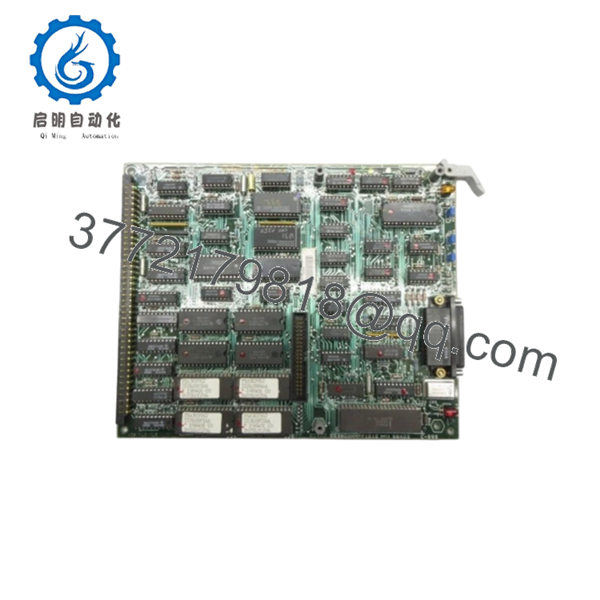

- DS3800HMPF1E1E
- DS3800HMPF1E1E
Troubleshooting Quick Reference
| Symptom | Possible Cause | Relevance to This Part | Quick Check Method | Recommendation |
|---|---|---|---|---|
| Board not detected | Bad seating, backplane issue, or wrong revision | ✅ High | Reseat the board and inspect backplane contacts | Confirm the exact part number first |
| Turbine control fault | Controller board fault or upstream system issue | ✅ High | Read the diagnostics and compare adjacent cards | Check system logs before replacing hardware |
| Intermittent resets | Loose retention, vibration, or power instability | ✅ High | Check the retaining hardware and measure supply stability | Secure the card and verify the power rail |
| No logic output | Missing enable signal or failed processor logic | ✅ High | Verify the command path at the connector | Rule out upstream control before condemning the card |
| Runs hot in cabinet | Poor cooling or overloaded enclosure | ❌ Low | Measure ambient temperature inside the cabinet | Improve cooling and inspect airflow |
| Starts working after reseat | Dirty contacts or marginal edge connector | ✅ Medium | Inspect connector fingers and clean the contacts | Monitor for recurrence after cleaning |
If the fault still does not point clearly to the board, send photos of the card, connector, label, and diagnostics to technical support.
Frequently Asked Questions
Q: Is the DS3800HMPF1E1E still available?
A: Usually only as legacy stock or surplus. This is a Mark IV-era GE board, so availability is limited and can change quickly.
Q: Is this a direct replacement for DS3800HMPF1E1 or DS3800HMPF1E1F?
A: Not automatically. The suffix and revision can affect function and compatibility, so match the full part number exactly.
Q: Is it new, used, or refurbished?
A: It is generally sold as New Original / New Surplus unless stated otherwise. That means unused stock, not a repaired board.
Q: Can I hot-swap it?
A: I would not assume hot-swap capability. Power down and follow the shutdown procedure before removing a turbine control board.
Q: Why are prices all over the place?
A: Because this is a discontinued industrial control part with uneven supply. Price often reflects stock condition, test status, and how fast the seller can ship.
Q: What should I verify before ordering?
A: Confirm the exact suffix, board revision, system model, and connector layout. A near-match can fit mechanically and still fail in the rack.
Q: What usually causes failure reports on this board?
A: Loose seating, backplane contact issues, power instability, or an upstream system fault are common. Do not assume the PCB is bad until the diagnostics and wiring are checked.
