GE DS3800HPRB1C1C Mark IV Pulse Rate Input Board

3. Key Technical Specifications

The DS3800HPRB1C1C is designed for pulse rate and frequency signal acquisition inside GE Mark IV turbine control systems. It is commonly used for speed sensing and pulse-driven feedback processing in turbine applications.

4. Product Introduction

The GE DS3800HPRB1C1C is a Pulse Rate Input Board used within GE Speedtronic Mark IV turbine control systems. The board processes pulse-based feedback signals from turbine speed sensors, frequency devices, and related field instrumentation.

In operating plants, these boards are frequently retained as critical spares because a failed pulse input path can trigger turbine startup inhibits or unstable speed feedback conditions. Most facilities still running Mark IV hardware prefer direct board replacement instead of a full turbine control migration during outage windows.

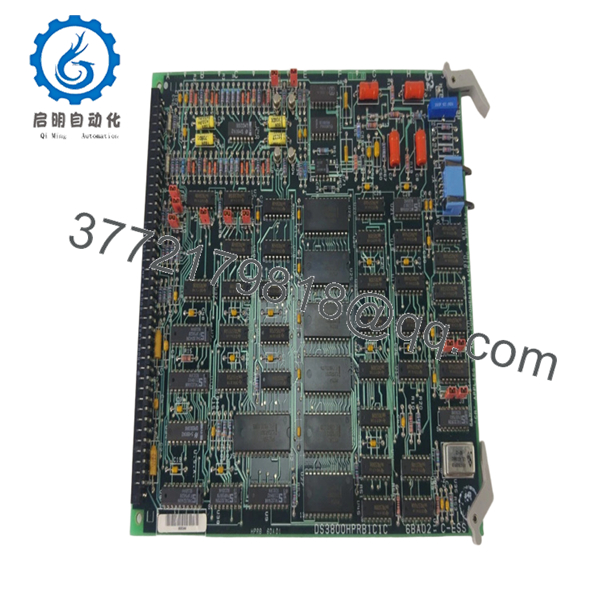

DS3800HPRB1C1C

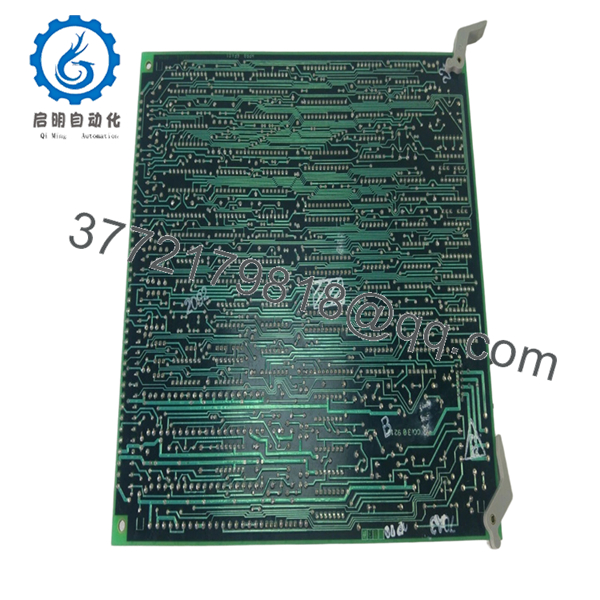

DS3800HPRB1C1C

5. Installation & Configuration Guide

Stage 1: Pre-Installation Preparation (Estimated Time: 10–15 Minutes)

⚠️ Safety First

• Notify operations before shutdown.
• Verify the turbine is in a safe shutdown state.
• Apply lock out/tag out procedures.
• Wait at least 5 minutes for cabinet capacitor discharge.
• Verify zero voltage using a calibrated Fluke 115 multimeter.

Mark IV cabinets are old enough now that some power supplies discharge inconsistently. Never assume the cabinet is safe immediately after shutdown.

Tools Required

• Grounded ESD wrist strap
• PH1 screwdriver
• Small flat-blade screwdriver for trimmer adjustment
• Fluke 115 multimeter
• Wire labels
• Smartphone for documentation photos
• ESD-safe work surface

Data Backup

1. Record cabinet slot location.
2. Photograph:
   • Jumper settings
   • Connector orientation
   • Grounding straps
   • Cable routing
3. Document existing calibration settings before touching the trimmer resistor.

⚠️ The trimmer resistor adjustment matters. I’ve seen technicians rotate it “just slightly” without documenting the original position. Suddenly the speed signal scaling drifted and startup diagnostics became a nightmare.

Stage 2: Removing the Old Module (Estimated Time: 5–10 Minutes)

1. Remove the cabinet access cover.
2. Label and disconnect all cables carefully.
3. Release retention levers slowly.
4. Remove mounting hardware if applicable.
5. Pull the board straight outward to avoid edge connector damage.
6. Inspect:
   • Connector oxidation
   • Heat damage
   • Dust buildup
   • Cracked solder joints
   • Bent connector pins

⚠️ Important: Keep the original board nearby until the replacement passes operational testing.

I’ve watched maintenance crews throw old boards into scrap bins too early, then spend hours trying to reconstruct jumper configurations from memory.

Stage 3: Installing the New Module (Estimated Time: 10 Minutes)

1. Wear the grounded ESD strap before touching the PCB.
2. Verify exact model number:
   • DS3800HPRB1C1C
3. Compare all revision markings with the original board.

Configuration Clone (Crucial)

Replicate:

• All 12 jumper positions
• Trimmer resistor setting
• Connector orientation
• Shield grounding arrangement

⚠️ This is the most common startup failure point with pulse input boards. One incorrect jumper can distort pulse frequency readings and create unstable turbine speed feedback.

1. Insert the board evenly into rack guides.
2. Lock retention levers completely.
3. Reconnect all cables carefully.

Self-Checklist

• Model numbers match
• Jumper settings duplicated
• Trimmer position documented
• Connectors fully seated
• Retention levers locked
• Grounding verified

Stage 4: Power-On & Testing (Estimated Time: 15–20 Minutes)

Pre-Power Check

• Verify no short exists on the 24 V rail.
• Confirm cabinet grounding continuity.
• Inspect connector seating carefully.

Power-On Sequence

1. Energize the control rack first.
2. Observe startup diagnostics.
3. Verify pulse signal communication with the Mark IV controller.
4. Connect engineering workstation if available.
5. Monitor speed signal stability.
6. Perform dry-run testing before enabling field operation.

Functional Verification

Check:

• Stable pulse frequency readings
• No communication alarms
• Stable timer behavior
• Proper signal scaling
• No intermittent turbine speed faults

The onboard programmable interval timer devices are critical for stable pulse acquisition timing. Incorrect calibration can create erratic speed readings during turbine ramp-up.

⚠️ Troubleshooting Note

If unstable pulse readings appear after installation:

• First suspect jumper mismatch.
• Second verify trimmer resistor setting.
• Third inspect connector seating and shielding.

I once watched a startup team chase phantom overspeed alarms for nearly an entire shift. Turned out the replacement board shipped with different jumper defaults than the original hardware.

Technical Pitfall & Survival Guide

❗ Firmware and Revision Mismatch

Mark IV revisions are not always electrically identical.

Avoidance:
Document every suffix and revision code before ordering.

I’ve seen systems reject otherwise functional boards because timing tolerances shifted slightly between revisions.

❗ Jumper Misconfiguration

This board uses 12 configurable jumpers for pulse handling behavior.

Avoidance:
Photograph every jumper before removal and duplicate settings exactly.

Do not assume factory defaults are correct.

❗ Trimmer Resistor Misadjustment

The onboard trimmer resistor affects signal behavior and calibration.

Avoidance:
Document the original position before adjustment.

A careless adjustment can destabilize speed feedback immediately.

❗ Connector Damage

The modular connector and retention levers must seat evenly.

Avoidance:
Insert the board straight into the rack.

Bent connector pins create intermittent faults that only appear during turbine acceleration.

❗ Electrostatic Discharge (ESD)

These older GE pulse boards are sensitive to static discharge.

Avoidance:
Use grounded wrist straps and ESD-safe surfaces.

I once watched an engineer unpack a spare board on standard cardboard during winter. The board powered up, then immediately lost stable pulse acquisition. Static damage. Expensive lesson.

Keep these checks in mind and you’ll save yourself 90% of typical rework time.

6. Frequently Asked Questions (FAQ)

Q1: Can I hot-swap the DS3800HPRB1C1C?

No.

The Mark IV platform was not designed for live insertion of pulse input boards. Hot-swapping can damage the backplane or create unstable turbine speed readings.

Power the cabinet down fully before replacement.

Q2: Is the DS3800HPRB1C1C obsolete?

Yes.

This board belongs to the GE Mark IV legacy platform. Most inventory available today comes from:

• New surplus stock
• Plant spare inventories
• Professionally refurbished units

Factory-sealed inventory still exists but availability is limited globally.

Q3: What does this board actually do inside the turbine system?

The DS3800HPRB1C1C processes pulse-based input signals used for:

• Turbine speed sensing
• Frequency monitoring
• Rotational feedback processing
• Pulse-driven instrumentation

Loss of stable pulse input can create startup inhibits or unstable speed regulation.

Q4: Why does this board include a trimmer resistor?

The trimmer resistor allows fine adjustment of signal behavior and calibration.

Only qualified technicians should adjust it. Random adjustment without proper instrumentation can destabilize pulse signal interpretation.

Q5: Will replacing this board erase turbine logic?

Usually no.

The DS3800HPRB1C1C does not normally store the primary turbine application logic. That logic typically resides in the Mark IV processor section.

However, jumper settings and calibration still matter greatly.

Q6: Why are some units priced much lower than others?

Usually because of:

• Unknown testing status
• Missing traceability
• Cosmetic damage
• Refurbished boards sold unclearly

Always request:

• Serial number photos
• QC reports
• Runtime test documentation
• Connector close-up photos
• Packaging verification

A serious supplier should provide them without hesitation.

Q7: What testing should a supplier perform before shipment?

Minimum acceptable QC should include:

1. Visual PCB inspection
2. Connector integrity inspection
3. Insulation resistance testing (>10 MΩ preferred)
4. Pulse signal simulation testing
5. 24-hour powered runtime testing
6. Trimmer calibration verification
7. ESD-safe packaging and sealing

Good suppliers should also provide:

• QC photos
• Test videos
• Runtime verification reports
• Packaging photos before shipment

A board tested under simulated pulse load conditions means far more than a simple “power-on tested” sticker.
