Key Technical Specifications
- Manufacturer: General Electric
- Series: Mark IV DS3800 Speedtronic turbine control
- Function: Servo amplifier / regulator amplifier board
- Application: Amplifies control signals for actuators, servo valves, or servo‑drive stages in Mark IV systems
- Architecture: Plugs into DS3800 backplane stacks (e.g., regulator or servo amplifier racks)
- Signal type: Analog/digital control input; amplified analog output to servo or valve drive
- Board features: Surface‑mount amplifier and logic components, trimmer resistors for calibration, possibly 34‑pin or similar connector
- Mechanical: Standard DS3800 board form factor, 1–2 kg, with mounting ears and board‑edge connector
- Environment: Industrial control cabinet, no condensation or extreme shock/vibration
- Obsolescence status: Legacy Mark IV DS3800 board; no current‑production GE stock
Product Introduction

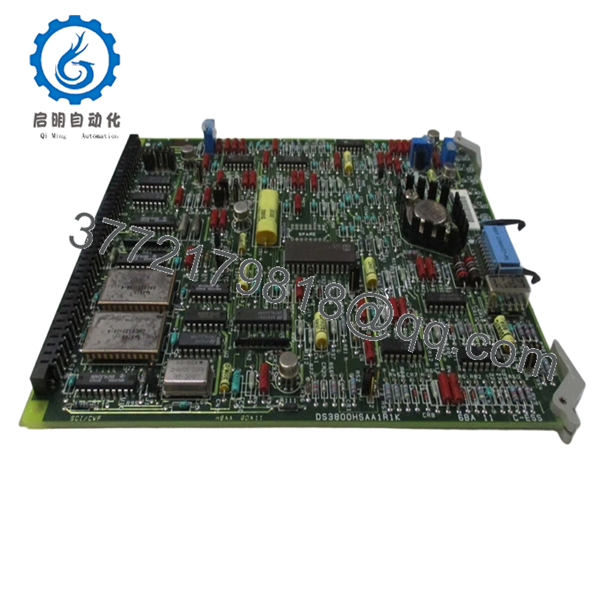

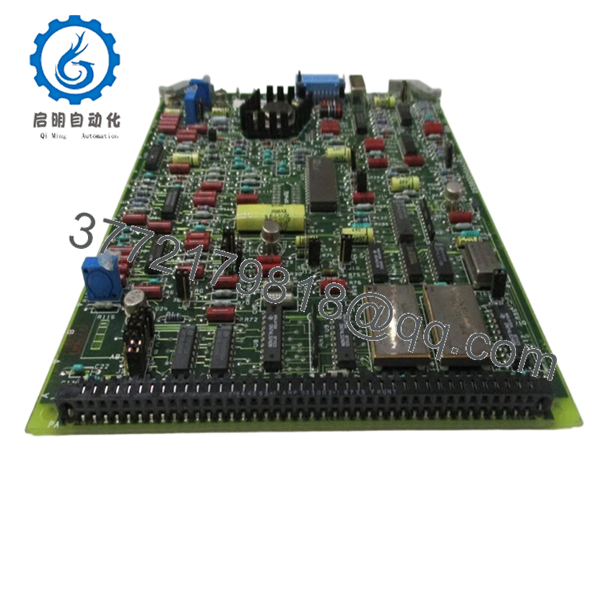

GE DS3800HSAA1R1K is a servo amplifier board used in GE Mark IV DS3800 Speedtronic systems to drive servo valves, actuators, or servo‑drive stages from low‑level regulator signals. It sits in the DS3800 amplifier or servo stack and converts the control signal from the regulator board into a higher‑current drive suitable for the field device.
Engineers usually replace DS3800HSAA1R1K when the original servo amp shows erratic actuator motion, unstable regulation, or no output despite a good control signal. The main advantage is that it matches the existing DS3800 layout and stack wiring, so the only work required is copying trimmer settings from the old board; the downside is that it is obsolete and must be handled carefully to avoid ESD damage.
- DS3800HSAA1R1K
- DS3800HSAA1R1K
Troubleshooting Quick Reference
| Symptom | Possible Cause | Relevance to this Part | Quick Check Method | Recommendation |
|---|---|---|---|---|
| Actuator hunts or oscillates | Bad servo amp gain or trimmer out of spec | ✅ High | Compare trimmer settings to the original board; log actuator response under step input | Restore original trimmer positions; if hunting persists, replace DS3800HSAA1R1K |
| No actuator motion, even with control signal | Failed servo amp or dead output stage | ✅ High | Measure control input at the board and check servo output with a multimeter or scope | If input is good and output is zero, replace the amp board |
| Output voltage is clipped or asymmetric | Amplifier stage saturation or partial failure | ✅ High | Inspect output waveform with a scope; verify DC rails | If rails are good but output is distorted, assume the board is faulty |
| Board runs hot or smells burnt | Overload or shorted output | ✅ High | Measure servo current and check for shorts in the valve or actuator wiring | Unload the output stage, repair wiring, then test with a new or known‑good board |
| Actuator responds slowly or weakly | Gain too low or wrong trimmer setting | ✅ Medium | Compare trimmer positions to the original board; verify servo gain in the control program | Match trimmer settings and tune only offline |
| Unit fails after replacement | ESD damage or incorrect orientation | ✅ High | Inspect board for burnt traces and check connector orientation | Always handle with ESD protection and verify board orientation before powering |
If the fault pattern is unclear, contact technical support with photos of the servo‑amp board, wiring to the actuator, and any servo‑drive or regulator event logs.
Frequently Asked Questions
Is DS3800HSAA1R1K interchangeable with other HSAA or servo‑amp boards (e.g., DS3800HSAA1T1M, DS3800HSAA1U1N)?
No, not without verification. DS3800HSAAx boards can differ in gain structure, connectors, and calibration. Swapping servo‑amp boards with different suffix codes can cause incorrect actuator travel or instability; always match the exact model and trace code.
Can I hot‑swap this servo amp board in a live Mark IV rack?
No. Power down the DS3800 servo or regulator stack before removing or inserting DS3800HSAA1R1K. The servo‑drive side carries high‑current signals and the board is ESD‑sensitive; live‑swap risks the board, actuator, and other stacked boards.
Does this board store firmware or configuration?
No. DS3800HSAA1R1K is an analog/digital servo‑amplifier card; behavior is set by onboard trimmers and the upstream regulator board. Copy the trimmer positions and wiring exactly from the original board; do not rely on software parameters alone.
Why is this board so expensive compared with generic servo amps?
Because it is a legacy Mark IV DS3800 component; sources are limited to surplus or decommissioned plants. The price reflects acquisition, test‑time, and the risk of holding a non‑repairable, obsolete spare.
What condition is this unit in?
Listed as New Surplus / Tested. That means it typically comes from stored or decommissioned gear, not new‑production GE, and may not be factory‑sealed. Each board is usually power‑tested and basic servo‑drive function verified before shipment.
What should I check before installing?
- Match the exact DS3800HSAA1R1K model and any trimmer settings.
- Inspect the DS3800 stack connector and servo‑drive wiring for damage or loose contacts.
- Verify that the servo‑valve or actuator current is within the board’s rating.
- Work in an ESD‑safe environment with a grounded wrist strap.
Can this servo amp board be repaired if it fails?
Some third‑party vendors attempt repairs, but the servo‑drive and amplifier stages are not field‑serviceable. For critical‑path Mark IV units, most engineers treat DS3800HSAA1R1K as a non‑repairable spare and keep a matched unit on site.
