3. Key Technical Specifications
- Manufacturer: General Electric.
- Model Number: DS3800HVDB1G1D
- Product Type: Video driver board / interface board.
- Series: GE Speedtronic Mark IV.
- Application: Turbine control system CRT/video interface.
- Connector Detail: 20-pin connector between retaining rods.
- Board Features: Multiple EPROM modules and 15 jumpers.
- Form Factor: Mark IV rack-mounted board.
- Condition: New Surplus unless otherwise stated.
- Compatibility Note: Verify exact revision and connector layout before installation.
4. Product Introduction
The GE DS3800HVDB1G1D is a Mark IV video driver board used in Speedtronic turbine control systems. It provides CRT/video interface functions inside a GE legacy rack, where the exact board revision and connector count matter.
This part is usually bought to keep older Mark IV cabinets running without reworking the system. The main risk is a mismatch in revision or physical layout, so compare the removed board, EPROM positions, and jumper settings before installation.

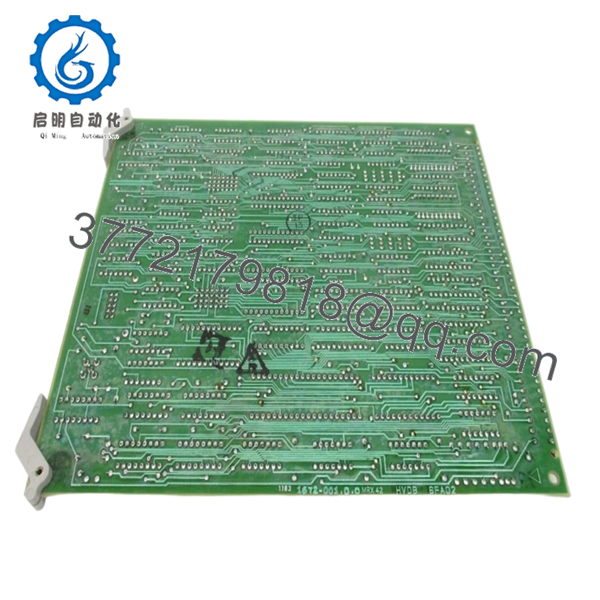

- DS3800HVDB1G1D

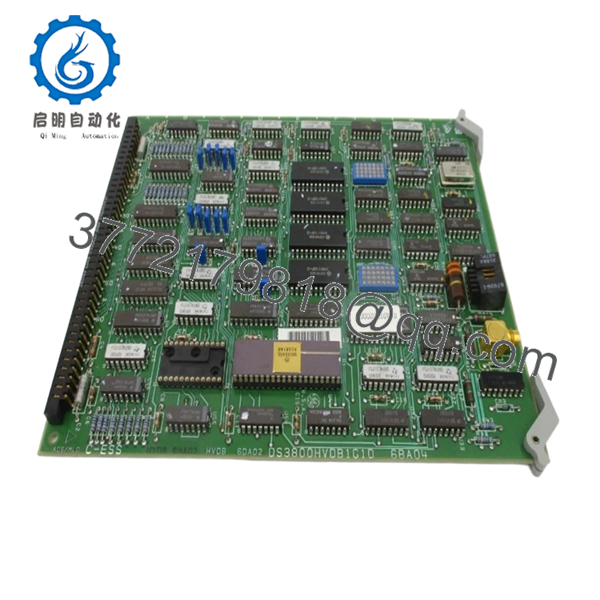

- DS3800HVDB1G1D
5. Troubleshooting Quick Reference
| Symptom | Possible Cause | Relevance to This Part | Quick Check Method | Recommendation |
|---|---|---|---|---|
| No display output | Failed board or missing rack power | ✅ High | Measure rack supply at the backplane and check board LEDs or CRT activity | Verify power first, then replace if the board stays inactive |
| Garbled or unstable screen | EPROM issue or board revision mismatch | ✅ High | Compare EPROM labels, board suffix, and connector layout to the removed card | Do not swap blind; confirm exact revision |
| Intermittent display loss | Loose 20-pin connector or harness issue | ✅ High | Inspect the 20-pin connector and verify pin continuity with a meter | Re-seat the connector and check wiring against the print |
| System alarms with normal rack power | Video interface fault upstream or downstream | ✅ Medium | Test the CRT/cable chain and inspect the board for damaged components | Check the whole video path before condemning the board |
| Board runs hot | Cabinet airflow or aging components | ✅ Medium | Check enclosure temperature and airflow near the card slot | Confirm cooling before replacement |
| Immediate fault after install | Wrong jumper or EPROM configuration | ✅ High | Photograph the old board’s jumpers and EPROM positions before removal | Mirror the original setup exactly |
Contact technical support with photos, EPROM labels, jumper positions, and diagnostic logs if the fault is still unclear.
6. Frequently Asked Questions (FAQ)
Q: Is the GE DS3800HVDB1G1D still available?
A: Yes, but it is an obsolete Mark IV part, so stock is limited and usually comes from surplus inventory. Exact suffix matching matters because similar GE cards are not always interchangeable.
Q: Is this a direct replacement for other DS3800HVDB variants?
A: No. Mark IV cards can look close while still differing in revision, EPROM set, or connector arrangement. Match the removed board and the full part number before ordering.
Q: Can I hot-swap this board?
A: No. Power down the cabinet first and follow lockout procedure. Hot-swapping can damage the backplane or the replacement board.
Q: Will my existing configuration transfer automatically?
A: Not always. Some settings are physical, not software-based, and the jumper or EPROM setup may need to match the old card exactly. Take photos before removal.
Q: Why is this cheaper than a factory-new part?
A: Because it is typically New Surplus, not current OEM production. That lower price comes with the usual surplus tradeoff: you need to verify condition and compatibility carefully.
Q: What should I check before installing it?
A: Confirm the full suffix, inspect the 20-pin connector, compare jumper and EPROM positions, and verify cabinet power quality. Most install problems come from mismatch or wiring errors, not from the board itself.
