3. Key Technical Specifications
| Parameter | Value |
| Monitoring Range | +/- 125 VDC Control Bus (Typical) |
| Detection Method | Differential current/voltage bridge monitoring |
| Alarm Outputs | Dry contact relay outputs for remote indication |
| Sensitivity | Potentiometer adjustable for leakage current levels |
| Visual Indicators | LED Status for Positive/Negative Ground Faults |
| Response Time | < 100 ms for fault detection |
| Board Revision | G1B (High-stability analog comparator circuitry) |
| Isolation | 1,500V Galvanic isolation between power and alarm logic |
4. Product Introduction & Supply Chain Strategy

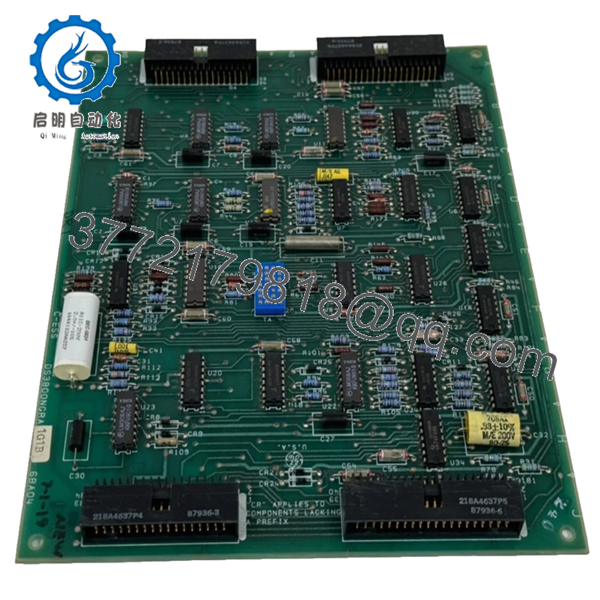

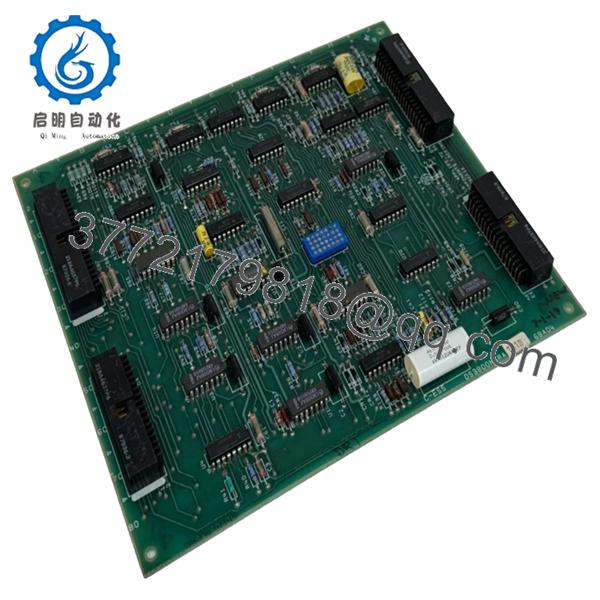

The GE DS3800NGRA1G1B is a specialized Ground Alarm Board designed for the Speedtronic Mark IV turbine control system. It is responsible for continuously monitoring the integrity of the floating DC control bus. In a power plant environment, a single ground fault may not trip the system, but it creates a dangerous condition where a second fault could cause an unexpected turbine trip or hardware damage. This board provides the early warning required to locate and clear faults before they impact plant availability.
From a supply-chain standpoint, the NGRA board is a critical “Safety and Reliability” spare. Because these boards are constantly connected to the main power buses, they are frequently subjected to voltage surges and thermal stress. Procuring this as New Surplus is the only way to guarantee the precision of the analog bridge components. Refurbished units often suffer from “calibration drift,” leading to nuisance alarms or—worse—a failure to detect a genuine ground fault. Our New Surplus stock ensures the tightest tolerances for your electrical protection scheme.
5. Installation & Configuration Guide
- Stage 1: Pre-Installation (Prep & Safety): Perform a ground check on the system using a multimeter to confirm current fault status. De-energize the Mark IV rack power. Wear a grounded ESD wrist strap to protect the high-sensitivity comparators on the board.
- Stage 2: Removal: Note any specific wiring connected to the front-facing terminal headers. Carefully slide the module out of the card cage. Check the backplane for carbon tracking or signs of previous electrical arcing.
- Stage 3: Installation (Clone & Seat): Check the potentiometer positions on the original board. These settings determine the “trip point” for the alarm. Replicate these settings on the new DS3800NGRA1G1B. Firmly seat the board into the backplane connectors.
- Stage 4: Power-On & Testing: Restore power. If the system is healthy, the “Normal” LED should be lit. To test, momentarily introduce a high-impedance ground through a test resistor (following plant safety protocols) and verify the board triggers the correct polarity alarm.
- DS3800NGRA1G1B
6. Firmware/Software Versions & Upgrade Notes
The DS3800NGRA1G1B is a hardware-based analog detection module and does not utilize firmware. However, the “G1B” revision is highly significant as it incorporates updated filtering components that reduce false alarms caused by switching noise on the DC bus. This board is a direct, backward-compatible replacement for all previous NGRA versions (e.g., G1A) and offers superior performance in electrically “noisy” environments.
7. Frequently Asked Questions (FAQ)
- What does it mean if the “Positive Ground” LED is lit?
This indicates that the positive leg of your 125 VDC control bus has developed a leakage path to the chassis ground. The DS3800NGRA1G1B has detected this imbalance and is alerting the operator to investigate field wiring or solenoids.
- Can I adjust the sensitivity of the ground detection?
Yes. There are on-board potentiometers that allow you to set the threshold for what the system considers a “fault,” allowing you to account for normal standing leakage in large cable runs.
- Why buy New Surplus instead of a cheaper refurbished board?
In safety-critical circuits like ground detection, component reliability is paramount. Refurbished boards may have aged resistors that “shift” with temperature, causing inconsistent alarm levels. New Surplus provides the stability of a factory-new circuit.
- Is this board compatible with Mark V or Mark VI systems?
No. This board is specifically engineered for the Mark IV card cage architecture and the floating DC bus requirements of that specific generation.
- Does this board provide protection or just alarming?
The DS3800NGRA1G1B is primarily an alarm interface. It provides the signal to the controller and local LEDs, but it does not physically disconnect the ground fault. It is a diagnostic tool used to prevent damage.
