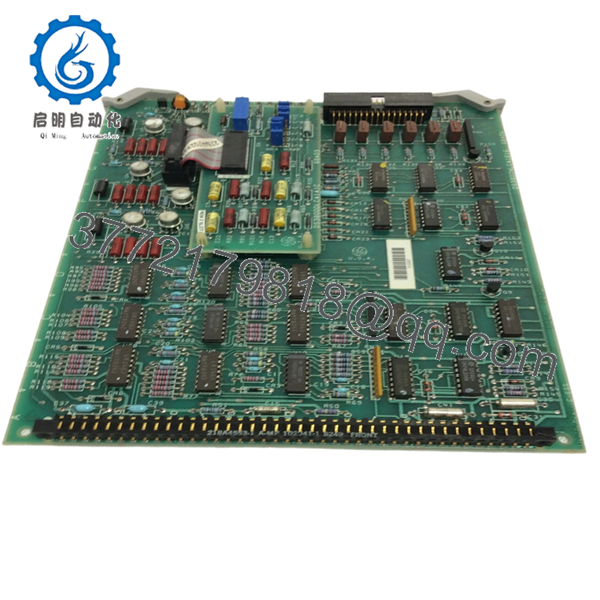

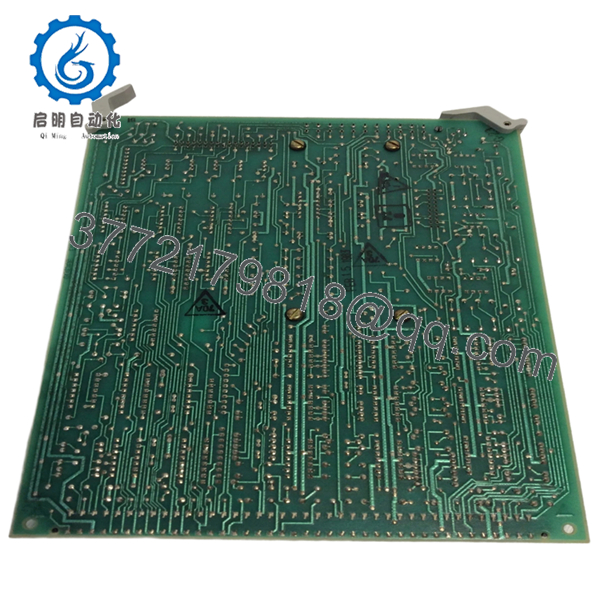

GE DS3800NLCA1E1E Mark IV Turbine Control Card

Description

3. Key Technical Specifications

Parameter	Value
Model Number	DS3800NLCA1E1E
Manufacturer	GE General Electric
Series	Speedtronic Mark IV DS3800
Product Type	Turbine Control Circuit Board
Primary Application	Gas and Steam Turbine Control
Compatible Systems	GE Mark IV Speedtronic Platforms
Memory Devices	EPROM and EEPROM integrated circuits
Connector Configuration	Two male ports, one female connector
LED Indicators	Single onboard yellow LED
Semiconductor Devices	Multiple transistor and diode arrays
Mounting Style	Rack-mounted PCB
PCB Protection	Industrial conformal coating
Communication Method	Proprietary GE backplane interface
Operating Temperature	0 °C to +50 °C typical cabinet environment
Storage Temperature	−40 °C to +85 °C
Typical Cabinet Voltage	24 V DC control environment
Product Status	Legacy / Obsolete Hardware
Availability	Surplus and refurbished inventory only



4. Product Introduction

The GE DS3800NLCA1E1E is a turbine control circuit board used in GE Speedtronic Mark IV control systems for gas and steam turbine applications. It supports rack-level communication, onboard memory handling, and signal processing functions within legacy Mark IV architectures.

In field maintenance projects, this board is commonly replaced when aging EPROM devices, unstable communication behavior, or intermittent startup faults begin affecting turbine reliability. Most facilities operating Mark IV systems choose direct board replacement to minimize outage duration and avoid immediate migration costs associated with newer turbine control platforms.



5. Installation & Configuration Guide

Stage 1: Pre-Installation Preparation (Estimated Time: 10 Minutes)

⚠️ Safety First

1. Notify plant operations before taking the turbine control cabinet offline.
2. Verify the turbine is fully shut down and isolated mechanically.
3. Apply lockout/tagout procedures to all cabinet power feeds.
4. Wait at least 5 minutes for capacitor discharge before touching hardware.

Tools Required

• ESD wrist strap
• PH1 screwdriver
• Fluke 115 multimeter
• Wire labels
• Smartphone for documentation photos
• Flashlight for rack inspection

Data Backup

1. Backup all available Mark IV configuration data.
2. Record the exact rack slot position.
3. Photograph:
   • Connector orientation
   • Wiring layout
   • Jumper settings
   • Existing LED conditions

❗I have seen experienced maintenance crews skip this step during outage pressure, then spend half a shift tracing connector locations because two adjacent boards looked nearly identical.

Stage 2: Removing the Old Module (Estimated Time: 5–10 Minutes)

1. Open the cabinet front access panel.
2. Label all attached wiring and connectors before removal.
3. Disconnect connectors carefully without flexing the PCB.
4. Release mounting hardware and retention clips.
5. Pull the board straight outward to protect edge connectors.
6. Inspect:
   • Backplane connector pins
   • Oxidation
   • Carbon discoloration
   • Dust buildup

⚠️ Note

Keep the original board available until startup testing is fully completed. Older Mark IV systems often contain undocumented jumper or wiring modifications added during previous outages.

Stage 3: Installing the New Module (Estimated Time: 10 Minutes)

1. Wear a grounded ESD wrist strap before handling the replacement board.
2. Verify the exact model number: DS3800NLCA1E1E.
3. Inspect the replacement board for:
   • Cracked solder joints
   • Connector damage
   • Corrosion
   • Shipping damage

Configuration Clone (Crucial)

1. Replicate all jumper and hardware settings exactly from the original board.
2. Verify connector orientation carefully before insertion.
3. Confirm rack slot location before seating the board.

❗This is where many avoidable failures happen. A technician assumes “same family” means interchangeable settings, installs the board, and suddenly the rack reports communication or watchdog faults.

I once watched a startup delayed almost an entire shift because one jumper remained in the supplier’s factory-default position instead of the plant’s original configuration.

1. Slide the board evenly into rack rails.
2. Press firmly until fully seated.
3. Secure retention hardware evenly.
4. Reconnect all cables and verify strain relief.

Self-Checklist

• Jumpers match original
• Connectors fully seated
• Rack tabs secured
• No loose wiring
• Board aligned correctly

Stage 4: Power-On & Testing (Estimated Time: 10–15 Minutes)

Pre-Power Check

1. Verify no shorts exist on the cabinet DC rails.
2. Confirm cabinet grounding continuity using a multimeter.
3. Inspect edge connector engagement one final time.

Power-On Steps

1. Energize the Mark IV rack only.
2. Observe onboard LED behavior during startup.
3. Verify:
   • Normal initialization
   • Stable communication
   • No persistent fault indicators
4. Connect the engineering workstation.
5. Confirm:
   • Rack communication
   • Board recognition
   • Stable system status
   • No watchdog alarms
6. Perform dry-run signal verification before enabling turbine permissives.

⚠️ Troubleshooting Note

• Persistent fault indicators commonly point to:
  • Incorrect jumper settings
  • Firmware mismatch
  • Improper rack seating
• Intermittent communication faults often indicate:
  • Oxidized backplane contacts
  • Aging cabinet power supplies
  • Loose connector engagement

I have seen replacement boards blamed for failures that were actually caused by dirty backplane connectors inside 30-year-old Mark IV cabinets. Clean the rack before condemning the hardware.

DS3800NLCA1E1E

DS3800NLCA1E1E



6. Frequently Asked Questions (FAQ)

Q1: Can the DS3800NLCA1E1E be hot-swapped?

No. This board was not designed for live insertion.

Removing or installing it under power can corrupt rack communication and potentially damage the Mark IV backplane. Shut down cabinet power completely before replacement.

Q2: Is the DS3800NLCA1E1E obsolete?

Yes. The DS3800NLCA1E1E belongs to the legacy GE Speedtronic Mark IV platform, which has been obsolete for many years. Current inventory generally comes from surplus stock or refurbished industrial suppliers.

Facilities still operating Mark IV systems typically maintain spare inventory because migration projects involve major engineering and outage costs.

Q3: Is this board genuinely new or refurbished?

Available inventory typically falls into three categories:

• New Original / New Surplus
• Refurbished and tested
• Used pull-out inventory

Most “new” inventory is older OEM stock stored in controlled warehouse conditions rather than recently manufactured hardware.

Always request:

• High-resolution product photos
• Serial labels
• Test reports
• Burn-in verification

before approving shipment.

Q4: Will replacing this board erase turbine programming?

Usually no, but never assume that automatically.

This board contains EPROM and EEPROM devices that participate in control operation. Before replacement:

1. Backup all available configuration data.
2. Archive turbine constants.
3. Photograph jumper settings and chip locations.

I have seen plants discover corrupted backup media halfway through an outage. Verify backups before touching legacy hardware.

Q5: What is the most common installation mistake?

Incorrect jumper replication and connector orientation.

This happens constantly on older GE systems. Somebody installs the correct board but misses one hardware setting or connector position, then the rack starts throwing communication alarms immediately.

Take photos before removal. That single habit prevents most avoidable startup delays.

Q6: What testing should be performed before shipment?

A proper QC workflow should include:

1. OEM part verification
2. Anti-counterfeit inspection
3. PCB trace and solder inspection
4. EPROM/EEPROM verification
5. Power-on testing in a compatible Mark IV rack
6. Communication handshake testing
7. 24-hour thermal load testing
8. Insulation resistance testing using a 500 V Megger
9. ESD-safe packaging with final QC signoff

Test reports and startup verification photos should be available upon request.

Q7: Why is exact suffix matching important?

Because suffix revisions can affect:

• Timing behavior
• Jumper layouts
• Firmware interaction
• Backplane communication

❗Even boards that look physically identical may behave differently between revisions. I have seen engineers lose an entire outage window troubleshooting faults caused by one incorrect suffix letter.

Always verify the complete part number before ordering replacement hardware.

Keep these checks in mind and you’ll save yourself 90% of typical rework time.
