Key Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | General Electric (GE) |
| Model Number | DS3800NSCC1E1D |
| Series | Mark IV (DS3800 family) |
| Product Type | Speed Current Regulator Card |
| Primary Function | Speed and current regulation for steam or gas turbine management |
| Redundancy | Triple-redundant backups on all essential parameters |
| Connectors | 2 PCB mating connectors: 218A4637P1 87936-1 (right), 218A4553-1A/mp 533002-1 (left) |
| LED Indicator | 1 amber LED labeled “Imok” |
| Test Points | 14 test spots: Acom, Fcl, Sra, Tstn, Sp, Tstt, Out, Rcl, Fc1, Tstc, Sus, Rlt, Rla, Sua |
| Capacitors | Polyester film capacitors (708D1 m/e.10 +/- 10% 80v), smaller ceramic capacitors |
| Resistors | Ceramic-covered metal film resistors |
| Logic Gates | Quad 2-input exclusive-or gates, quadruple differential comparators |
| Mounting | Extractor/inserter clips for PCB installation/removal |
| Country of Origin | USA |
Product Introduction
GE DS3800NSCC1E1D is a Speed Current Regulator Card from the GE Speedtronic Mark IV series, designed for steam or gas turbine management with triple-redundant backups on all essential parameters and controls. It regulates both turbine speed and current to maintain stable operation under varying load conditions.

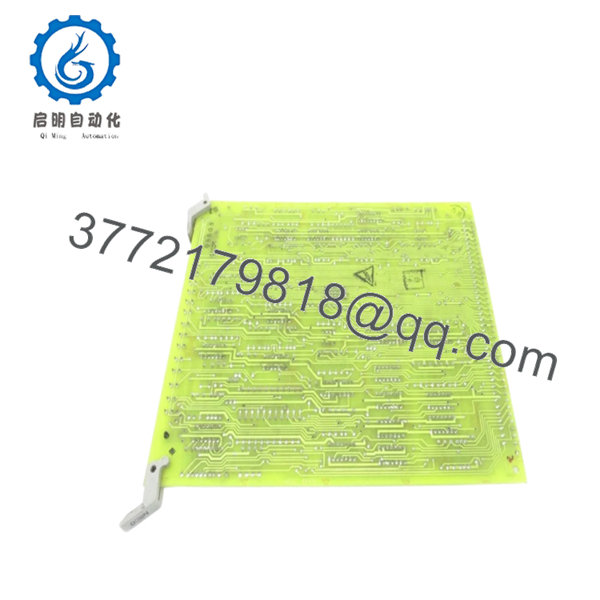

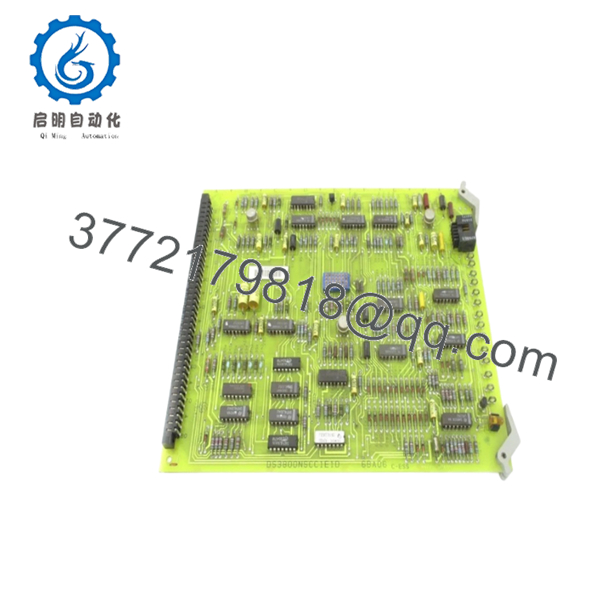

This board is chosen when the existing speed/current regulation shows drift, instability, or fails diagnostic checks. The card features two PCB mating connectors on opposite sides, one amber “Imok” LED, fourteen test points for diagnostics, extractor/inserter clips for safe removal, and uses polyester film capacitors with ceramic-covered metal film resistors for reliability.
- DS3800NSCC1E1D
- DS3800NSCC1E1D
Troubleshooting Quick Reference
| Symptom | Possible Cause | Relevance to this Part | Quick Check Method | Recommendation |
|---|---|---|---|---|
| “Imok” LED not amber | Board notInitialized, power failure, internal fault | ✅ High | Check LED status; verify 24 V DC at power terminals | Replace board if LED is off or wrong color and power is good |
| Speed regulation drift | Regulator circuit fault, component drift, calibration issue | ✅ High | Measure speed output at test point “Sp”; compare to setpoint | Replace if output drifts beyond spec under stable load |
| Current regulation fault | Current sensing circuit failure, regulator fault | ✅ High | Check current output at test point “Out”; verify sensor inputs | Replace if current regulation fails and sensors are good |
| No communication with master | Backplane connector issue, board failure | Medium | Reseat board, inspect 2 PCB connectors for damage | Clean/repair connector or replace if damage found |
| Intermittent operation | Loose connector, marginal component, thermal stress | ✅ High | Monitor 14 test points during warm-up; check for failure when hot | Replace if issue persists after reseating |
| System trips on speed change | Regulator response too slow/fast, tuning drift | ✅ High | Check diagnostic logs for speed regulation faults during ramp | Replace if fault follows the card during speed transitions |
| Erratic output at test points | Internal circuit fault, capacitor failure | ✅ High | Use oscilloscope to check test points: Acom, Fcl, Sra, Sp, Out | Replace if waveforms show noise or distortion |
Contact technical support with photos, fault codes, diagnostic logs, and oscilloscope readings from the 14 test points if the issue persists after these checks.
Frequently Asked Questions
Q: Is this a direct replacement for every DS3800NSCC speed current regulator card?
A: Not automatically. GE Mark IV parts vary by revision and suffix (like the 1E1D ending). Verify the exact model suffix, connector layout, and system revision before ordering. The connector positions and pinouts must match your existing rack.
Q: Can I hot-swap this regulator card?
A: No. Power down the cabinet first. Hot-swapping a regulator card can damage the backplane, fry the new card, or cause a speed/current spike that trips the turbine. Follow lockout/tagout procedures before removal.
Q: Will my existing tuning settings transfer to the new board?
A: This is an analog regulator card, not a programmable module, so there are no stored settings. However, document your system tuning parameters before removal, as the new board may need calibration to match your system.
Q: Why is this cheaper than buying from GE directly?
A: This is typically new surplus or tested surplus stock, not factory fresh production from GE’s current line. The Mark IV series is obsolete, so factory support is limited. That lowers cost, but you should still verify condition, test status, and revision match.
Q: What condition should I expect for this part?
A: Best sold as new surplus or tested surplus with a documented test report showing the “Imok” LED status and test point readings. For legacy Mark IV parts, expect aftermarket support rather than factory-sealed inventory. Transparency on testing matters more than marketing language.
Q: What usually causes failure on a speed current regulator card like this?
A: In the field, common issues are capacitor aging (polyester film capacitors can dry out), thermal stress from poor cabinet ventilation, power supply problems, or ESD damage during handling. The 14 test points make diagnostics easier but component drift is still common on older cards.
Q: How do I avoid a bad swap and rework?
A: Take a clear photo of the original board’s connectors and LED position, verify the exact model suffix (DS3800NSCC1E1D), confirm the system revision, and use the extractor clips properly when removing the old card. That prevents most rework and saves downtime. Keep these checks in mind and you’ll save yourself 90% of typical rework time.
