Key Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | GE Fanuc / Horner APG |
| Model | HE693THM809C |
| Product Type | Thermocouple Input Module |
| PLC Platform | Series 90-30 |
| Number of Channels | 8 |
| Supported Thermocouple Types | J, K, N, T, E, R, S |
| Resolution | 0.5 °C (or 0.5 °F) |
| Typical Accuracy | ±0.5 °C (Type J) |
| A/D Conversion | Integrating |
| A/D Conversion Time | 5 ms |
| Input Impedance | >20 MΩ |
| Maximum Safe Overload | ±35 V |
| Common Mode Range | ±12 V |
| Common Mode Rejection | >100 dB |
| Power Consumption | 70 mA @ 5 VDC, 60 mA @ 24 VDC |
| Operating Temperature | 0 °C to 60 °C |
| Relative Humidity | 5%–95%, non-condensing |
The HE693THM809C directly connects thermocouple sensors to a Series 90-30 PLC without requiring external transmitters or signal conditioners. The module performs all analog and digital signal processing internally and reports temperature values directly to the PLC.
Product Introduction
The GE Fanuc HE693THM809C is an eight-channel thermocouple input module designed for the Series 90-30 PLC platform. It accepts multiple industry-standard thermocouple types and converts low-level sensor signals into engineering values for process monitoring and temperature control.
The module eliminates the need for external transmitters by performing cold-junction compensation, signal conditioning, and analog-to-digital conversion internally. It is commonly installed in heat treatment equipment, furnaces, boilers, food processing systems, plastics machinery, and other temperature-controlled industrial processes.
HE693THM809C
HE693THM809C

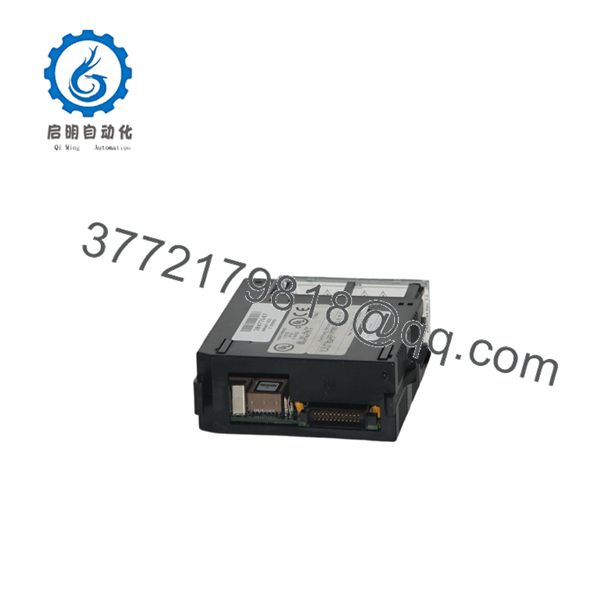

HE693THM809C
Troubleshooting Quick Reference
| Symptom | Possible Cause | Relevance | Quick Check Method | Recommendation |
|---|---|---|---|---|
| Temperature reads zero | Open thermocouple | ✅ High | Measure sensor continuity | Replace damaged sensor before replacing module |
| Unstable readings | Electrical noise or poor shielding | ✅ High | Inspect shield grounding and routing | Separate thermocouple wiring from power cables |
| Incorrect temperature | Wrong thermocouple type configured | ✅ High | Verify PLC hardware configuration | Match configuration to installed sensor type |
| All channels report faults | Module power or backplane issue | ✅ High | Verify PLC rack power LEDs | Check power supply and rack connections |
| One channel inaccurate | Damaged field wiring | ✅ Medium | Swap sensor with a known-good channel | Confirm whether fault follows the sensor |
| Temperature offset | Cold junction compensation problem | ✅ Medium | Compare with calibrated reference thermometer | Verify terminal block condition and ambient temperature |
| No module detected | Improper installation | ✅ Medium | Reseat module and inspect backplane connector | Verify slot configuration before replacement |
Field Tip: Most reported failures are caused by broken thermocouple wires, incorrect thermocouple selection, or electrical noise—not by the module itself. Before replacing the HE693THM809C, verify sensor continuity, wiring polarity, and PLC configuration. A simple continuity check often saves unnecessary downtime.
Frequently Asked Questions (FAQ)
Q1. What sensors are supported?
The HE693THM809C supports Type J, K, N, T, E, R, and S thermocouples, allowing one module to cover a wide range of industrial temperature measurement applications.
Q2. Do I need an external temperature transmitter?
No. The module accepts thermocouple inputs directly and performs signal conditioning, cold-junction compensation, and A/D conversion internally.
Q3. Can each channel use a different thermocouple type?
Yes. Each input channel can be configured for the appropriate supported thermocouple type within the PLC configuration software.
Q4. Is the HE693THM809C hot-swappable?
No. Remove power from the Series 90-30 rack before installing or removing the module. Replacing the module while energized may damage the PLC backplane or produce incorrect measurements.
Q5. Why are my temperature readings unstable?
The most common causes are:
- Open or damaged thermocouple wires
- Reversed thermocouple polarity
- Poor cable shielding
- Electrical interference from motor or VFD cables
- Incorrect thermocouple type selected in the PLC configuration
These issues are considerably more common than module failure.
Q6. Is this module still manufactured?
No. The belongs to the legacy Series 90-30 product family. Most available units are supplied as New Surplus or professionally refurbished inventory with functional testing.
Q7. What testing should be completed before shipment?
A qualified supplier should perform:
- Visual inspection for connector damage and corrosion
- Backplane communication verification
- Functional testing with calibrated thermocouple sources
- Channel accuracy verification
- Power consumption testing
- Anti-static packaging with serialized QC documentation
These inspections help confirm that the module is ready for installation in an operational Series 90-30 PLC system.
