GE Fanuc IC200UDR005 VersaMax Micro Controller

Description

3. Key Technical Specifications

4. Product Introduction & Supply Chain Strategy

The GE VersaMax Micro IC200UDR005 is a highly integrated, self-contained programmable logic controller (PLC) designed for small-scale industrial machinery, localized utility stations, and packaging skids. This compact unit combines a robust power supply, 16 24 Vdc discrete input channels (featuring four high-speed inputs for pulse counting or encoder feedback), and 12 high-capacity Form A relay outputs rated up to 2 A. Its dual built-in communication ports facilitate seamless connection to local HMIs, variable speed drives, or remote SCADA supervisory networks.

From a supply chain and lifecycle perspective, the IC200UDR005 is a legacy, discontinued system. Relying on refurbished microcontrollers introduces significant risks to your Total Cost of Ownership (TCO). Used PLCs often suffer from internal power supply degradation and worn contacts on their mechanical output relays after years of switching inductive loads. A single sticky relay can freeze a critical valve or conveyor, resulting in expensive troubleshooting and lost production. Sourcing this factory-sealed New Surplus controller provides a pristine, zero-hour system brain with uncompromised relay contact life and factory-fresh logic stability.

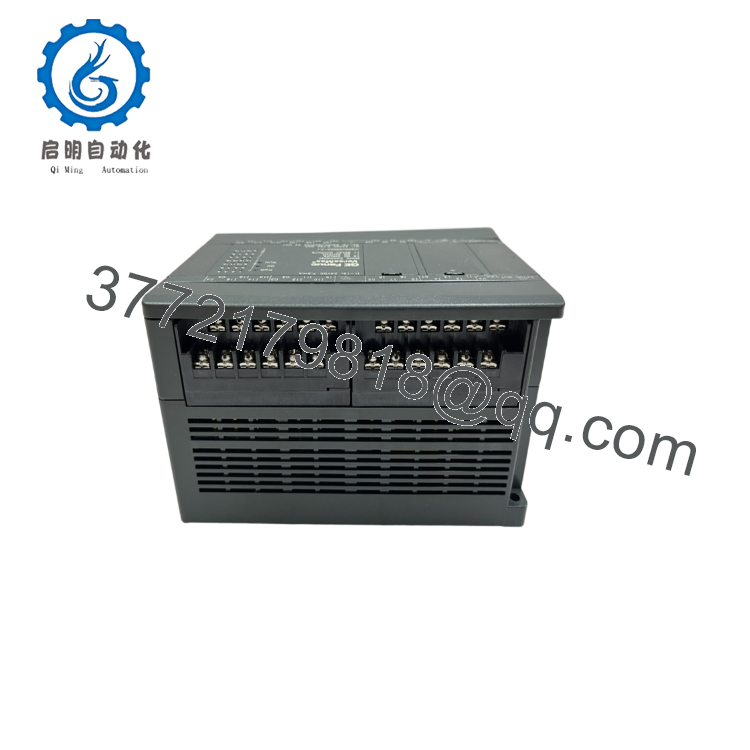

IC200UDR005

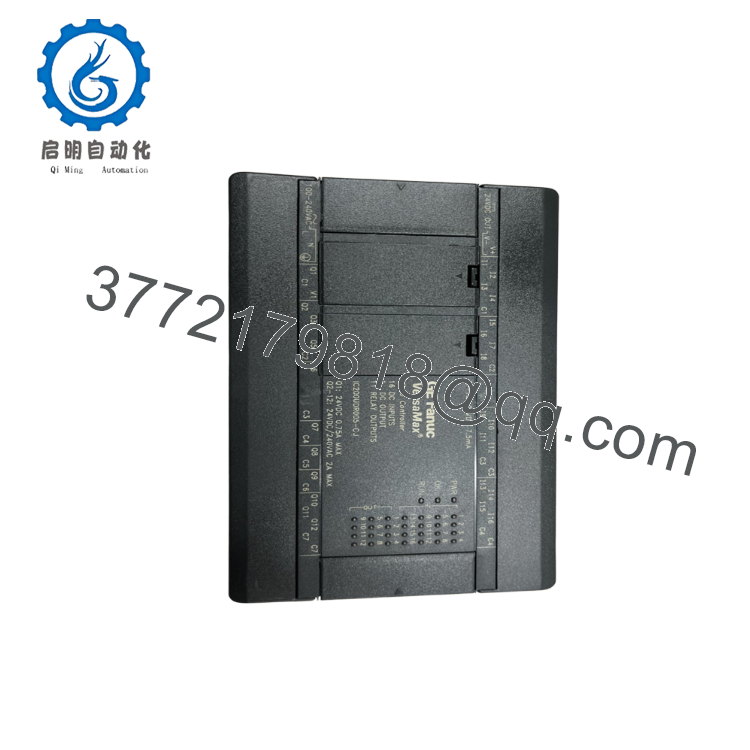

IC200UDR005

5. Installation & Configuration Guide

Stage 1: Pre-Installation (Prep & Safety)

• Power Isolation: De-energize the main cabinet supply. Lock out and tag out the primary AC breaker. Confirm that both the incoming AC power lines and all output relay lines register 0 V using a digital multimeter.
• Logic Retrieval: Connect a laptop to the existing controller’s RS-232 port and upload the current system logic program using Proficy Machine Edition or VersaPro.
• ESD Mitigation: Wear a grounded ESD wrist strap before handling the replacement PLC to safeguard internal logic microprocessors.

Stage 2: Removal

• Wiring Disconnection: Carefully label and disconnect all wiring from the terminal strips. Note the separate wire groups for AC line power, DC field inputs, and relay output loads.
• DIN Rail Release: Insert a flathead screwdriver into the plastic release latch at the bottom edge of the PLC housing and pull downward.
• Extraction: Tilt the lower portion of the controller outward and lift the chassis off the DIN rail.

Stage 3: Installation (Clone & Seat)

• Physical Mounting: Angle the top groove of the new IC200UDR005 onto the top of the 35 mm DIN rail. Press the lower half of the housing toward the rail until the spring-loaded latch snaps securely into place.
• Wiring Termination: Reconnect the labeled wires to their corresponding terminal screws. Ensure terminal screws are torqued properly to prevent high-resistance connections on the 2 A relay pathways.
• Communications Hookup: Plug the serial cables back into the RS-232 RJ-45 port or the RS-485 screw terminals as configured in your network layout.

Stage 4: Power-On & Testing

• Cold Resistance Check: Run a quick resistance test across the AC supply input terminals (L1 and N) to confirm no ground faults or short circuits were introduced during wiring.
• Power Application: Energize the primary AC circuit breaker.
• Program Loading & Validation: Verify that the green “PWR” LED illuminates. Connect your engineering software, download the saved configuration and logic program, and verify that the CPU enters “RUN” mode without flagging system errors.

6. Firmware/Software Versions & Upgrade Notes

The IC200UDR005 utilizes internal flash firmware to run its executive operating system. Standard programming, configuration, and diagnostics are typically managed via Proficy Machine Edition (version 5.00 or higher) or the legacy VersaPro development package.

When replacing an older controller on an existing line, always cross-reference the firmware version of the New Surplus unit with your saved software project file. If your program relies on specific Modbus RTU Master functions or complex math scaling functions introduced in later VersaMax Micro iterations, you may need to verify that the controller’s firmware matches that minimum revision level. To avoid compatibility issues, retrieve the configuration settings from the running PLC before removing it, and write them directly to the replacement unit.

7. Frequently Asked Questions (FAQ)

• Why is buying a New Surplus IC200UDR005 superior to purchasing a refurbished one? Refurbished micro PLCs have usually spent years energized inside hot, enclosed control panels, which degrades the internal power supply capacitors and wears down the mechanical output relay contacts. Because these relay points have a finite mechanical lifespan, a used unit is much more prone to stuck or failed outputs. Our New Surplus controllers have never been run in production, offering zero-hour reliability, maximum relay lifespan, and pristine logic stability.
• Does this PLC require an external 24 Vdc power supply to run? No. The IC200UDR005 features an internal power supply that runs directly on standard 120/240 Vac utility power. Furthermore, it provides an onboard auxiliary DC power output (typically 24 Vdc @ 200 mA) that you can use to power your local sensors and input switches, simplifying your cabinet wiring.
• Can I run high-speed counter applications with this controller? Yes. Out of the 16 available 24 Vdc inputs, four channels are configured as high-speed inputs supporting pulse rates up to 10 kHz. These are ideal for interfacing directly with incremental rotary encoders, proximity sensors, or high-speed flow meters.
• Can I interface an HMI and a SCADA network to this PLC at the same time? Yes, the controller features two independent communication ports. Port 1 is an RS-232 serial interface using an RJ-45 modular connector, typically used for local HMI screens or programming laptops. Port 2 is an isolated RS-485 serial interface with screw terminals, ideal for long-distance multi-drop daisy chains (such as Modbus RTU network lines).
• Is this PLC hot-swappable? No. Standalone compact PLCs are never hot-swappable. Working on the terminal lines while the controller is energized introduces severe shock hazards from the 120/240 Vac power supply and output relay circuits. It can also cause electrical shorts that can permanently destroy the internal CPU logic. Always isolate all power sources before servicing.
