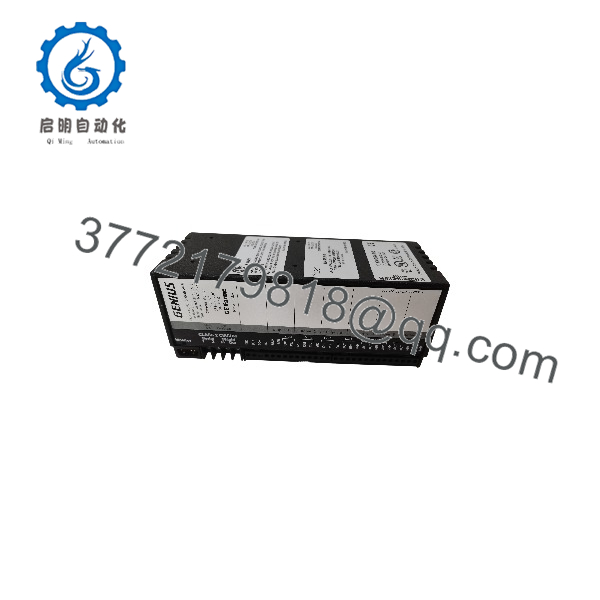

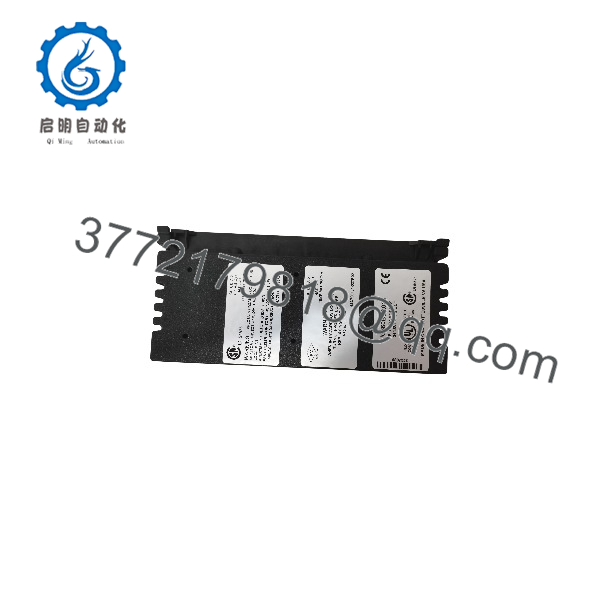

GE Fanuc IC660BBA025 Genius I/O Analog Block

Description

Key Technical Specifications

Product Introduction & Supply Chain Strategy

The GE Fanuc IC660BBA025 is a smart analog I/O block engineered for GE Genius I/O distributed automation architectures. Operating on a 115 VAC or 125 VDC power backbone, it digitizes process signals from flow meters, pressure transmitters, and control valves, executing onboard channel diagnostics and transmitting data via the noise-tolerant Genius serial bus directly to PACSystems RX3i or Series 90-30/90-70 controllers.

Maintaining a New Surplus GE Fanuc IC660BBA025 block in your local spare parts vault is a vital risk-mitigation policy. Because the legacy Genius I/O line faces limited OEM manufacturing runs, sudden block failures on mature DCS and PLC lines can force long factory lead times or expensive unbudgeted system migrations. Sourcing genuine New Surplus guarantees unaged signal filtering capacitors, pristine terminal block contact springs, and factory-fresh EEPROM memory—preventing the measurement drift, calibration loss, and communication faults typical of refurbished units.

IC660BBA025

IC660BBA025

Installation & Configuration Guide

Stage 1: Pre-Installation (Prep & Safety)

1. Execute full Lock-Out/Tag-Out (LOTO) protocols on the main 115 VAC / 125 VDC power circuit feeding the Genius I/O block.
2. Put on an anti-static wrist strap grounded to the panel frame before handling the block electronics assembly.
3. Verify that the Genius Hand-Held Monitor (HHM) or PACSystems software configuration matches the assigned Serial Bus Address (SBA) for this slot.

Stage 2: Removal

1. Loosen the central retaining screw on the IC660BBA025 block housing.
2. Unlatch the electronics assembly from its surface-mounted terminal assembly base.
3. Slide the electronics housing straight up and off the base connector pins without twisting, preventing pin bending on the terminal assembly. Place the original unit in ESD-shielded packaging.

Stage 3: Installation (Clone & Seat)

1. Unpack the new GE Fanuc IC660BBA025 electronics assembly from its original protective box.
2. Align the connector guides on the back of the module with the pin header on the existing terminal assembly.
3. Push the module firmly onto the base until seated flush, then hand-tighten the central retaining screw to ensure earth ground continuity.

Stage 4: Power-On & Testing

1. Re-apply 115 VAC / 125 VDC operating power to the block.
2. Monitor front panel diagnostic LEDs: verify the UNIT OK LED lights solid green and the I/O OK LED indicates valid channel scanning.
3. Use a Genius HHM or host programming software to verify that analog inputs (4–20 mA / 0–10 V) register accurate process engineering units across all active channels.

Firmware/Software Versions & Upgrade Notes

• Software Configuration: Channel operating ranges (e.g., 4–20 mA vs 0–10 V), alarm thresholds, and filter timing are configured digitally via software or a Genius Hand-Held Monitor (HHM) and stored in non-volatile internal block memory.
• Smart Block Compatibility: Ensure your host Genius Bus Controller (e.g., IC693BEM331 or IC697BEM731) firmware revision supports 12-bit analog block definitions.
• Configuration Replication: When replacing an IC660BBA025 module, re-assign the identical SBA (Serial Bus Address) via the HHM tool or allow auto-configuration from the master controller to restore channel calibration curves.
• Hot-Swapping Warning: While Genius terminal bases allow electronics assembly replacement while the field wiring remains connected, always isolate the 115 VAC / 125 VDC block power before unseating the electronics package to prevent arcing across backplane header pins.

Frequently Asked Questions (FAQ)

Q: How can I verify that this GE Fanuc block is 100% Brand New Surplus?

A: Every unit we offer is 100% Brand New Surplus. It arrives in clean, original GE Fanuc factory packaging, complete with pristine connector pin sockets, unblemished outer housing plastic, authentic OEM serial tags, and untouched internal circuit boards. It has never seen field service or energization.

Q: Why is buying New Surplus preferable to choosing a refurbished Genius I/O block?

A: Analog processing blocks rely on high-precision internal reference voltage sources and noise-filtering capacitors that degrade under decades of thermal exposure. Refurbished units frequently contain aged components near their breakdown threshold, resulting in signal drift, calibration loss, and false process alarms. New Surplus guarantees factory-calibrated accuracy and full operational longevity.

Q: Is the terminal base included with the electronics module?

A: The part number refers to the complete block assembly (or replacement electronics module depending on packaging configuration). If you require a standalone terminal block base (e.g., IC660TBA… series), contact our team to verify exact ordering requirements.

Q: What operating voltage does this specific analog block require?

A: The operates on a nominal 115 VAC or 125 VDC auxiliary power supply. Ensure your control cabinet power rail matches these voltage specifications before energizing.

Q: Does this block retain its configuration during a long power outage?

A: Yes. System configurations, SBA addresses, and channel parameters are stored in non-volatile EEPROM memory within the block housing, preserving parameters indefinitely without internal back-up batteries.

Q: What warranty coverage comes with this module?

A: We support this Genius I/O block with a full 1-Year Warranty. Every unit undergoes thorough visual, mechanical, and power verification checks before dispatch.
