Key Technical Specifications
| Parameter | Value / Specification |
| Manufacturer | GE Fanuc / Emerson Automation |
| Part Number | IC693PWR330 |
| PLC Compatibility | Series 90-30 Base Plates (CPU Slot / Slot 0 Left-Mount) |
| Input Voltage Range | 85 V AC to 264 V AC (47–63 Hz) / 100 V DC to 300 V DC |
| Total Power Rating | 30 Watts maximum total output |
| +5 V DC Output Capacity | Up to 15 Amps (30 W max on +5 V rail alone) |
| +24 V DC Relay Power | 0.8 Amps maximum (+24 V DC Relay) |
| +24 V DC Isolated Power | 0.8 Amps maximum (+24 V DC Isolated) |
| Fusing Protection | Internal 2 A slow-blow fuse |
| Operating Temperature | 0 °C to +60 °C (32 °F to 140 °F) |
| Storage Temperature | −40 °C to +85 °C (−40 °F to 185 °F) |
| Diagnostics | PWR LED (Green) / OK LED (System status indicator) |
Product Introduction & Supply Chain Strategy
The GE Fanuc IC693PWR330 is a high-capacity 30-Watt power supply module engineered for GE Series 90-30 PLC base plates. Operating across wide AC and DC input ranges, it supplies regulated +5 V DC logic power to CPU cards and high-density I/O modules, as well as dual +24 V DC rails for internal relay coils and field transmitter loops.
Maintaining a New Surplus GE Fanuc IC693PWR330 module on-site is a vital risk-management strategy for facilities dependent on legacy Series 90-30 racks. Power supply modules endure continuous electrical and thermal stress, making them the primary failure point during utility power surges or plant restarts. Sourcing genuine New Surplus guarantees pristine internal transformer windings, unaged filter capacitors, and untouched backplane edge connectors—eliminating the voltage instability, logic resets, and sudden shutdown risks inherent to second-hand or refurbished power cards.
Installation & Configuration Guide
Stage 1: Pre-Installation (Prep & Safety)
- De-energize the incoming 120/240 V AC or 125 V DC main power line and execute strict Lock-Out/Tag-Out (LOTO) protocols.
- Verify zero potential on input power terminals using a calibrated digital multimeter.
- Put on an anti-static wrist strap grounded to the panel frame before mounting or touching backplane connectors.
Stage 2: Removal
- Unplug the 5-point hinged input terminal strip on the front face of the old power supply module.
- Disengage the top retaining clip holding the power module to the left-most slot of the Series 90-30 baseplate.
- Tilt the top of the module forward slightly and lift the bottom hook out of the baseplate slot. Place the old card into anti-static protective storage.
Stage 3: Installation (Clone & Seat)
- Unpack the new GE Fanuc IC693PWR330 unit from its static-shielded box.
- Hook the lower tab of the IC693PWR330 into the left-hand slot (Slot 0) of the Series 90-30 baseplate.
- Pivot the module upward and press firmly until the top retaining clip snaps securely into the baseplate frame.
- Re-attach the pre-wired 5-point terminal block to the module face and secure terminal screws.
Stage 4: Power-On & Testing
- Verify line voltage polarity (L1, L2/N, Ground) and ensure frame ground jumpers are connected.
- Apply input power. Confirm the front panel PWR LED lights solid green.
- Verify the host CPU boots properly and the system OK indicator illuminates, confirming stable +5 V DC logic distribution across all backplane slots.

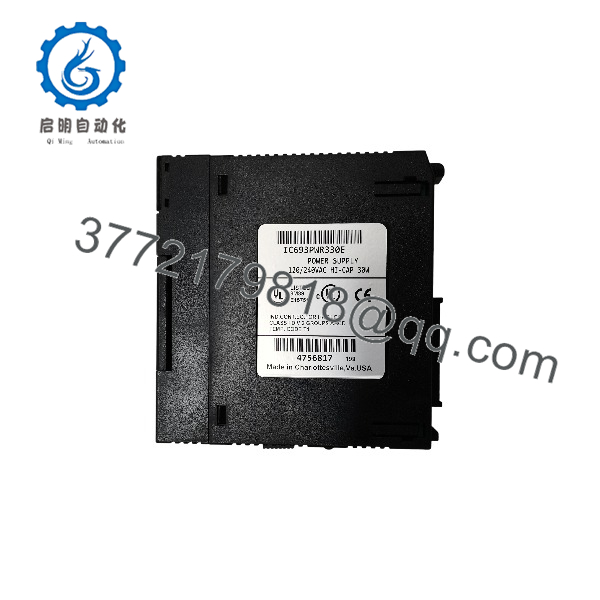

IC693PWR330

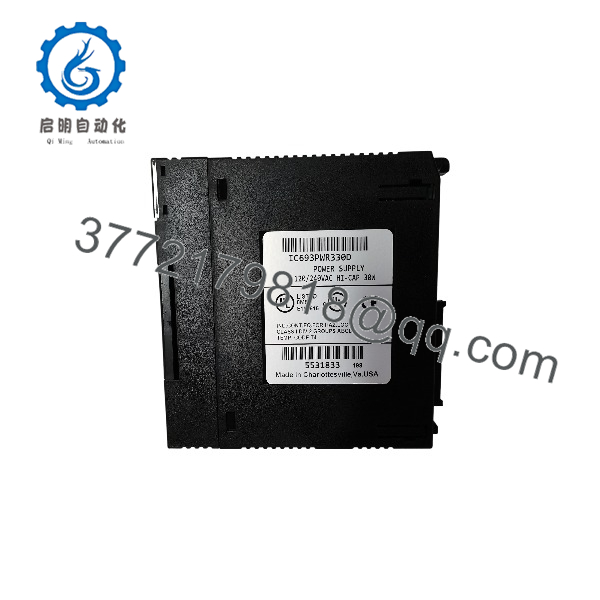

IC693PWR330
Firmware/Software Versions & Upgrade Notes
- Hardware Power Rail: The IC693PWR330 is an electromechanical power conversion card and does not execute software or programmable firmware.
- Power Budget Calculation: When adding high-density I/O or communication modules (e.g., Ethernet or Genius Bus Controllers) to a Series 90-30 rack, total +5 V DC draw must remain under 15 Amps / 30 Watts total load to avoid overcurrent shutoff.
- Standard vs High-Capacity: The (30W) replaces lower-capacity standard units (such as the IC693PWR321 15W model) in racks with expanded I/O counts or heavy option card draws.
- Hot-Swapping Warning: Always shut off input power before removing or installing the power supply module. Extracting the power card under live load causes backplane voltage drops that will crash active CPU logic and risk electrical arcing across backplane pins.
Frequently Asked Questions (FAQ)
Q: How can I confirm that this GE Fanuc module is 100% Brand New Surplus?
A: Every unit we offer is 100% Brand New Surplus. It arrives in clean original GE Fanuc factory packaging, featuring untouched terminal block screws, unblemished backplane edge connectors, pristine housing plastic, and intact factory serial stickers. It has never seen field service or panel installation.
Q: Why is buying New Surplus power supplies safer than buying refurbished units?
A: Power supplies contain primary electrolytic smoothing capacitors that degrade continuously over time under elevated ambient temperatures. Refurbished power supplies often retain aged capacitors near their end-of-life threshold, leading to excessive DC voltage ripple, logic dropouts, and premature card failure. New Surplus units provide factory-fresh component longevity and stable power delivery.
Q: What is the main difference between the IC693PWR321 and the ?
A: The IC693PWR321 is a standard-capacity 15-Watt power supply, whereas the is a high-capacity 30-Watt power supply capable of supplying up to 15 Amps on the +5 V DC logic rail—essential for fully populated 10-slot baseplates.
Q: Does this power supply support 125 V DC input power?
A: Yes. The is dual AC/DC rated and accepts input voltages ranging from 85 to 264 V AC or 100 to 300 V DC on its input terminals.
Q: Can this module be installed in any slot on the Series 90-30 baseplate?
A: No. The must always be installed in the dedicated left-most power supply slot (Slot 0) of a Series 90-30 expansion or CPU baseplate.
Q: What warranty coverage comes with this power supply module?
A: We support this high-capacity power supply with a comprehensive 1-Year Warranty. Every module undergoes visual, mechanical, and power output verification prior to dispatch.
