GE HE693DAC410C Series 90-30 Analog Output Module

Description

3. Key Technical Specifications

4. Product Introduction

The GE HE693DAC410C is a four-channel analog voltage output module for the GE Series 90-30 PLC platform. It converts digital values from the PLC CPU into precise ±10 VDC analog signals used to control variable frequency drives (VFDs), control valves, actuators, and other analog field devices.

Each output channel is electrically isolated to improve noise immunity in industrial environments. The module delivers 13-bit resolution and is well suited for continuous process control applications where stable analog output and repeatable performance are required. Before replacement, verify that the application requires the voltage-output version (HE693DAC410C) rather than the current-output variant (HE693DAC420).

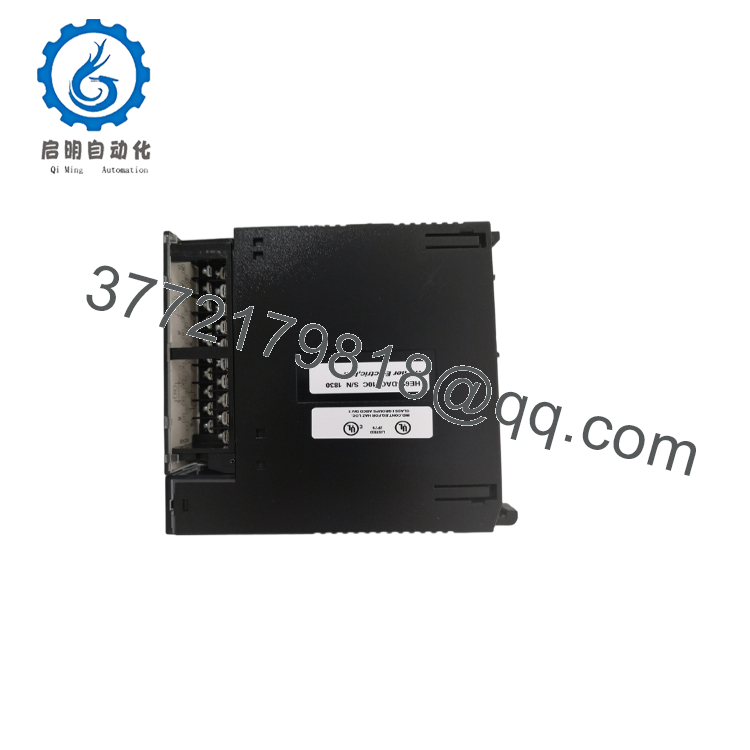

HE693DAC410C

HE693DAC410C

5. Installation & Configuration Guide

Stage 1 – Pre-Installation Preparation (10 minutes)

⚠️ Safety First

1. Notify operations of the planned maintenance.
2. Follow Lock-Out/Tag-Out (LOTO) procedures.
3. Remove power from the PLC rack.
4. Wait at least 5 minutes before servicing.
5. Wear a grounded ESD wrist strap.

Tools Required

• ESD wrist strap
• Phillips screwdriver
• Digital multimeter (Fluke 115 or equivalent)
• Wire labels
• Smartphone for wiring documentation

Data Backup

• Save the PLC project and hardware configuration.
• Record analog scaling values.
• Photograph terminal wiring.
• Document output assignments for each channel.

Stage 2 – Removing the Existing Module (5–10 minutes)

1. Turn off rack power.
2. Label every field wire.
3. Remove the terminal block.
4. Release the module retaining clip.
5. Pull the module straight out.
6. Inspect the backplane connector for bent pins or contamination.

⚠️ Keep the original module until the replacement has completed commissioning.

Stage 3 – Installing the New Module (10 minutes)

1. Verify the complete model number HE693DAC410C.
2. Confirm the application requires voltage outputs (±10 V).
3. Insert the module fully into the rack.
4. Lock the retaining clip.
5. Reinstall the terminal block.
6. Verify all field wiring.

Self-Checklist

• ✔ Correct model installed
• ✔ Terminal block secured
• ✔ Rack connector fully seated
• ✔ Output wiring verified
• ✔ Grounding confirmed

Stage 4 – Power-On & Functional Testing (15 minutes)

Pre-Power Checks

• Verify rack power supply.
• Confirm wiring polarity.
• Check for short circuits on analog outputs.

Startup Procedure

1. Apply PLC power.
2. Verify CPU recognizes the module.
3. Download the hardware configuration if required.
4. Measure each analog output with a calibrated multimeter.
5. Verify scaling at 0%, 50%, and 100% output.
6. Confirm field devices respond correctly.

⚠️ Troubleshooting

• No analog output: Verify the PLC hardware configuration includes the module.
• Incorrect voltage: Check engineering unit scaling and calibration.
• Channel noise: Inspect grounding and shield termination.
• Output saturated: Verify the field device input impedance is at least 2 kΩ.

6. Frequently Asked Questions (FAQ)

Q1. Is the HE693DAC410C a voltage or current output module?

It is a 4-channel voltage output module providing ±10 VDC analog outputs. If your application requires 4–20 mA outputs, the appropriate model is HE693DAC420.

Q2. Can this module be hot-swapped?

No. The Series 90-30 platform was not designed for hot replacement of analog I/O modules. Always remove rack power before installing or removing the module.

Q3. Is the HE693DAC410C still manufactured?

No. It is a legacy Series 90-30 module. Most available inventory today consists of New Surplus units or professionally tested refurbished modules that support existing installations.

Q4. What types of equipment can this module control?

Typical applications include:

• Variable Frequency Drives (VFDs)
• Control valves
• Analog actuators
• Servo amplifiers
• Process controllers
• Industrial instrumentation requiring ±10 VDC reference signals

Q5. Why should I verify the output type before ordering?

This is one of the most common ordering mistakes. The HE693DAC410C provides voltage outputs, while the HE693DAC420 provides current outputs. Installing the wrong module may prevent field devices from operating correctly.

Q6. Why is New Surplus inventory less expensive than original OEM pricing?

New Surplus modules typically originate from unused project inventory or excess distributor stock. They are genuine OEM components but are no longer in active production, which generally results in lower pricing than historical factory list prices.

Q7. What should be verified before returning the PLC to service?

An experienced commissioning engineer should confirm:

• Correct module model
• Proper rack recognition
• Accurate analog scaling
• Stable ±10 V output on all four channels
• Proper field wiring
• Input impedance compatibility
• Successful PLC diagnostics
• Correct operation of connected field devices

These verification steps help eliminate most startup issues and ensure accurate analog control after module replacement.
