3. Key Technical Specifications
| Parameter | Value |
|---|---|
| Points | 16 discrete outputs |
| Voltage | 12/24 VDC positive logic |
| Current per Point | 0.5 A maximum |
| Response Time | 0.2 ms on, 1.0 ms off |
| Operating Temperature | 0 to 60°C |
| Isolation | Optical isolation |
| Group | One group of 16 |
| Mounting | VersaMax carrier |
4. Product Introduction

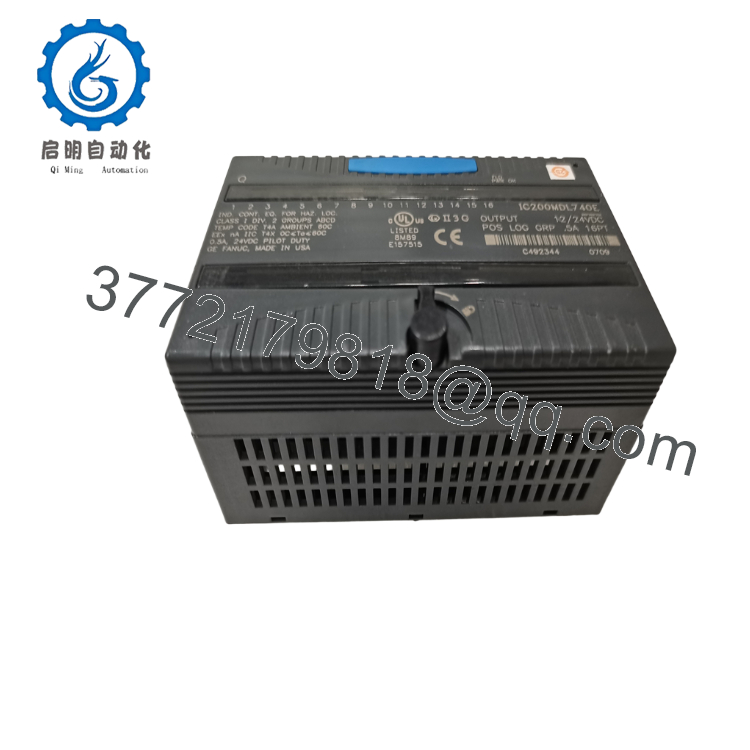

The GE Fanuc IC200MDL740E is a 16-Point Digital Output Module for the VersaMax I/O platform. It provides positive logic 12/24 VDC outputs rated at 0.5 A per point for driving solenoids, relays, and indicators.
This module delivers reliable switching in machine control and automation systems. It snaps into a VersaMax carrier for easy integration into distributed I/O networks.
- IC200MDL740E
- IC200MDL740E
5. Troubleshooting Quick Reference
| Symptom | Possible Cause | Relevance to this Part | Quick Check Method | Recommendation |
|---|---|---|---|---|
| Outputs not energizing | Power or wiring issue | ✅ High | Measure voltage at output terminals | Check field power and wiring |
| Output stays on | Stuck relay or short | ✅ High | Disconnect load and test | Replace module if faulty |
| Overcurrent trip | Load exceeds rating | ✅ Medium | Measure current draw | Reduce load or add interposing relay |
| No response in software | Configuration error | ✅ High | Verify I/O mapping | Check PLC configuration |
| Module LED off | No power | ❌ Low | Verify carrier supply | Check backplane power |
Contact technical support with output status and wiring diagrams if needed.
6. Frequently Asked Questions (FAQ)
Is the IC200MDL740E hot-swappable? No. Power down the I/O station before replacement.
What is the output rating? 0.5 A per point at 12/24 VDC, positive logic.
Condition of the unit? New Original / New Surplus with full functional testing.
How many outputs per module? 16 points in one group.
Does it require external power? Yes, field power for the outputs (12/24 VDC).
Warranty? 1-year warranty.
Common issues during setup? Exceeding per-point current limits or reversed polarity on field power. Always fuse outputs appropriately for protection.
