3. Key Technical Specifications
| Parameter | Value |
|---|---|
| Channels | 8 analog inputs |
| Input Type | Current source |
| Resolution | Standard Field Control |
| Operating Temperature | 0 to 55°C |
| Isolation | Grouped |
| Mounting | Field Control base |
| Application | Process monitoring |
4. Product Introduction

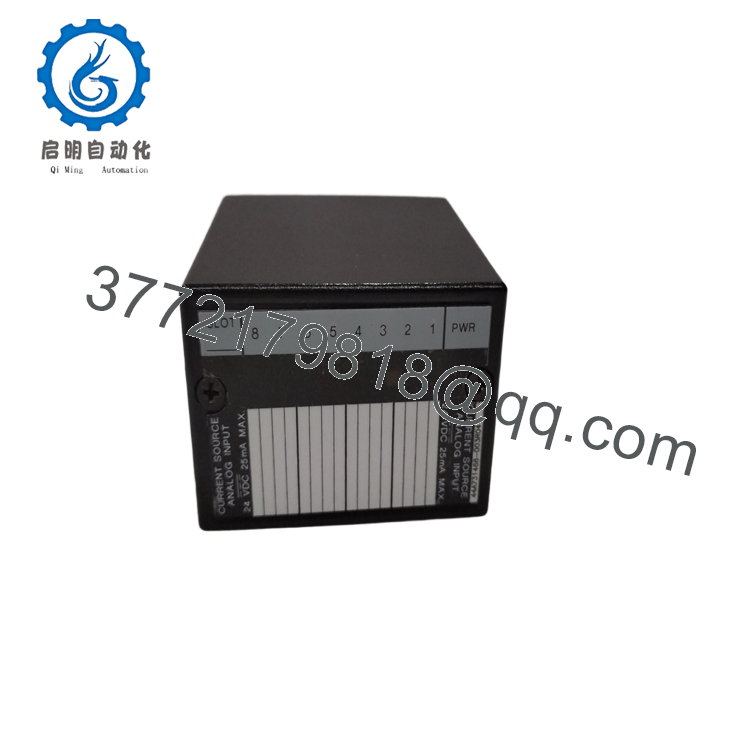

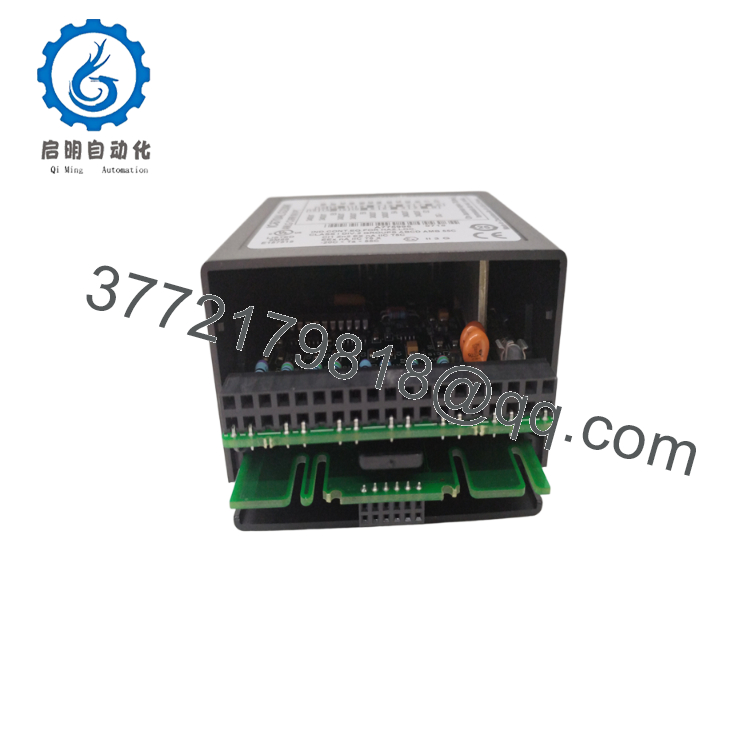

The GE Fanuc IC670ALG230K is an 8-Channel Analog Input Module for the Field Control distributed I/O system. It converts current signals from field transmitters into digital values for the PLC.
This module is designed for reliable analog data acquisition in distributed control architectures.
- IC670ALG230K
- IC670ALG230K
5. Troubleshooting Quick Reference
| Symptom | Possible Cause | Relevance to this Part | Quick Check Method | Recommendation |
|---|---|---|---|---|
| No readings | Wiring or power | ✅ High | Measure loop current | Verify 4-20 mA loop |
| Inaccurate values | Scaling error | ✅ High | Check configuration | Adjust scaling in software |
| Channel fault | Open loop | ✅ High | Check transmitter | Replace wiring or transmitter |
| Module not responding | Bus issue | ✅ Medium | Check Field Control diagnostics | Verify bus connections |
| Noise | Shielding problem | ✅ Medium | Inspect cabling | Improve shielding |
Contact technical support with configuration and signal values.
6. Frequently Asked Questions (FAQ)
Is the IC670ALG230K hot-swappable? Check Field Control base design. Generally, power down for safety.
How many channels? 8 analog current inputs.
Condition? New Original / New Surplus.
Input range? Typically 4-20 mA current source.
Software needed? Configured through the host PLC programming software.
Warranty? 1-year warranty.
