GE IC693MDL645 Series 90-30 24 VDC 16-Point Input Module

Description

3. Key Technical Specifications

4. Product Introduction & Supply Chain Strategy

The GE IC693MDL645 is a high-density, 16-point discrete input module designed to interface field sensor devices with the Series 90-30 programmable logic controller backplane. Operating at a nominal 24 VDC, this input card easily accommodates both positive and negative logic configurations (sinking or sourcing) via a single, isolated common terminal group. Armed with a built-in input filtering delay of 7 milliseconds, the module isolates external contact bounce and electrical noise, providing reliable, clean state transitions to the CPU processor.

From a supply chain perspective, maintaining this module as a “New Surplus” asset is vital for plants running on mature Series 90-30 platforms. As the entire product series has transitioned to End-of-Life (EOL), direct factory replacements are no longer an option. Opting for cheaper, refurbished units poses severe risks; degraded optocouplers on used cards can result in intermittent signal drops, leading to ghost faults that halt operations. Investing in verified New Surplus stock protects your Total Cost of Ownership (TCO) by keeping automated processes online and preventing long lead-time production standstills.

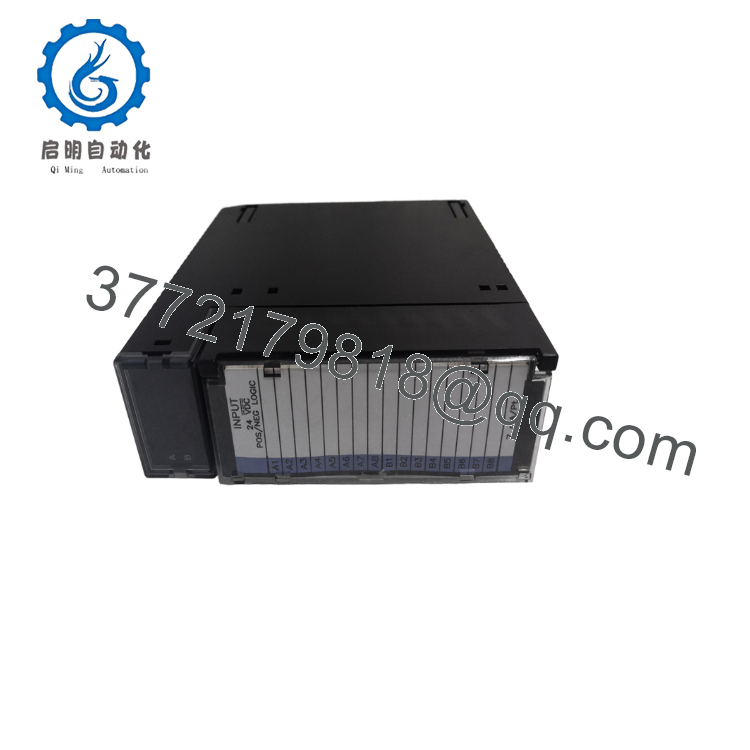

IC693MDL645

IC693MDL645

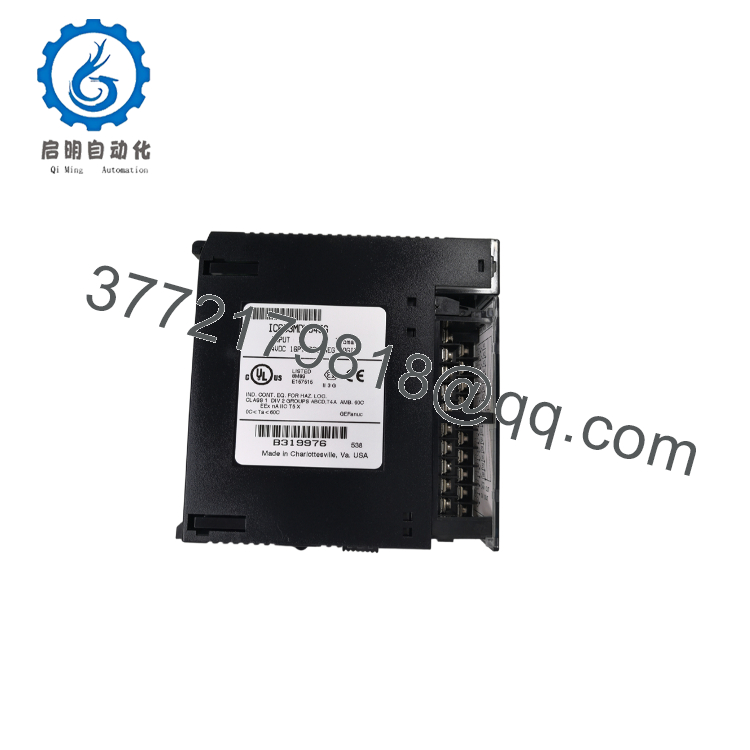

IC693MDL645

5. Installation & Configuration Guide

Stage 1: Pre-Installation (Prep & Safety)

• Power down the target PLC rack. Do not attempt live hardware installation.
• Put on a grounded ESD-safe wrist strap before extracting the module from its packaging.
• Document the wiring assignments or take a digital photograph of the terminal block assembly if you are swapping out an existing card.

Stage 2: Removal

• Unscrew and pull the removable terminal block outward from the face of the old module. Set the wired block aside carefully without disconnecting the field wiring.
• Firmly squeeze the release tabs situated at the top and bottom of the module housing.
• Pull the module straight out of the slot, keeping it perpendicular to the chassis backplane to avoid bending any connection pins.

Stage 3: Installation (Clone & Seat)

• Inspect the rear edge connector pins on the new IC693MDL645 to ensure they are straight and clean.
• Align the module with the card guides of the designated I/O slot (Slots 2 through 5 on a 5-slot chassis, or 2 through 10 on a 10-slot chassis).
• Slide the module in and press firmly at the top and bottom until the latches click into place.
• Slide the pre-wired terminal block back into the module face and tighten the retaining screw to secure the field wiring connection.

Stage 4: Power-On & Testing

• Re-energize the main line voltage to the PLC system.
• Verify the CPU enters RUN mode without asserting any configuration faults.
• Check that individual input channel LEDs light up on the module faceplate as corresponding field devices are manually actuated.
• Run a quick program handshake using your programming terminal to confirm that input status registers (%I) update in real-time.

6. Firmware/Software Versions & Upgrade Notes

• Baseline Architecture: The IC693MDL645 is a hardware-only component and does not contain firmware.
• Hardware Revisions: Minor design modifications have occurred over its lifecycle (denoted by suffixes such as IC693MDL645LT or newer). All hardware index variations are backwards compatible.
• Compatibility Risk Profile: There are no firmware dependencies or software platform restrictions for this module. It functions seamlessly across all CPU models and is fully supported by all programming software packages, including Logicmaster 90, VersaPro, and Proficy Machine Edition.

7. Frequently Asked Questions (FAQ)

• Q: Is this IC693MDL645 module brand new, or is it a repaired, second-hand card?
  • A: This product is a Brand New Surplus unit. It is not used, not pulled from a decommissioned plant, and not refurbished. These modules are unused, zero-runtime units sourced from surplus corporate stock or cancelled projects. Each unit is inspected and repackaged with ESD protection before shipment.
• Q: Why does the pricing run higher than refurbished modules but lower than traditional factory direct prices?
  • A: Our pricing reflects the cost of securing genuine New Surplus inventory globally. It may be 20-30% higher than a refurbished gamble, but it is substantially less than OEM list prices, and it buys you 100% peace of mind. Refurbished parts are prone to optocoupler failure and aged circuitry, whereas our New Surplus parts offer a full factory-level operational lifespan.
• Q: Since this series is EOL, is it wise to hold spares on-site?
  • A: Yes, it is highly recommended. For critical slow-moving or legacy parts, maintaining 1 to 2 spare modules in on-site inventory is a crucial buffer stock strategy. It ensures that if a field electrical surge damages an active module, you can swap it out within minutes rather than suffering days of downtime waiting for replacement parts.
• Q: Does this module support both 24 VDC positive and negative logic configurations?
  • A: Yes. The IC693MDL645 is designed to operate with either positive (sinking) or negative (sourcing) field logic. However, because all 16 input points share a single common return on the terminal block, you must configure the entire card to use either sinking or sourcing logic uniformly; you cannot mix logic types on a single module.
• Q: Can this 24 VDC module be hot-swapped while the rack is under power?
  • A: No. The Series 90-30 platform backplane does not support hot-swapping of modules. Removing or inserting an I/O card while the rack power supply is active can cause electrical arcs, damage the backplane connectors, and trigger a CPU system halt.
• Q: What warranty coverage accompanies this New Surplus module?
  • A: This IC693MDL645 is backed by a comprehensive 1-year replacement warranty. In the rare event of a hardware malfunction within 12 months, we will supply a replacement unit promptly, providing your operations with long-term security.
