Key Technical Specifications
- Model: IS200BPIBG1A
- Brand: General Electric
- Series: Mark VI / EX2100
- Module Type: Phase logic interface module
- Application: Excitation control systems
- Parallel Configuration: Up to 6 driver boards
- Status: Discontinued by OEM
- Category: Drive board
- Weight: About 1.00 lb
- Ordering Note: Exact suffix match required
- Condition: New Surplus or Refurbished, depending on stock
Product Introduction

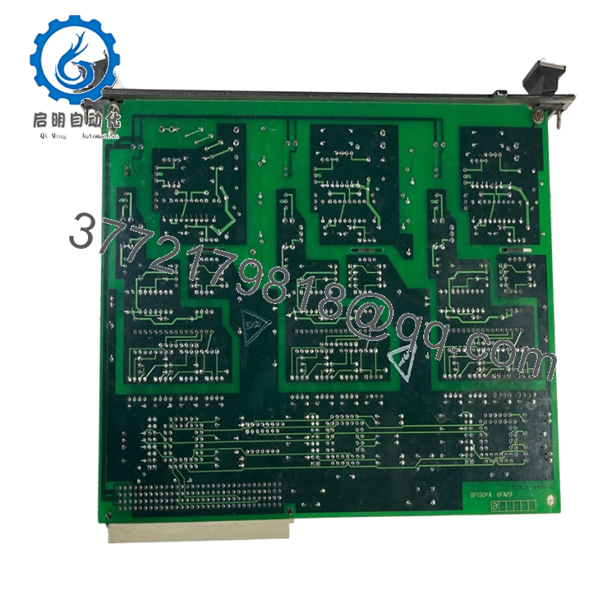

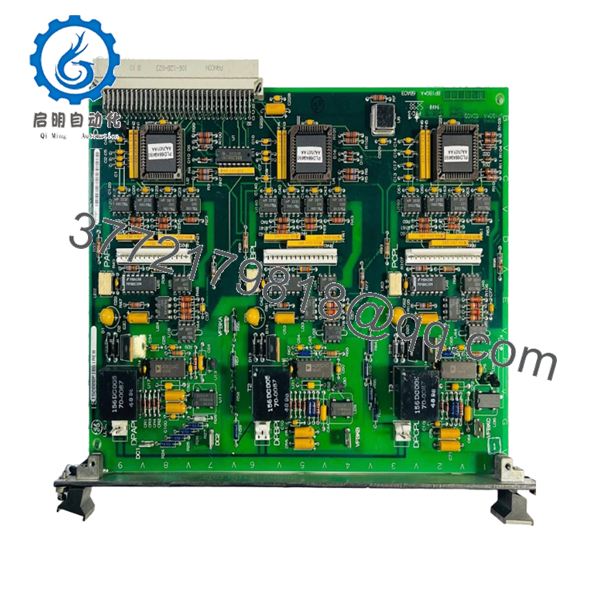

GE IS200BPIBG1A is a phase logic interface module used in GE excitation and Mark VI control systems. It handles logic interfacing in legacy industrial drive and excitation applications where board compatibility matters.
Buyers usually replace it as a direct-fit spare for obsolete GE hardware. The main risks are suffix mismatch, wrong series assumption, and swapping it into a rack without confirming the site configuration first.
Troubleshooting Quick Reference
| Symptom | Possible Cause | Relevance to This Part | Quick Check Method | Recommendation |
|---|---|---|---|---|
| Phase logic alarms after install | Wrong suffix or incompatible revision | ✅ High | Compare the full part number on the board against the failed unit | Verify exact suffix before power-up |
| Board not recognized by the drive | Connector or rack mismatch | ✅ High | Inspect the connector fit and verify rack type against OEM docs | Do not force installation |
| Intermittent control faults | Loose connection or wiring issue | ✅ High | Reseat the board and check adjacent wiring continuity with a meter | Check cabinet wiring before replacing again |
| Other drive modules also fault | Upstream controller or power issue | ❌ Low | Check rack power, controller LEDs, and other boards first | Confirm the fault follows this board |
| Fault appears after warm-up | Aging components or thermal stress | ✅ Medium | Run the system under load and watch for temperature-related dropout | Replace if the problem repeats with heat |
| No output from phase logic path | External signal path problem | ❌ Low | Verify input and output signals at the terminal blocks | Trace field wiring before blaming the board |
If you are stuck, send technical support clear photos of the board, the suffix marking, and the cabinet diagnostics.
- IS200BPIBG1A
- IS200BPIBG1A
Frequently Asked Questions
Q: What is the IS200BPIBG1A used for?
A: It is a GE phase logic interface module used in Mark VI and EX2100 excitation control applications. It sits in legacy drive and control hardware, not a general-purpose PLC rack.
Q: Is this part still in production?
A: No. It is an obsolete GE part, so most available stock is surplus or refurbished.
Q: Can I swap IS200BPIBG1A with a similar-looking GE board?
A: Not without checking the exact suffix and system compatibility. On GE legacy hardware, similar boards can still have different functions or connector behavior.
Q: Is it hot-swappable?
A: No, not unless the OEM documentation explicitly says so. Power the cabinet down first and verify safe handling before removing it.
Q: Why is this part usually cheaper than a factory-new unit?
A: Because it is discontinued and sourced from surplus channels. Pricing reflects limited availability, age, and whether it was tested or refurbished.
Q: What condition should I expect?
A: Most sellers list it as new surplus or refurbished. Ask for the test record, cosmetic condition, and warranty terms before buying.
Q: What is the biggest installation risk?
A: The biggest risk is assuming Mark VI compatibility without verifying the full part number and series match. That mistake is expensive and easy to avoid.
