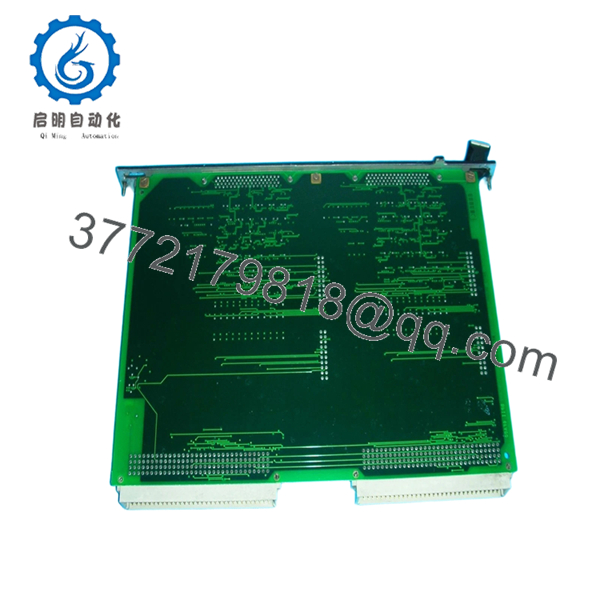

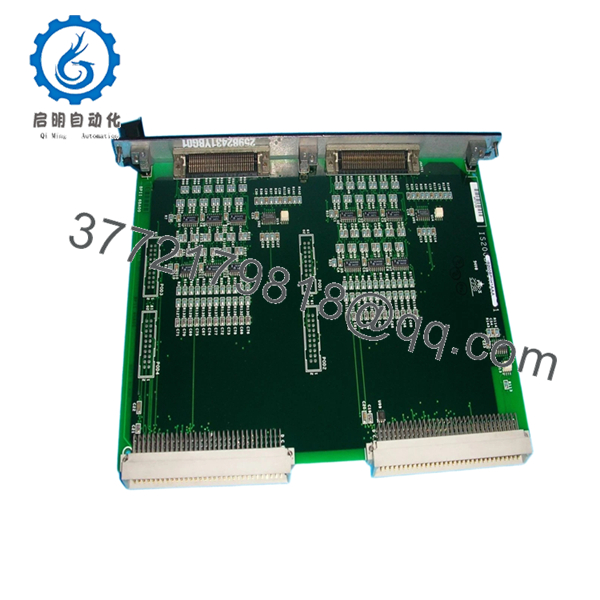

GE IS200BPIIH1AAA Bridge Power Interface Board

Description

Key Technical Specifications

Product Introduction & Supply Chain Strategy

The GE IS200BPIIH1AAA is a high-performance Bridge Power Interface Board engineered for the Speedtronic Mark VI turbine control system and Innovation Series drives. It acts as the critical communication pathway between the main processor backplane and the GGXI gate drive boards, routing 24 gate firing commands and status responses via noise-immune RS-422 signaling. Designed specifically for integration with Integrated Gate-Commutated Thyristor (IGCT) switching topologies, this board provides the hardware-level precision necessary to regulate large-scale industrial power conversion and turbine actuation sequences across power generation and maritime infrastructure.

From an asset lifecycle perspective, procuring this component as a New Surplus unit is a critical operational insurance policy. Because this hardware is no longer in active production by the OEM, facilities face severe Total Cost of Ownership (TCO) penalties if a running module degrades. Opting for New Surplus over a refurbished alternative eliminates the risks of latent capacitor dry-out or semiconductor fatigue common in second-hand components. Maintaining 1–2 factory-sealed units as buffer stock ensures instant JIT recovery during an emergency shutdown, safeguarding your plant against catastrophic revenue losses driven by long lead times for legacy controls.

IS200BPIIH1AAA

IS200BPIIH1AAA

Installation & Configuration Guide

Stage 1: Pre-Installation (Prep & Safety)

1. Execute full lock-out/tag-out (LOTO) procedures on the host drive enclosure and VME chassis power supplies. Ensure all residual DC link energy is completely discharged.
2. Attach a certified, grounded ESD wrist strap to an unpainted metal surface of the cabinet frame before unboxing the new board.
3. Verify the existing hardware configuration. Inspect the card currently seated in Slot 6; note that the IS200BPIIH1AAA contains a serial PROM ID and pull-up resistors instead of manual jumpers, which automates system network identification.

Stage 2: Removal

1. Carefully unscrew the top and bottom retention fasteners on the front faceplate of the faulty board.
2. Disconnect the 68-pin ribbon cables from the front JGATE1 and JGATE2 interfaces by releasing the lateral ejector clips. Label each cable clearly.
3. Grip the injector/ejector tabs on the VME faceplate and pull them outward simultaneously to disengage the rear 128-pin P1 and P2 backplane connectors from the CABP backplane. Slide the module out smoothly along its card guides.

Stage 3: Installation (Clone & Seat)

1. Unbox the New Surplus IS200BPIIH1AAA module inside the ESD-protected workspace.
2. Confirm that the board orientation aligns perfectly with the card guides for Slot 6 Only. Inserting this interface card into an incorrect slot will cause immediate physical pin damage.
3. Slide the board into Slot 6 until the rear connectors approach the backplane. Firmly press both faceplate handles inward until the card is fully seated and flush. Hand-tighten the upper and lower panel retention screws.
4. Reattach the 68-pin front interface cables to JGATE1 and JGATE2, verifying that the locking clips click into place securely.

Stage 4: Power-On & Testing

1. Measure the impedance between the 24 V DC backplane power rails and logic ground to ensure no dead shorts exist before restoring system energy.
2. Energize the VME chassis power supply.
3. Monitor the primary HMI or ToolboxST diagnostic interface. Because this board features no onboard LEDs, functional verification relies on the host controller establishing an RS-422 handshake and reading the board’s serial ID.
4. Check for the absence of gate signal or point-to-point communication alarms to confirm successful deployment.

Firmware/Software Versions & Upgrade Notes

The IS200BPIIH1AAA incorporates an internal serial PROM ID chip programmed at the factory, which dictates base compatibility parameters within the Speedtronic Mark VI architecture. This hardware version utilizes a sole A-rated functional revision sequence, meaning it exhibits broad backward compatibility with legacy CABP backplanes and standard GGXI gate drive controls using companion firmware manuals like GEI-100298.

When swapping out older iterations of the BPII line, always verify the core control application software setup within GE Toolbox. A jump in backplane communication firmware can occasionally prompt protocol timeouts if the host processor expects older point-to-point signaling handshakes. Do not attempt to alter or flash the onboard PROM ID chip layout during installation; any mismatch between the physical slot deployment and the software configuration matrix will trigger a critical initialization fault, blocking the drive from clearing its startup safety interlocks.

Frequently Asked Questions (FAQ)

Q: Why is your New Surplus pricing higher than typical web listings, but significantly lower than factory list price?

A: Our pricing directly reflects the strict investment required to source, verify, and maintain authentic, unused industrial surplus. While second-hand or repaired parts are cheap, they introduce unknown wear profiles into your control loop. This board is priced to deliver the absolute reliability of factory-new hardware at a balanced cost, providing an authentic OEM asset without the extreme price premium or extended lead times of active factory orders.

Q: Are these units truly new, or are they cleaned-up circuit boards?

A: This product is a Brand New Surplus unit. It is not used, not pulled from a decommissioned plant, and not refurbished. All modules undergo rigorous quality verification to ensure OEM-level reliability. “New” implies original component manufacturing, original anti-static packaging (opened only for our mandatory inbound QC visual checks), zero wear on backplane gold pins, and absolutely no soldered repairs.

Q: What are the primary failure risks if I choose a refurbished alternative for this specific board?

A: The IS200BPIIH1AAA drives high-frequency gate commands for heavy power electronics. Refurbished units frequently pass simple power-on tests but possess aged pull-up resistors and degraded trace insulation under the coating. If an RS-422 driver fails intermittently due to component fatigue, you risk losing gate feedback, which triggers immediate drive faults, unexpected turbine trips, and thousands of dollars per hour in unscheduled downtime.

Q: Can this Bridge Power Interface Board be hot-swapped while the drive is energized?

A: Absolutely not. The IS200BPIIH1AAA links directly to the main system backplane via dual 128-pin connections handling logic power and high-speed signaling. Removing or inserting the card while the backplane is live will cause severe electrical arcing across the pins, instantly destroying the onboard serial PROM chip and potentially damaging adjacent processor components.

Q: Does this card require manual logic programming or configuration before installation?

A: No software loading is required on the board itself. The unit relies on its integrated hardware ID chip to broadcast its presence and state to the host processor upon boot. All configuration parameters are managed at the cabinet application layer; your only physical responsibility is ensuring the card is seated strictly in Slot 6 with the correct front cable connections.

Q: What warranty coverage do you provide to back up the New Surplus status?

A: To match the operational expectations of critical turbine infrastructure, we back this New Surplus IS200BPIIH1AAA with a comprehensive 1-year warranty. This significantly outlasts the typical 30-day coverage found on refurbished equipment, giving your plant engineering team complete asset security and predictable lifespan performance.
