Key Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | General Electric |
| Model | IS200EPSMG1A |
| Functional Acronym | EPSMG1 / EPSM |
| Board Type | EX2100 exciter power supply module |
| System Family | GE EX2100 excitation control |
| Related Platform | GE Mark VI turbine control |
| Input Source | EPDM power distribution module |
| Nominal Input | 125 V DC |
| Conversion Topology | Buck regulator and push-pull inverter |
| Intermediate Bus | Approximately 50 V DC |
| Logic Output | +5 V DC |
| Analog/Control Outputs | +15 V DC and −15 V DC |
| Auxiliary Output | +24 V DC |
| Backplane | EPBP exciter power backplane |
| Powered Loads | M1, M2, and C controllers; external EX2100 modules |
| External 24 V Loads | Crowbar module, EDCF, EGDM, and EDEX de-excitation module |
| Isolated Auxiliary Supply | Approximately 70 V DC for ECTB and EXTB contact wetting |
| Typical Mounting | EPBP backplane in EX2100 control cabinet |
| Application Position | EPSM Group 1; excitation control |
| Related EPSM | EPSMG2 used for EX2100 regulator-control applications |
| Approximate Dimensions | 26 × 17 × 8 cm; verify actual enclosure and revision |
| Approximate Weight | 1 kg; verify shipping weight |
| Reference Documentation | GEI-100462 and GEH-6632; confirm applicable manual revision |
The IS200EPSMG1A converts the 125 V DC feed from the EPDM into the regulated supply rails used by the EX2100 control assembly and related external modules. The A-revision suffix must be matched against the installed system documentation and board label.
Product Introduction
The GE IS200EPSMG1A is an Exciter Power Supply Module used in GE Mark VI excitation-control systems. It accepts the 125 V DC feed from the EPDM and generates the regulated +5 V DC, ±15 V DC, and +24 V DC rails required by the controllers, backplane, and associated excitation modules.
EPSMG1 supports the excitation-control power group, while EPSMG2 serves the regulator-control power group in applicable architectures. Verify the EPBP backplane, EPDM source, controller arrangement, board revision, and output-voltage measurements before installing a replacement.

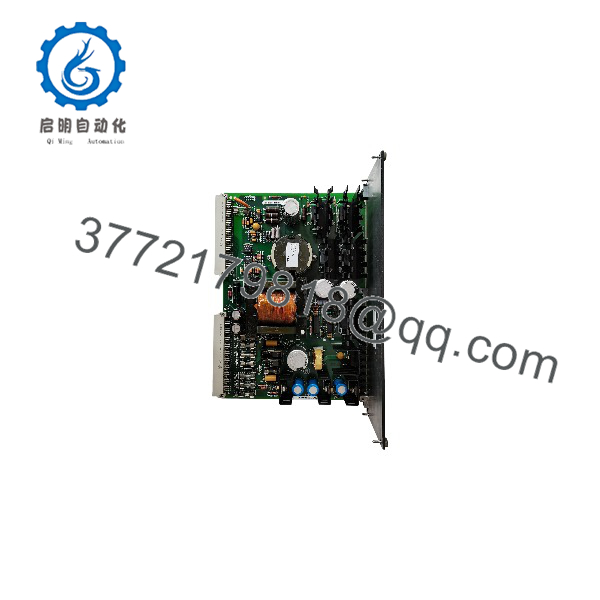

IS200EPSMG1A
Troubleshooting Quick Reference
| Symptom | Possible Cause | Relevance to This Part | Quick Check Method | Recommendation |
|---|---|---|---|---|
| No controller power | Missing 125 V DC input, EPDM fault, open fuse, loose backplane connector | ✅ High | Measure the EPDM output and EPSMG1A input only under an approved energized test procedure | Check the upstream EPDM and protection devices before replacing the EPSMG1A |
| +5 V DC rail is missing | EPSMG1A converter fault, overload, shorted controller card, backplane fault | ✅ High | Measure +5 V DC at the designated EPBP test point and compare with the system manual | Isolate downstream cards before condemning the power module |
| +15 V or −15 V rail is low | Overloaded analog/control circuit, shorted module, failed EPSMG1A regulator | ✅ High | Measure both polarity rails with a calibrated meter and compare their values under load | Check external loads and controller cards; replace the EPSMG1A only after isolation testing |
| +24 V DC output is absent | EPSMG1A output fault, shorted external module, protection trip | ✅ High | Check +24 V DC at the EPBP and inspect the crowbar, EDCF, EGDM, and EDEX loads | Disconnect suspect loads according to the maintenance procedure and retest |
| All rails collapse during startup | Shorted downstream board, excessive inrush, EPDM undervoltage | ✅ High | Monitor input and output rails during power-up; remove downstream loads one at a time under approved controls | Find the load causing the collapse before installing another power module |
| Controller LEDs cycle or reset | Marginal rail voltage, loose backplane connection, thermal shutdown, input ripple | ⚠️ Medium | Trend +5 V, ±15 V, and +24 V under full load; inspect connector seating and cabinet temperature | Correct power quality or cooling issues before replacing the board |
| Output is correct without load but fails under load | Degraded converter components, excessive load, poor thermal transfer | ✅ High | Perform a controlled load test while monitoring rail voltage and board temperature | Use a verified replacement if the module cannot hold regulation under load |
| Excitation system reports several card faults at once | Common control power failure rather than multiple failed cards | ✅ High | Compare fault timestamps and measure all output rails | Check and EPDM first; do not replace multiple control cards prematurely |
| 125 V DC input is present but no outputs are generated | Internal failure, crowbar protection, failed startup circuit | ✅ High | Verify input polarity, input fuse, status indicators, and output test points | Replace or professionally test the after confirming no downstream short |
| Module overheats or trips intermittently | Blocked cabinet airflow, overloaded rail, aging power components, loose connection | ⚠️ Medium | Inspect airflow and trend temperature while measuring output current | Correct cabinet cooling and load problems; then test the module continuously |
| Replacement powers the rack but system remains incompatible | Wrong revision, incorrect EPSM group, backplane mismatch, configuration issue | ✅ High | Compare the original and replacement nameplates, board revision, and EPBP location | Match EPSMG1 versus EPSMG2 and verify the complete part number before commissioning |
| Fuses open immediately after installation | Downstream short, incorrect insertion, damaged backplane, polarity fault | ✅ High | Remove power, inspect the card and connector, and check resistance on downstream rails | Do not repeatedly replace fuses; locate the short before re-energizing |
Support note: Contact technical support with photos of the complete board label, revision markings, EPBP location, EPDM output, measured +5 V, ±15 V, and +24 V rails, alarm logs, and the status of downstream modules.
Frequently Asked Questions (FAQ)
What does the GE IS200EPSMG1A do?
The IS200EPSMG1A is the EPSMG1 exciter power supply module for the GE excitation-control system. It converts 125 V DC from the EPDM into regulated low-voltage rails used by the control assembly and external excitation hardware.
Is the IS200EPSMG1A a Mark VI or Mark VIe board?
It is associated primarily with GE excitation control and Mark VI turbine-control installations. Some supplier listings call it “Mark VIe,” but that claim should not be accepted without checking the cabinet drawings, EPBP backplane, and GE documentation for the specific installation. The system architecture and complete board markings control compatibility.
Can I replace with EPSMG2?
Do not substitute them by appearance. EPSMG1 belongs to the excitation-control power group, while EPSMG2 is associated with regulator-control applications. Verify the backplane position, system drawings, input source, and output requirements before selecting a replacement.
What input voltage does the require?
The documented input is 125 V DC supplied by the EPDM power distribution module. It is not a universal 100–240 V AC power supply. Applying the wrong voltage can damage the board and create a serious arc-flash or equipment hazard.
What output voltages should I check?
Check the +5 V DC logic rail, +15 V DC and −15 V DC control rails, and +24 V DC auxiliary rail at the approved EPBP test points. The architecture may also use an isolated approximately 70 V DC contact-wetting supply through associated modules. Use the site drawings and GE manual to identify exact test points and tolerances.
Will replacing the restore the turbine or exciter automatically?
Not necessarily. A failed can remove power from multiple controllers, but the same symptoms can result from an EPDM fault, overloaded downstream module, shorted backplane, or incorrect wiring. Verify input and output rails under load and review controller diagnostics before declaring the power module defective.
Is the still available as a new factory part?
Availability is generally limited because this is a legacy spare. Listings may include new surplus, used, refurbished, or repaired boards. Request a photo of the nameplate, revision, test report showing regulated output rails, warranty terms, and confirmation that the unit is , not EPSMG2 or another EPSM revision.
