3. Key Technical Specifications
| Parameter | Value |
| Functional Acronym | ERIO (Exciter Regulator Input/Output) |
| System Compatibility | GE EX2100 Excitation Systems & Speedtronic Mark VI Turbine Controls |
| Enclosure Form Factor | Double-wide (dual-slot) 6U Eurocard VME-style layout with front faceplate |
| PCB Protective Coating | Conformal Coated (indicated by the “H” in the part number) |
| Processing Onboard | Dual CPU sockets, 1 x Field Programmable Gate Array (FPGA), and Dual-Port Memory (DPM) |
| Output Load Driving | Drives 20 mA outputs up to 500 \Omega load resistance over 1,000 feet of 18 AWG cable |
| Backplane Interconnect | Dual high-density 96-pin DIN connectors (P1/P2) on the rear edge |
| Faceplate Controls | 1 x Hardwired diagnostics toggle switch and status LEDs |
| System I/O Interfaces | Interfaces with EROC and ERDD boards (via ERBP in simplex or ERRB in redundant setups) |
| Field Terminal Interfaces | Coordinates customer-side wiring via ECTB and EPCT terminal boards |
4. Product Introduction & Supply Chain Strategy

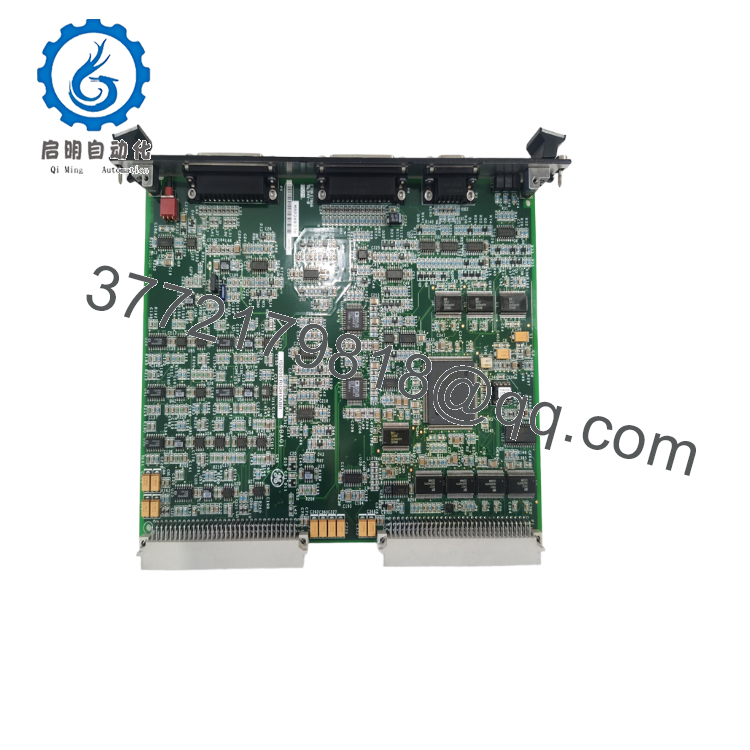

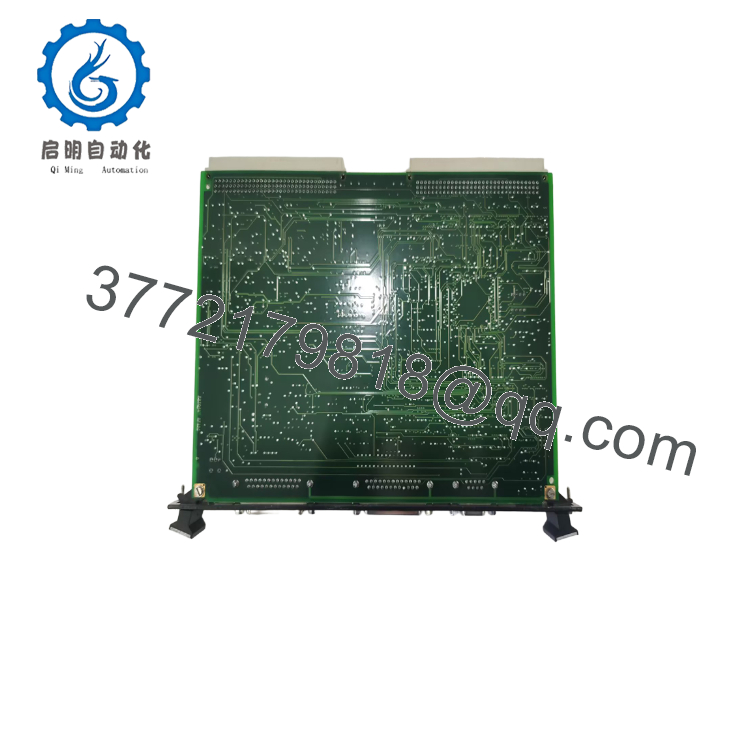

The GE Vernova IS200ERIOH1ABB is the foundational Exciter Regulator Input/Output (ERIO) board for the EX2100 digital static excitation control platform. Occupying a double-wide slot inside the regulator rack, this module serves as the primary communications and signal translation gateway for both customer-facing and internal system-level I/O. By utilizing dual CPU sockets paired with an onboard FPGA and high-speed Dual-Port Memory (DPM), the ERIO board executes high-speed signal capture and feedback loop control, passing clean telemetry to the primary application control layer.
From a turbine lifecycle perspective, the IS200ERIOH1ABB is an essential high-criticality control card. Because the EX2100 and Mark VI environments are obsolete, a sudden ERIO card failure will fault the excitation feedback loops, causing an immediate generator trip and bringing the entire steam, gas, or hydro turbine utility to an abrupt halt. Sourcing this board as a New Surplus component is highly recommended over third-party refurbished items. Refurbished digital cards are prone to microscopic joint stress, aged oscillator crystals, and internal memory block faults that fail under high heat. Storing 1–2 factory-original, zero-hour surplus ERIO boards ensures seamless hot-standby swaps and predictable operational continuity.
5. Installation & Hardware Configuration
Stage 1: Pre-Installation Prep
Ensure the exciter regulator cabinet is completely de-energized. Perform strict lock-out/tag-out (LOTO) procedures on both the high-voltage main line inputs and the auxiliary control bus power lines. Wear a grounded ESD wrist strap clamped to an unpainted metal surface on the frame. Document all external ribbon routing and current hardware switch states on the board to be replaced.
Stage 2: Extraction
Verify which backplane slot holds the target board. In Simplex systems, the ERIO card is seated in the Exciter Regulator Backplane (ERBP). In Redundant systems, three boards are used—mounted in the ERBP (M1 slot) and the Exciter Regulator Redundant Backplane (ERRB, M2/C slots). Loosen the captive faceplate screws. Simultaneously release the top and bottom card ejector tabs, pulling the board straight out along the plastic guide channels.
Stage 3: Configuration & Insertion
Confirm that the replacement IS200ERIOH1ABB carries clean, unscored P1/P2 rear connectors. Carefully check that the front toggle switch and any onboard configuration pins match the old card exactly. Slide the ERIO card into the appropriate slot tracks (ERBP or ERRB). Once the board reaches the backplane, push the ejector handles inward until they snap flush, seating the multi-pin DIN interface. Tighten the faceplate screws.
Stage 4: Initialization & Testing
Connect the required terminal boards (e.g., ECTB, EPCT) and any system I/O cables. Restore low-voltage control power to the exciter frame. Monitor the faceplate LEDs to ensure the dual CPUs boot into a synchronized run state without triggering diagnostic faults on your ControlST or ToolboxST engineering software interface.
- IS200ERIOH1ABB
- IS200ERIOH1ABB
6. Frequently Asked Questions (FAQ)
What is the role of the “H” in the IS200ERIOH1ABB part number?
The “H” in the part number indicates that the printed circuit board has been treated with a high-durability conformal coating. This thin layer of protective polymer shields the sensitive electronic traces, dual CPU sockets, and dense capacitor matrices from moisture, atmospheric dust, corrosive pollutants, and airborne salts common in harsh coastal or heavy industrial turbine rooms.
How does this board interface with other exciter cards?
In simplex systems, the IS200ERIOH1ABB routes local signal channels directly to the Exciter Regulator Options Card (EROC) and the Exciter Regulator Dynamic Discharge (ERDD) board through the ERBP backplane. In redundant system architectures, it routes additional diagnostic and synchronizing signal tables to the Exciter Regulator Redundant Relay (ERRR) card via the high-speed ERRB backplane.
Is this board brand new, or has it been repaired?
This unit is a Brand New Surplus item. It is not a pulled card from a decommissioned power plant, nor is it a third-party refurbished board. The assembly is delivered in protective, factory-grade anti-static packaging, displaying clean, original solder junctions, unscored backplane connector pins, and pristine conformal protection.
Can I hot-swap this card while the generator is synchronized and online?
No. Attempting to pull the primary I/O regulator card while the excitation loop is actively generating field current will break the control feedback path, instantly tripping the generator and potentially triggering a turbine overspeed shutdown or bridge damage. Always isolate the turbine and verify the exciter is fully de-energized before swapping the hardware.
What warranty applies to this legacy GE ERIO card?
We protect this New Surplus IS200ERIOH1ABB board with a comprehensive 1-year operational warranty from the date of purchase. If a material or component defect arises within this timeframe, we provide immediate replacement or repair, protecting your maintenance budget from the short-term coverage limits typical of used or rebuilt components.
