GE IS200TREAS1A Turbine Emergency Trip Relay Board

Description

Key Technical Specifications

Product Introduction & Supply Chain Strategy

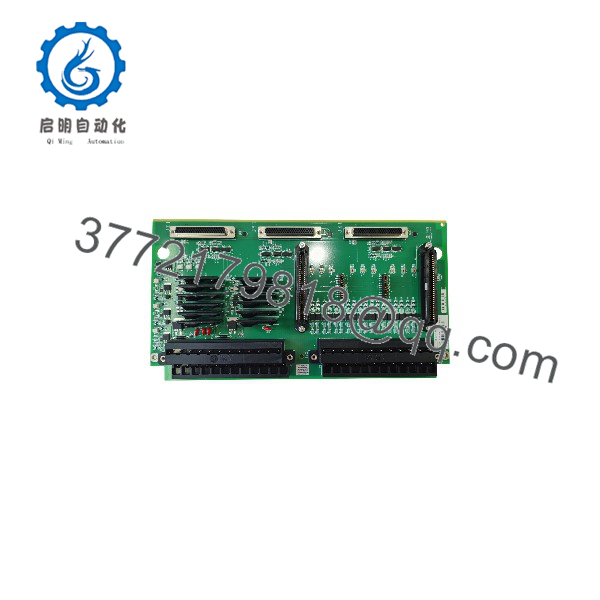

The GE IS200TREAS1A is an emergency trip terminal board engineered for General Electric Speedtronic Mark VI turbine control architectures. It acts as the direct hardware interface between the Mark VI control processor cards (such as the VTUR or VTRH) and the hydraulic or pneumatic emergency trip solenoids that protect heavy industrial gas and steam turbines from overspeed and critical trip conditions.

This product is a Brand New Surplus unit. It is not used, not pulled from a decommissioned plant, and not refurbished. All modules undergo rigorous quality verification to ensure OEM-level reliability.

Refurbished turbine trip boards carry severe operational risks due to pitted relay contacts, degraded suppression diodes, and thermal strain on high-current traces. A failure in the emergency trip circuit can either cause false turbine trips—costing hundreds of thousands of dollars in unearned power generation—or fail to actuate during a true overspeed event, leading to catastrophic machine destruction. Sourcing genuine New Surplus inventory maintains baseline Total Cost of Ownership (TCO), ensures uncompromised safety trip logic, and secures immediate drop-in replacement parts without expensive control cabinet retrofits.

IS200TREAS1A

Installation & Configuration Guide

Stage 1: Pre-Installation (Prep & Safety)

1. Execute Lock-Out/Tag-Out (LOTO) protocols on the turbine protection control cabinet and trip solenoid power feeds.
2. Wear a grounded anti-static wrist strap to protect onboard protective diodes and signal traces from electrostatic discharge (ESD).
3. Document terminal block wire assignments, cable routing, and hardware jumper settings on the existing IS200TREA card.

Stage 2: Removal

1. Unplug the multi-pin cable harnesses connecting the TREA board to the I/O racks.
2. Disconnect field terminal wiring connected to the trip solenoids and status feedback loops.
3. Undo the mounting hardware or release the DIN-rail locking clips to extract the card safely from the subbase.

Stage 3: Installation (Clone & Seat)

1. Verify that all jumpers on the new IS200TREAS1A precisely match the configuration of the original board (e.g., TMR vs. Simplex power selection).
2. Mount the IS200TREAS1A card securely into the DIN-rail slot or cabinet mounting base.
3. Reconnect all field wiring to the screw terminal blocks, torquing connections to OEM specifications.
4. Attach the ribbon/multi-pin cables connecting to the Mark VI processor cards.

Stage 4: Power-On & Testing

1. Measure incoming power lines to confirm 24V DC / 125V DC bus voltages remain within allowable tolerance before energizing.
2. Power up the control rack and check that status indication LEDs on the Mark VI interface cards confirm healthy communication with the TREA board.
3. Perform a offline trip test in accordance with OEM turbine startup protocols to verify mechanical solenoid actuation prior to firing the turbine.

Firmware/Software Versions & Upgrade Notes

• System Compatibility: Ensure the IS200TREAS1A revision is fully compatible with your Mark VI Toolbox software build and VTUR/VTRH card revisions.
• Backward Compatibility: The IS200TREAS1A retains direct form, fit, and function compatibility across classic Speedtronic Mark VI cabinet layouts, providing seamless physical replacement.
• Firmware Risks: Never disconnect I/O cables or swap terminal boards while the turbine control system is actively running in online mode. Abrupt signal loss on emergency trip loops can trigger an immediate fail-safe trip of the unit.

Frequently Asked Questions (FAQ)

Q: Is this GE module genuine New Surplus or a refurbished board?

A: This unit is 100% genuine New Surplus. It has zero field operating hours, pristine terminal block screws, no discoloration on high-power traces, and was stored in ESD-safe packaging since manufacture. It is not used, repaired, or harvested from active equipment.

Q: Why choose New Surplus over a refurbished card?

A: Refurbished emergency trip boards pose severe risks of pitted relay contacts and aged protection components. In power plant and mechanical drive turbine applications, a trip circuit failure can cause catastrophic overspeed damage or costly false trips. New Surplus guarantees original factory reliability and full service life.

Q: How is the verified prior to shipment?

A: Every unit undergoes rigorous Quality Control inspection. Our technicians conduct visual checks on component solder joints, verify ground continuity, inspect connector pins, and validate physical terminal block integrity.

Q: Is the GE Speedtronic Mark VI still actively manufactured?

A: The Mark VI series is a legacy control platform from GE. Sourcing New Surplus inventory enables plant engineering teams to maintain critical safety buffer stock without committing to multi-million-dollar Mark VIe migration projects.

Q: Does this card support both Simplex and TMR system configurations?

A: Yes, the is designed to operate in both Simplex and Triple Modular Redundant (TMR) Speedtronic Mark VI system architectures depending on cable routing and jumper placement.

Q: What warranty coverage applies to this module?

A: This New Surplus GE includes a standard 1-Year functional warranty covering electronic and manufacturing defects.
