GE IS220PDOAH1B Discrete Output Terminal Module

Description

3. Key Technical Specifications

4. Product Introduction & Supply Chain Strategy

The GE IS220PDOAH1B is a dedicated discrete output block belonging to the modern Mark VIe distributed control ecosystem. This compact, ruggedized I/O pack interfaces directly with functional safety relay terminal boards, executing critical start, stop, and interlock command logic for industrial turbines and balance-of-plant automation systems. Equipped with dual-redundant Ethernet ports running the proprietary IONet protocol, the pack ensures that safety-critical output states are consistently synchronized with the main controller architecture without network communication latency.

Sourcing the IS220PDOAH1B as a New Surplus asset addresses a pivotal inventory management challenge: balancing immediate component availability against total lifetime carrying costs. Opting for unpowered, factory-sealed surplus eliminates the severe degradation risks common to second-hand or poorly stored components, particularly the failure of onboard optocouplers and signal-conditioning components. This technical selection safeguards your system against unexpected output-driver failures, lowers total cost of ownership (TCO) relative to high manufacturer list prices, and eliminates the extended procurement lead times that frequently turn a simple hardware swap into an extended, high-cost plant stock-out.

IS220PDOAH1B

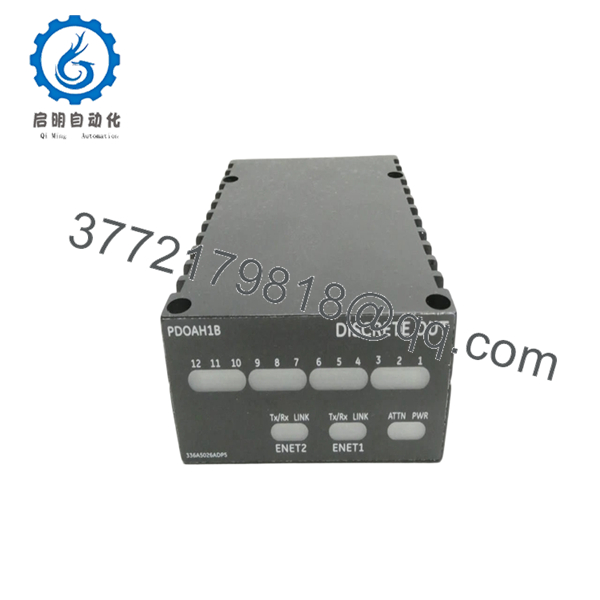

IS220PDOAH1B

5. Installation & Configuration Guide

Stage 1: Pre-Installation (Prep & Safety)

1. Verify that the relevant industrial control loop is in a safe state and isolate all high-voltage field wiring connected to the target terminal board.
2. Confirm the complete isolation of the external 28 VDC bulk power distribution line feeding the module.
3. Secure a grounded ESD wrist strap to your body and attach the clamp to a clean, unpainted metallic grounding surface on the control cabinet frame.
4. Document the exact network topology by labeling the active IONet Ethernet lines (typically designated as Network R, S, or T).

Stage 2: Removal

1. Unplug the dual RJ45 IONet network cables from the front panel interfaces.
2. Using a standard flathead screwdriver, completely loosen the two heavy-duty jack-screws anchoring the pack housing to the terminal board connector header.
3. Pull the module directly outward along its vertical axis to cleanly disengage the high-density internal plug pins from the terminal board socket.
4. Place the removed module immediately into an anti-static shielding bag to protect the logic board from environmental contamination and static discharge.

Stage 3: Installation (Clone & Seat)

1. Withdraw the replacement New Surplus IS220PDOAH1B from its protective anti-static enclosure.
2. Inspect the high-density interface connector pins on the base of the pack to confirm that no physical misalignment or shipping damage exists.
3. Align the pack mounting holes with the alignment pins on the terminal board, then push the module downward until the connectors seat flush.
4. Securely torque the two integrated jack-screws to lock the module envelope onto the terminal assembly, ensuring a robust mechanical and electrical seal.

Stage 4: Power-On & Testing

1. Reinsert the dedicated IONet network communication cables into their designated RJ45 jacks on the faceplate.
2. Re-apply the primary 28 VDC control voltage to the input circuit.
3. Monitor the sequential startup of the front-panel status LEDs: the green PWR lamp must remain stable, and the IONet indicator should blink rapidly to signify active communication.
4. Launch the ToolboxST software interface to verify that the newly installed I/O pack has successfully requested its hardware configuration parameters and matches the controller’s current network configuration matrix.

6. Firmware/Software Versions & Upgrade Notes

The IS220PDOAH1B uses internal flash memory to store its device-level operational code. This code must match the firmware baseline version configured in the master controller’s ToolboxST environment. If a mismatch occurs when the module is connected to an active IONet configuration, the system may generate a block configuration fault or block communication loop download requests.

When swapping hardware, you must allow the automated controller network to run its built-in firmware matching checks. If the New Surplus module arrives with an older firmware version, the primary controller can push a targeted firmware update directly down the IONet connection. However, manually pushing firmware changes or downgrading components on an active control network is a high-risk process. It can result in a device configuration mismatch or leave the I/O pack non-functional if the download is interrupted before completion. Always verify the stability of the power source and communication networks before triggering a firmware synchronization sequence.

7. Frequently Asked Questions (FAQ)

Q: Why choose a New Surplus IS220PDOAH1B over a repaired or refurbished component?

A: Discrete output packs handle the direct switching logic for critical field relays. Refurbished parts frequently have hidden thermal stresses on their circuit boards or worn-out optocouplers from long hours in hot control cabinets. This New Surplus pack represents zero-hour inventory with fresh, unaged internal components. It provides true OEM-level reliability and performance, but avoids the long factory lead times and premium list prices.

Q: Does this I/O pack ship in original factory packaging?

A: Yes. Our New Surplus units are supplied in their original factory-sealed anti-static packaging or premium ESD-safe equivalent boxes. They are opened exclusively by our engineering teams to complete standard visual tracking audits and electrical validation checks before shipment.

Q: What is the significance of the “H1B” suffix in the model code?

A: The suffix code denotes specific hardware revisions and functional layouts configured by General Electric. The “H1B” identifier represents a distinct combination of processing components, terminal board matches, and functional configurations. You must ensure this suffix matches your exact system print requirements to maintain compatibility with your existing terminal boards and controller configuration files.

Q: Can this module be hot-swapped while the primary controller is running?

A: Yes, the Mark VIe control architecture allows for the live hot-swapping of I/O packs under specific conditions. However, you must take care before pulling the module. Removing the pack immediately de-energizes the 12 associated output relays, which can instantly trip connected field equipment. Always ensure the output loops are safely bypassed or the plant processes are stable before performing a live swap.

Q: Does this unit include the terminal board where the field wiring terminates?

A: No. The IS220PDOAH1B is the active I/O processing pack that plugs onto the terminal block assembly. The physical termination board (such as the TRLYH1B or TRLYH1C) is a separate hardware component that remains permanently mounted and wired within the cabinet enclosure.

Q: What type of warranty protection is provided with this component?

A: We provide a comprehensive 1 year replacement warranty on all New Surplus modules. This warranty program matches or exceeds the standard terms provided for new factory parts, ensuring complete protection for your maintenance budgets and operational integrity.
