Key Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | General Electric / GE Vernova |
| Model | IS220UCSAH1A |
| Controller Type | UCSA embedded controller |
| System Family | Mark VIe / Mark VIeS |
| Primary Application | Gas turbine, steam turbine, generator, and balance-of-plant control |
| Processor | Freescale PowerPC 8349, 667 MHz |
| Operating System | QNX Neutrino real-time operating system |
| System Memory | 256 MB DDR SDRAM |
| Application Storage | CompactFlash; capacity and image are site-specific |
| Power Input | 28 V DC nominal |
| Certified Input Current | 0.62 A maximum |
| Operating Input Range | 18–32 V DC; verify cabinet power-distribution specification |
| Typical Power Consumption | Approximately 12–12.5 W |
| IONet Interfaces | Three dedicated Ethernet ports: R, S, and T |
| UDH Interfaces | Two Ethernet ports for Unit Data Highway communication |
| Ethernet Type | 10/100Base-TX; verify port assignment in GEH-6721 |
| Direct Application I/O | None; field I/O is handled by separate Mark VIe I/O packs |
| Redundancy | Simplex, dual, or TMR |
| Mounting | Panel-mounted controller module |
| Cooling | Passive convection; no fan required |
| Operating Temperature | 0 to 65 °C |
| Hazardous Area Certification | IECEx system certification; installation requires the specified certified enclosure and power-distribution conditions |
| Related Documentation | GEH-6721, Mark VIe Control System Hardware Guide |
| Controller Configuration | Site-specific application, network, redundancy, and I/O database |
The GE IECEx certificate identifies the IS220UCSAH1A with a 28 V DC input and 0.62 A maximum current. It also specifies 0 to 65 °C operation for this model and requires applicable certified enclosure and power-supply conditions in hazardous locations.
The UCSA controller provides IONet and UDH Ethernet interfaces but does not directly host application field I/O. The controller must be matched to the Mark VIe cabinet architecture, power-distribution hardware, application image, and simplex, dual, or TMR configuration.
Product Introduction
The GE IS220UCSAH1A is a UCSA embedded controller for GE Mark VIe and Mark VIeS turbine-control systems. It executes application-specific control logic on a QNX real-time platform and communicates with distributed I/O packs over dedicated IONet Ethernet connections. Separate UDH ports support controller, HMI, and system-level communication.
This controller is used in gas-turbine, steam-turbine, generator, and balance-of-plant applications. It requires no direct field wiring because I/O packs provide the process interface. Verify the controller catalog number, CompactFlash image, cabinet power supply, Ethernet port assignments, redundancy architecture, and hazardous-location installation requirements before replacement.
IS220UCSAH1A

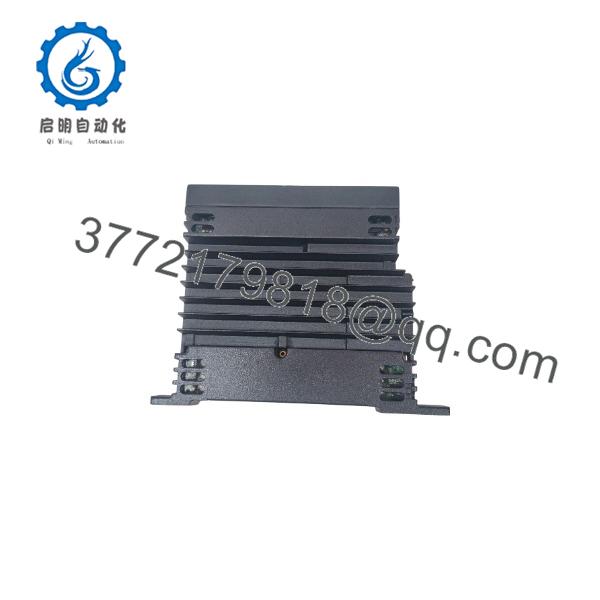

IS220UCSAH1A
Troubleshooting Quick Reference
| Symptom | Possible Cause | Relevance to This Part | Quick Check Method | Recommendation |
|---|---|---|---|---|
| No controller LEDs | Missing 28 V DC supply, open fuse, power-distribution fault, failed controller | ✅ High | Measure the supply at the controller input connector; confirm 18–32 V DC under load | Check the power-distribution board and wiring before replacing the UCSA |
| Controller repeatedly reboots | Voltage sag, excessive supply resistance, overheating, corrupted CompactFlash, internal fault | ✅ High | Trend input voltage during boot and inspect temperature, LEDs, and boot diagnostics | Correct power and storage issues before installing another controller |
| I/O packs are offline | IONet cable fault, wrong port assignment, failed I/O pack, controller network fault | ✅ High | Check R/S/T IONet connections individually and inspect network diagnostics | Verify each IONet path and I/O pack before replacing the controller |
| Only one redundant controller is unavailable | Controller-specific power, IONet, UDH, or application fault | ✅ High | Compare the failed unit with the healthy simplex or redundant partner | Isolate the controller-specific path and preserve the healthy control channel |
| UDH communication fails but I/O remains active | UDH cable, switch, IP address, network configuration, failed UDH port | ⚠️ Medium | Check link status, switch port, IP settings, and controller network diagnostics | Troubleshoot UDH separately from IONet; do not replace the controller based only on HMI loss |
| Mark VIe application does not load | Missing or corrupted CompactFlash image, wrong software revision, storage fault | ✅ High | Inspect boot messages and compare the application image with the approved site backup | Restore the correct site image; a blank replacement controller is not plug-and-play |
| Controller is detected but does not assume control | Wrong simplex/dual/TMR configuration, mismatch with partner controller, invalid application database | ✅ High | Compare controller identity, redundancy settings, software version, and network parameters | Match the replacement to the active Mark VIe control architecture |
| One IONet channel drops intermittently | Damaged Ethernet cable, connector issue, EMI, failing I/O pack, controller port fault | ⚠️ Medium | Replace the cable with an approved spare and move testing only as allowed by GE procedure | Identify whether the fault follows the cable, I/O pack, port, or controller |
| Ethernet link is absent | Wrong port, failed switch, cable fault, disabled interface, controller hardware fault | ⚠️ Medium | Test with a known-good cable and approved switch port; verify R/S/T/UDH assignment | Correct physical network issues before replacing the UCSA |
| Controller overheats | Cabinet temperature above limit, blocked airflow, incorrect enclosure, nearby heat source | ⚠️ Medium | Measure ambient temperature at the module and inspect cabinet airflow | Keep the controller within 0–65 °C and correct enclosure cooling |
| Fault appears after replacement | Wrong hardware revision, incorrect application image, mismatched power board, port mapping error | ✅ High | Compare labels, revision, CompactFlash, controller identity, and cabinet drawings | Confirm the complete replacement configuration before commissioning |
| Hazardous-area installation is rejected | Missing certified enclosure, unapproved power supply, incorrect installation conditions | ✅ High | Review the site classification, enclosure certification, and GE/IECEx conditions | Do not energize until the installation meets the applicable certification requirements |
Support note: Contact technical support with the complete controller label, hardware revision, LED state, input-voltage measurement, CompactFlash details, IONet/UDH port mapping, redundancy arrangement, application version, and Mark VIe diagnostic logs.
Frequently Asked Questions (FAQ)
What does the GE IS220UCSAH1A do?
The IS220UCSAH1A is the UCSA controller for GE Mark VIe and Mark VIeS systems. It executes the control application and communicates with separate I/O packs through IONet. It is not an analog or digital I/O pack and does not connect directly to field sensors or actuators.
How many Ethernet ports does it have?
The controller architecture uses three dedicated IONet ports labeled R, S, and T, plus two UDH Ethernet ports. Actual port assignment depends on whether the system is simplex, dual, or TMR and must follow the Mark VIe cabinet drawings.
What supply voltage does the IS220UCSAH1A require?
The controller uses a nominal 28 V DC input. The IECEx certificate specifies 0.62 A maximum input current, while system documentation commonly identifies an operating range of approximately 18–32 V DC. Verify the approved GE power-distribution arrangement before connecting power.
Does the replacement controller include the turbine application?
Not automatically. The controller requires the correct site-specific CompactFlash image, application files, network settings, controller identity, and redundancy configuration. Confirm whether the seller supplies a blank controller, a cloned application image, or a tested unit configured for a particular Mark VIe installation.
Can I use the in a Mark VI system?
Do not assume compatibility with the older Mark VI platform. The is a Mark VIe/Mark VIeS UCSA controller and uses the Mark VIe IONet architecture. A Mark VI VME controller such as an IS215UCVEM08 is not an automatic substitute.
Is the hot-swappable?
Do not treat it as universally hot-swappable. Removing a controller can interrupt I/O communication or alter a redundant control architecture. Follow the GE Mark VIe maintenance procedure, verify the controller’s simplex, dual, or TMR role, and obtain authorization before removal.
Can it be installed in a hazardous location?
Only when the complete installation meets the applicable certification conditions. The IECEx certificate requires a certified enclosure with at least IP54 protection, an approved switched-mode power supply with current limiting, and certified power distribution. The controller’s certification does not authorize unrestricted open-panel installation.
Is the still available as a new factory part?
Availability depends on GE Vernova production and distributor inventory. Surplus and refurbished units are common in the legacy-spares market. Request the exact model label, hardware revision, CompactFlash status, functional test report, warranty, and confirmation that the unit is , not a similar UCSA, UCSB, or UCEC controller.
