3. Key Technical Specifications
| Parameter | Value |
| Functional Acronym | PUAA (Universal Analog I/O Pack) |
| Compatible Systems | Mark VIe (Standard Control) and Mark VIeS (Safety/SIL Rated) |
| Number of Channels | 16 channels (individually configurable) |
| Typical Terminal Board | IS410SUAAH1A (SUAA Simplex Terminal Board) |
| Network Interfaces | Dual RJ-45 10/100 Mbps Ethernet ports (IONet redundant paths) |
| Measurement Accuracy | Better than 0.1% of full-scale reading |
| Normal Scan Time | 5 ms |
| Fastest Frame Rate | 10 ms |
| Operating Temperature | -40°F to +158°F (-40°C to +70°C) |
| Humidity Range | 5% to 95% relative humidity (non-condensing) |
| Software Compatibility | ControlST Software Suite (Version V07.02.00C or later) |
| Diagnostics | Onboard LED status indicators and continuous sensor loop health monitoring |
4. Product Introduction & Supply Chain Strategy
The GE Vernova IS420PUAAH1A is a highly flexible, high-density Universal Analog Input/Output (PUAA) pack developed for the Speedtronic Mark VIe and Mark VIeS distributed control system platforms. Designed to streamline industrial and turbine cabinet architecture, the PUAA pack replaces multiple specialized dedicated-type analog boards. By offering 16 highly configurable simplex channels, this module allows engineers to program, monitor, and commission diverse field instruments (such as thermocouples, RTDs, and mA control loops) on a channel-by-channel basis. It routes these digitized signals back to the main controller rack over redundant Ethernet IONet networks.
From a procurement perspective, the IS420PUAAH1A is a critical infrastructure component. Because it serves as the consolidated bridge for primary process telemetry—including temperatures, pressures, and flow rates—an I/O pack failure immediately interrupts loop feedback, often initiating an expensive turbine trip or safety-system shutdown.
Acquiring this board as a certified New Surplus unit protects your operations from the latent failure risks common in third-party refurbished units. Rebuilt analog boards often suffer from drifted internal reference voltages, minor calibration shifting over high operating temperatures, and degraded network interfaces. Maintaining factory-sealed, zero-hour surplus PUAA packs on-site ensures rapid swap-outs during scheduled maintenance windows and guarantees absolute calibration accuracy.

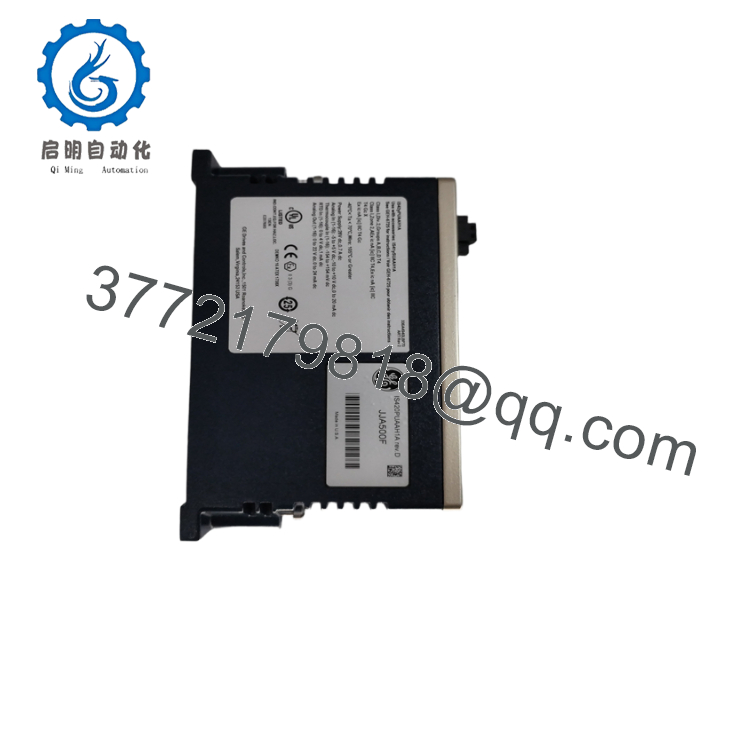

- IS420PUAAH1A

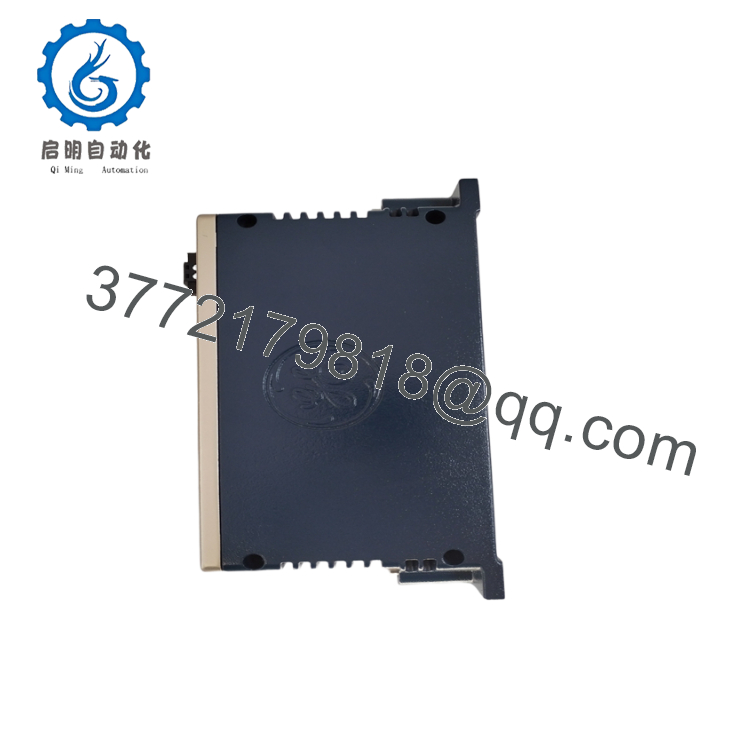

- IS420PUAAH1A
5. Universal Channel Configuration Profile
Each of the 16 channels on the IS420PUAAH1A can be programmed independently through the ControlST software suite to support the following signal types:
- Thermocouple Input: Supports standard thermocouple curves (Type J, K, T, E, S, etc.) and uses the terminal board’s integrated cold junction reference.
- RTD Input: Supports 3-wire and 4-wire RTD configurations (PT100, Copper 10, etc.) for precise temperature monitoring.
- Voltage Input: Connects standard voltage loops running \pm5 VDC or \pm10 VDC signals.
- 4–20 mA Current Input: Handles standard current loops, complete with built-in HART protocol transparency for digital instrument diagnostics.
- 0–20 mA Current Output: Drives control valves, dampers, and secondary process controllers with precision.
- Digital Input: Configurable to monitor dry-contact discrete switches (supporting both internally and externally wetted circuits).
- Pulse Accumulator: Captures high-frequency pulse streams for turbine speed tracking or flow metering.
6. Installation & Commissioning Guide
Stage 1: Pre-Installation Prep
Verify that your system is running ControlST software version V07.02.00C or later. Isolate the auxiliary 24 VDC power feed going to the target termination board (typically the IS410SUAAH1A). Fasten a grounded ESD wrist strap to your wrist and connect its terminal clip to the bare metal cabinet frame before extracting the card from its static-shielding bag.
Stage 2: Mechanical Insertion
Locate the terminal board where the pack is to be mounted. Align the IS420PUAAH1A with the mounting studs and the high-density terminal interface plugs on the SUAA board. Press the pack firmly until the mechanical interface seats completely. Secure the captive retaining screws to lock the pack to the board frame, ensuring low-impedance structural grounding.
Stage 3: Cabling and Power
Plug the redundant IONet Ethernet cables into the RJ-45 ports on the side of the pack. Restore the 24 VDC power feed. The onboard LEDs will initiate a boot sequence. Once initialized, the “Power” and “Online” LEDs should show solid green, indicating a healthy hardware state.
Stage 4: Configuration & Auto-Reconfiguration
Open the ToolboxST system application on your engineering workstation. Ensure the network IP routing maps the new pack address correctly. Because the IS420PUAAH1A supports automatic reconfiguration, the network controller will automatically download the correct channel configurations, calibration files, and firmware matching the plant database straight into the module. Run a diagnostic check to verify that all 16 channel offsets are clear and reading accurately.
7. Frequently Asked Questions (FAQ)
What is the difference between the Mark VIe and Mark VIeS applications of this pack?
In a standard Mark VIe setup, the IS420PUAAH1A is used for general turbine and Balance of Plant (BOP) control loops. In a Mark VIeS setup, it functions as a high-integrity safety I/O pack (similar to the YUAA model) to support safety instrumented functions (SIF) up to SIL 3, executing rapid protective trips and emergency shutdown limits.
Does this pack support hot-swapping under live loop conditions?
Yes. The IS420PUAAH1A supports full physical hot-swapping. You can replace a failed pack without powering down the terminal board or the rest of the cabinet. However, ensure that the loops wired to the specific pack being swapped are safe to temporarily disconnect, as all 16 channels on the module will temporarily drop to their default failsafe values during the swap.
What is the typical power consumption of the module?
The IS420PUAAH1A has a baseline quiescent power draw of 8.1 Watts. In addition, each active channel consumes a small fraction of power depending on its configuration—ranging from 0.02 Watts for low-voltage/thermocouple modes up to 0.68 Watts for internally fed mA current input or output loops.
Is this GE IS420PUAAH1A pack brand new or a refurbished card?
This is a Brand New Surplus unit. It is not used, has not been recovered from a decommissioned power plant, and has not undergone third-party repairs. The assembly is shipped inside its original protective packaging, displaying clean terminal interfaces, unscored Ethernet ports, and unblemished casing.
What warranty terms apply to this legacy universal I/O module?
Every New Surplus IS420PUAAH1A module is backed by our comprehensive 1-year operational warranty from your date of purchase. This warranty shields your maintenance and operating budget from material defects, providing a level of long-term security that used or third-party repaired alternatives cannot match.
