Key Technical Specifications
| Parameter | Value |
| Manufacturer | HIMA Paul Hildebrandt GmbH |
| Model / Part Number | F3501030 / 982200416 (F 35 01 SILWORX) |
| System Family | HIMatrix F35 Platform |
| Safety Integrity Level | SIL 3 (IEC 61508), SILCL 3 (IEC 62061), PL e / Cat 4 (EN ISO 13849-1) |
| Programming Environment | SILWorX Software Suite |
| Digital Inputs | 24 channels (24 VDC, short-circuit proof) |
| Digital Outputs | 8 channels (24 VDC, up to 0.5 A, safety-isolated) |
| Analog Inputs | 8 channels (0/4 to 20 mA or 0 to 10 V, 12-bit resolution) |
| Operating Voltage | 24 VDC (−15% / +20%), 2 A max current demand |
| Communication Protocols | safeethernet, Ethernet TCP/IP, Modbus TCP |
| Mounting Format | Standard 35 mm DIN Rail / Wall Mount |
| Operating Temperature | 0 °C to +60 °C (32 °F to 140 °F) |
Product Introduction & Supply Chain Strategy
The HIMA F3501030 (Part Number: 982200416 / F 35 01 SILWORX) is a fully integrated, compact safety controller engineered for high-integrity industrial automation applications. Combining 24 digital inputs, 8 digital outputs, and 8 analog inputs in a robust DIN-rail enclosure, the F3501030 provides real-time signal processing and safeethernet communication for distributed safety loops.
Maintaining a factory-sealed New Surplus F3501030 module on-site is a vital risk-mitigation strategy for continuous processing plants running SILWorX projects. Safety controllers deployed in high-demand environments face continuous thermal stress over years of operation. Refurbished units carry risks of internal optocoupler degradation or worn digital-to-analog converter stages, which can lead to signal calibration drift, false diagnostic trips, or unexpected safety interlock trips. Securing New Surplus stock guarantees factory-original timing, uncompromised isolation barriers, and full operating life expectancies.
Installation & Configuration Guide
1.Stage 1: Pre-Installation Setup:Prerequisite & Safety.
Execute Lock-Out/Tag-Out (LOTO) on primary power supplies and field current loops. Put on a grounded ESD wrist strap prior to handling the replacement controller. Document and label all terminal wire assignments to preserve channel polarity.
2.Stage 2: Controller Removal:Unseating the Module.
Unplug the removable front-panel terminal connectors and RJ45 safeethernet communication cables. Release the DIN-rail locking latch at the bottom rear of the enclosure using a flathead screwdriver, then pivot the controller upward off the 35 mm DIN rail.
3.Stage 3: Module Installation:Physical Mounting.
Snap the New Surplus F3501030 module securely onto the 35 mm DIN rail until the locking latch fully engages. Reconnect field terminal blocks, ensuring terminal screws are torqued to 0.5 Nm, and re-insert safeethernet network cables into designated ports.
4.Stage 4: Power-On & Logic Transfer:Commissioning & Diagnostics.
Apply 24 VDC auxiliary power to the controller. Confirm that the front-panel RUN LED illuminates solid green and that no ERR indicator persists. Connect your SILWorX engineering station, verify that the online project CRC matches your baseline archive, and perform a full loop check.
F3501030 982200416

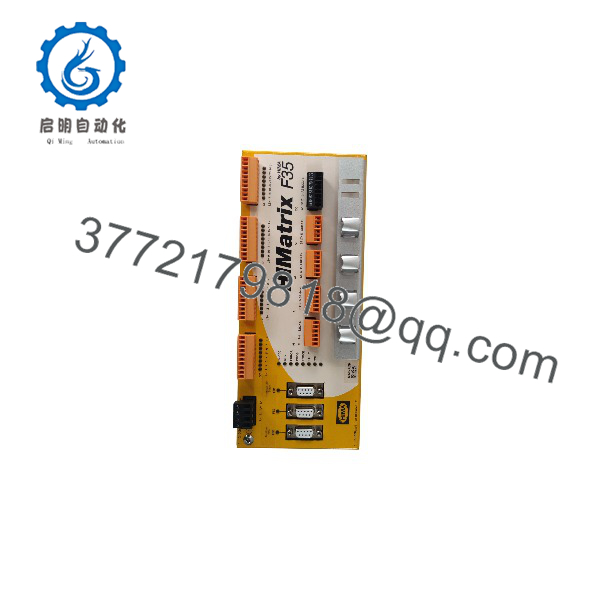

F3501030 982200416
Firmware & Engineering Notes
- Programming Suite Requirement: Exclusively configured, programmed, and diagnosed via the HIMA SILWorX engineering software suite. It is incompatible with legacy ELOP II projects.
- Firmware Version Alignment: Ensure the system operating system version configured in your SILWorX project file matches the OS build pre-loaded on the F3501030 hardware to avoid project download mismatch errors.
- Safety Checksum (CRC) Verification: Replacing hardware requires formal online confirmation of the safety application CRC checksum to maintain certified SIL 3 compliance under site Management of Change (MOC) guidelines.
Frequently Asked Questions (FAQ)
What is the exact difference between “F35 01 SILWORX” and “F35 01 ELOP II” controllers?
The designation “SILWORX” indicates that the controller’s internal operating system is configured for integration with HIMA SILWorX software. The “ELOP II” version runs legacy firmware designed for HIMA’s older ELOP II programming tool and cannot host SILWorX application projects.
Can the 982200416 be hot-swapped under power?
No. Main power and field loop power must be disconnected before removing or installing the controller. Swapping the controller under power can cause electrical transients, damage internal input/output stages, or cause unintended trips on connected field actuators.
What warranty applies to this New Surplus module?
All New Surplus HIMA (982200416) controllers undergo physical inspection, voltage tolerance verification, and ESD safety packaging, and are backed by a full 1-year replacement warranty.
