Key Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | HIMA Paul Hildebrandt GmbH |
| Model Number | F8652X |
| Part Number Cross-Reference | 984865202 |
| Safety Certification | SIL 3 according to IEC 61508, AK 6 according to DIN V 19250 |
| Architecture | 1oo2D (One-out-of-Two with Diagnostics) internal microprocessor pairing |
| Integrated Interfaces | 2x RS-485 serial communication ports (independent channels) |
| Programming Environment | ELOP II Software Platform |
| Hardware Form Factor | 19-inch Subrack Card, 3 HU (Height Units), 8 WU (Width Units) |
| Current Consumption | 5 V DC logic rail: Max 2.0 A derived via backplane assembly |
| Memory Architecture | Non-volatile Flash EPROM for operating system and application program |
| Operating Temperature | 0 to +60°C (32 to 140°F) |
| Net Weight | 1.87 lbs (0.85 kg) |
Product Introduction

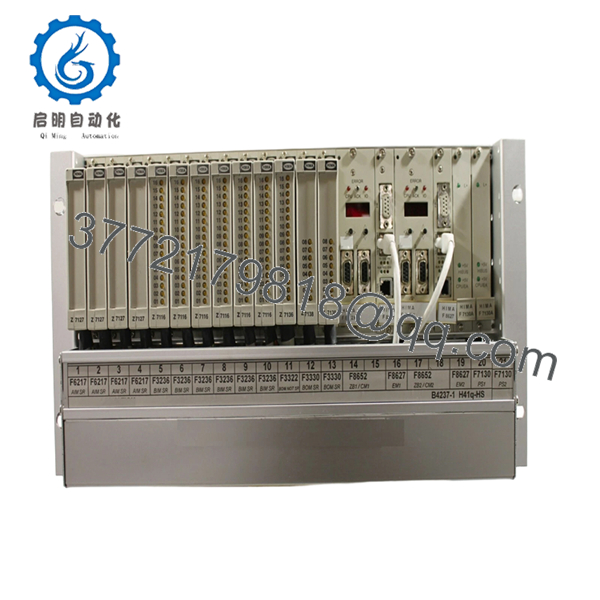

The HIMA F8652X is a safety-certified central processing unit designed to act as the primary computational core for high-availability HIQuad H51q programmable electronic systems. Engineered for mission-critical applications—including emergency shutdown (ESD), boiler protection, and burner management systems (BMS)—this card executes core safety logic at hardware levels required to manage hazardous plant processes safely.
Operating on a 1oo2D diagnostic structure, the F8652X utilizes two microprocessors running in synchronous lockstep to continuously verify execution states. If a mathematical deviation occurs between processors or an internal memory bit corrupts, the onboard hardware diagnostics identify the drift within milliseconds, driving the system to a predefined safe state. This architecture delivers high uptime alongside certified SIL 3 compliance, preventing hidden dangerous failures from compromising plant infrastructure.
- F8652X
Troubleshooting Quick Reference
| Symptom | Possible Cause | Relevance to this Part | Quick Check Method | Recommendation |
|---|---|---|---|---|
| Front-panel ERROR light solid red, diagnostic matrix display blank | Hardware watchdog timeout or catastrophic processor core failure | ✅ High | Isolate rack power and attempt a clean reboot. Check if the CPU ACK button responds during power up. | If the red error light stays continuously latched without generating a sub-fault code on the display, replace the CPU. |
| Fault code displayed on the front matrix (e.g., E2, E7) | Internal memory parity error or I/O bus communication drift | ✅ High | Document the exact character sequence on the integrated display panel before clearing. | Press the front ACK button to acknowledge. If the error code reappears during the next logic scan, swap the module. |
| CPU fails to communicate with ELOP II programming link | Serial interface port damage or incorrect baud rate mismatch | ✅ High | Measure the continuity of the RS-485 cable. Verify pinouts on the front sub-D interface ports using a multimeter. | Check your station address configuration inside the programming software; if ports are unresponsive, replace the processor. |
| Frequent system trips logged under heavy plant inductive load starts | Backplane 5 V DC logic supply dipping under high CPU current load | ❌ Low | Measure the main logic distribution bus voltage during plant operations using a Fluke 115 multimeter. | If the logic rail drops below 4.75 V DC, replace the central subrack power supply module before condemning the CPU. |
Note: For detailed code breakdowns or to analyze complex internal diagnostic buffers, pull your full ELOP II controller status dump and contact our technical systems support group.
Frequently Asked Questions (FAQ)
Can I swap a faulty HIMA F8652X CPU card while the rest of the safety rack remains live?
Absolutely not. The legacy backplane architecture utilized by the HIQuad series does not feature staggered pin layouts for hot-insertion. Pulling the F8652X processor card while the 5 V DC logic bus is energized can spark backplane transients, immediately damaging adjacent interface boards and corrupting system memory. Always drop all power to the subrack before performing a hardware replacement.
What is the functional difference between an F8650X and an F8652X processor card?
While both are SIL 3 rated processing chips for the HIQuad line, the F8652X features a hardware upgrade that provides higher processing capacity and improved calculation speed compared to the legacy F8650X. Additionally, the F8652X provides dual independent RS-485 serial ports directly on its front panel, allowing for separate programming and Modbus connectivity without requiring an extra communication module slot.
How do I ensure the replacement CPU matches the application program currently running on site?
The F8652X stores its runtime execution logic in non-volatile Flash memory. When replacing a damaged CPU card, you must reload the site-specific application project files via the ELOP II engineering workstation. Ensure your software compile checksum matches the original system log file before placing the new controller back into active safety service.
Why does my system throw an address fault immediately after dropping in the new card?
The F8652X relies on a set of physical configuration jumpers located on the rear section of the board layout to establish its central rack slot position and station index. If you slide a replacement board straight from its shipping container into the rack without checking these physical pins, the module will throw an address conflict. Take a clear photo of your original card’s jumper positions and match them precisely on the new unit.
What testing protocols do your New Surplus HIMA processors undergo prior to dispatch?
Every F8652X unit pulled from our controlled surplus reserves undergoes an intensive technical validation process. We inspect the multi-pin backplane connectors and onboard capacitors, run the unit through full power-on self-test (POST) diagnostic cycles within a live H51q rack, and verify active communication via both front panel RS-485 interfaces using ELOP II. The board is shipped in a static-shielding ESD bag backed by a comprehensive 1-year replacement warranty.
