HONEYWELL CC-PAIX01 Analog Input Module HART

Description

Key Technical Specifications

Product Introduction & Supply Chain Strategy

The Honeywell CC-PAIX01 is a 16-channel High-Level Analog Input module designed for the Experion PKS Series C I/O family. Mounted directly onto a dedicated I/O Termination Assembly (IOTA), it interfaces with 4-20 mA field transmitters to deliver real-time process monitoring for pressure, temperature, flow, and level control applications. Integrated HART pass-through capabilities enable the C300 controller to read secondary process variables and field device diagnostic flags without compromising loop signal integrity.

Sourcing the CC-PAIX01 as New Surplus inventory provides plant engineers and procurement teams with immediate access to genuine hardware while managing total cost of ownership. This product is a Brand New Surplus unit. It is not used, not pulled from a decommissioned plant, and not refurbished. All modules undergo rigorous quality verification to ensure OEM-level reliability. Avoiding second-hand or rebuilt cards eliminates the risks of analog drift, thermal circuit degradation, and premature loop failure. Holding a verified New Surplus CC-PAIX01 on-site secures your process loops against unexpected component trips and costly lead-time delays.

Installation & Configuration Guide

Stage 1: Pre-Installation (Prep & Safety)

1. Verify system loop power status or execute standard Removal and Insertion Under Power (RIUP) safety checks per plant operating procedures.
2. Put on an anti-static wrist strap attached to a verified chassis ground point to protect CMOS components from Electrostatic Discharge (ESD).
3. Confirm the targeted slot location in Honeywell Control Builder and inspect the IOTA base connector pins for cleanliness.

Stage 2: Removal

1. Loosen the top and bottom captive retaining screws on the CC-PAIX01 module faceplate using a flat-head screwdriver.
2. Pull the top and bottom module ejection tabs outward simultaneously to disengage the rear connector from the IOTA socket.
3. Slide the card straight out along the guide channels and place it into an ESD-shielded protective bag.

Stage 3: Installation (Clone & Seat)

1. Remove the replacement New Surplus CC-PAIX01 module from its anti-static packaging.
2. Align the board side-runners with the target IOTA slot guides.
3. Push the module firmly into place until the edge connector seats fully into the backplane. Torque the top and bottom retaining screws to 0.6 Nm.

Stage 4: Power-On & Testing

1. Observe the front panel LED indicators upon slot engagement. The green “PWR” LED should illuminate continuously.
2. Verify that the “OK” status LED changes from flashing green to solid green, signaling successful POST and controller communication.
3. Open Control Builder in Experion PKS to verify that channel parameters bind correctly and that live HART telemetry begins streaming without diagnostic errors.

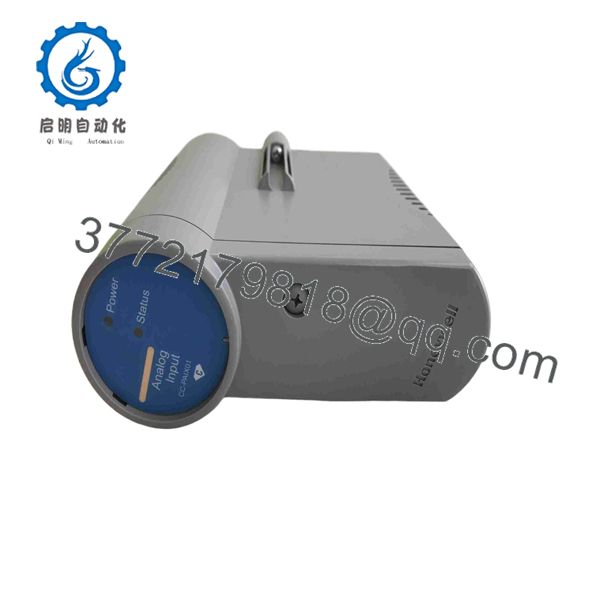

CC-PAIX01

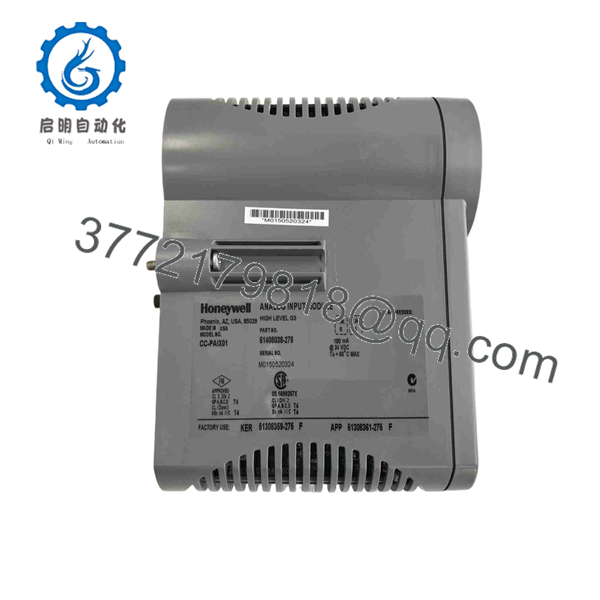

CC-PAIX01

Firmware/Software Versions & Upgrade Notes

• Software Compatibility: Fully supported across Experion PKS releases R300, R400, R500, and R511. C300 controller firmware must match the system I/O block definitions.
• Firmware Deployment: Firmware is updated automatically via the C300 Controller during module assignment in Control Builder. Manual EEPROM flashing is not required.
• Conformal Coating Variant: The CC-PAIX01 is the non-coated version of this module architecture. For harsh chemical environments requiring ISA-S71.04 Class G3 compliance, select the conformal-coated variant (CC-PAIH51).
• IOTA Hardware Parity: Mounts to standard 16-channel Analog Input IOTAs, such as CC-TAIX01 (non-redundant) or CC-TAIX11 (redundant). Mismatched hardware pairings will generate slot mismatch alarms in Experion diagnostics.

Frequently Asked Questions (FAQ)

Q: This unit is offered as New Surplus. How can I be certain it is not refurbished or used?

A: This product is a Brand New Surplus unit. It is not used, not pulled from a decommissioned plant, and not refurbished. All modules undergo rigorous quality verification to ensure OEM-level reliability. Our stock is sourced directly from canceled project inventories, plant spares consolidation, and authorized distribution channels. Every module features original factory markings, clean backplane connectors, and zero operation history.

Q: How does your pricing compare to buying factory-direct from Honeywell or a third-party refurbisher?

A: Our pricing reflects the cost of securing genuine New Surplus inventory globally. It may be 20–30% higher than a refurbished gamble, but it is substantially less than OEM list prices, and it buys you 100% peace of mind. You avoid long factory lead times while eliminating the high failure rates and hidden degradation associated with rebuilt parts.

Q: Can I hot-swap the CC- module while the C300 controller is online?

A: Yes. The Experion PKS Series C architecture supports Removal and Insertion Under Power (RIUP). You can replace a CC- card without interrupting system backplane power or disturbing adjacent active I/O cards on the same IOTA assembly.

Q: What is the main difference between CC- and CC-PAIH51?

A: Both modules share identical 16-channel 4–20 mA HART processing capabilities and terminal pinouts. The primary difference is environmental protection: CC-PAIH51 features conformal coating for ISA Class G3 harsh environments, whereas CC- is non-coated for standard control room cabinet environments.

Q: What warranty and quality verification process do you provide with this module?

A: We supply a 1-Year functional replacement warranty with every CC- card. Prior to dispatch, each module passes visual pin inspections, electrical continuity testing, and power-on self-test (POST) validation to ensure immediate deployment readiness.
