HONEYWELL CC-PAON01 Experion PKS Series C I/O Module

Description

Key Technical Specifications

Product Introduction & Supply Chain Strategy

The Honeywell CC-PAON01 is a 16-channel High-Level Analog Output module engineered for the Experion PKS Series C I/O architecture. Mounted onto an I/O Termination Assembly (IOTA), it translates digital control demands from C300 controllers into precise 4–20 mA current loops to modulate control valves, variable frequency drives, and positioners across continuous process facilities. Integrated HART pass-through capabilities allow loop maintenance tools and asset management platforms to pass configuration commands and retrieve smart positioner diagnostics simultaneously without interrupting control action.

Securing the CC-PAON01 as New Surplus inventory delivers immediate operational insurance while optimizing total procurement expenditure. This product is a Brand New Surplus unit. It is not used, not pulled from a decommissioned plant, and not refurbished. All modules undergo rigorous quality verification to ensure OEM-level reliability. Avoiding rebuilt or second-hand output drivers eliminates the hidden hazards of drifted digital-to-analog converters, worn output relays, and thermal stress failures. Keeping a verified New Surplus CC-PAON01 on-site ensures your plant maintains output loop integrity and avoids multi-thousand-dollar unit trip losses during hardware failures.

Installation & Configuration Guide

Stage 1: Pre-Installation (Prep & Safety)

1. Verify loop power status or follow plant-approved Removal and Insertion Under Power (RIUP) guidelines before touching active I/O racks.
2. Wear an anti-static wrist strap securely clamped to a ground point to protect sensitive onboard DAC circuitry from Electrostatic Discharge (ESD).
3. Confirm target card placement in Honeywell Control Builder and inspect the IOTA connector receptacle for dust or physical obstruction.

Stage 2: Removal

1. Unfasten the top and bottom captive retaining screws on the CC-PAON01 module faceplate using a flat-head screwdriver.
2. Pull the top and bottom ejector levers outward together to release the module edge contacts from the IOTA base socket.
3. Pull the module straight out along its guide tracks and seal it inside an ESD-safe protective bag immediately.

Stage 3: Installation (Clone & Seat)

1. Unpack the replacement New Surplus CC-PAON01 card from its factory static bag.
2. Align the board edges with the guide rails of the target IOTA slot.
3. Push the module firmly inward until the backplane contacts engage fully into the IOTA socket. Torque the faceplate retaining screws to 0.6 Nm.

Stage 4: Power-On & Testing

1. Observe the front panel status indicators during power delivery. The green “PWR” LED must illuminate continuously.
2. Confirm the “OK” status LED transitions from blinking green to solid green, signaling successful POST execution and controller synchronization.
3. Open Control Builder in Experion PKS to verify software channel binding, stroke test connected valves, and verify live HART diagnostic feedback across active channels.

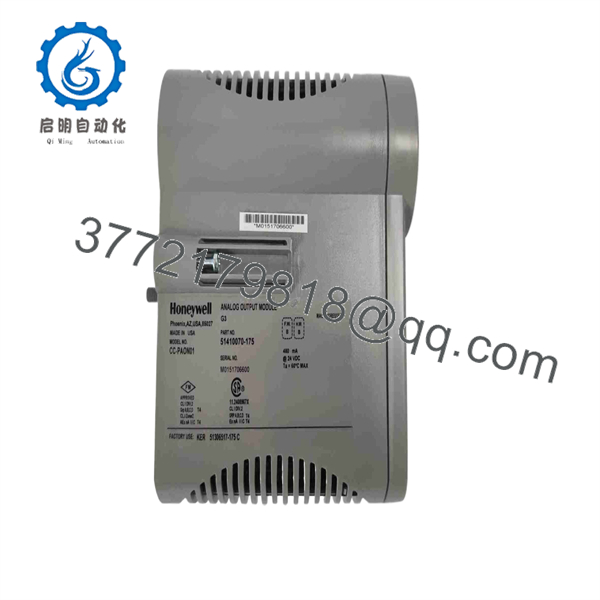

CC-PAON01

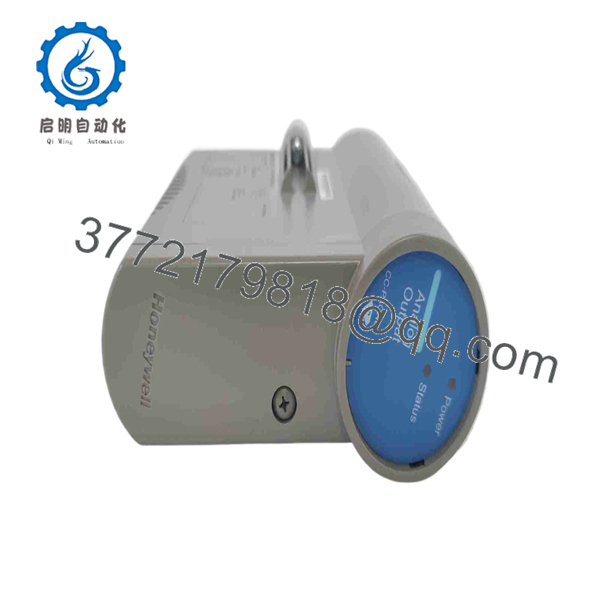

CC-PAON01

Firmware/Software Versions & Upgrade Notes

• Software Compatibility: Compatible with Experion PKS releases R300, R400, R500, and R511. Verify that C300 controller firmware matches the required system I/O execution environment.
• Firmware Flashing: Controller firmware pushes automatically to the CC-PAON01 card via the C300 Controller during module binding in Control Builder. Manual chip flashing or EEPROM swapping is not required.
• Conformal Coating Variant: The CC- is the standard non-coated version. For corrosive chemical environments requiring ISA-S71.04 Class G3 compliance, select the conformal-coated module (CC-PAOH51).
• IOTA Mounting: Mounts onto 16-channel Analog Output IOTAs, such as CC-TAOX01 (non-redundant) or CC-TAOX11 (redundant). Installing on an incorrect IOTA type will create hardware configuration fault flags in system software.

Frequently Asked Questions (FAQ)

Q: This module is listed as New Surplus. How can I be certain it is not refurbished or pre-owned?

A: This product is a Brand New Surplus unit. It is not used, not pulled from a decommissioned plant, and not refurbished. All modules undergo rigorous quality verification to ensure OEM-level reliability. Our stock is sourced directly from canceled engineering projects, warehouse surplus, and authorized supply chains. Every module features pristine edge connectors, clean board traces, factory labels, and zero operation history.

Q: Why is your pricing higher than rebuilt parts listed on online auctions, but lower than OEM list prices?

A: Our pricing reflects the cost of securing genuine New Surplus inventory globally. It may be 20–30% higher than a refurbished gamble, but it is substantially less than OEM list prices, and it buys you 100% peace of mind. Installing a refurbished output driver introduces thermal drift and component aging risks that can cause control valve cycling or unplanned loop trips.

Q: Can I hot-swap the CC- module while the C300 controller is online?

A: Yes. Experion PKS Series C architecture supports Removal and Insertion Under Power (RIUP). You can replace a CC- card while the system backplane remains powered without interrupting adjacent operational cards on the same IOTA assembly.

Q: What happens to the 4-20 mA outputs if the module loses communication with the C300 controller?

A: Channels execute user-configured hold-last-value or safe-state (0 mA or 4 mA) fallback actions programmed in Control Builder to ensure process safety during network interruptions.

Q: What warranty protection and QC testing come with this CC- module?

A: We supply a full 1-Year functional replacement warranty with every CC- module. Before shipping, each card undergoes physical connector checks, ground continuity verification, and power-on self-test (POST) validation to guarantee immediate plug-and-play field operation.
