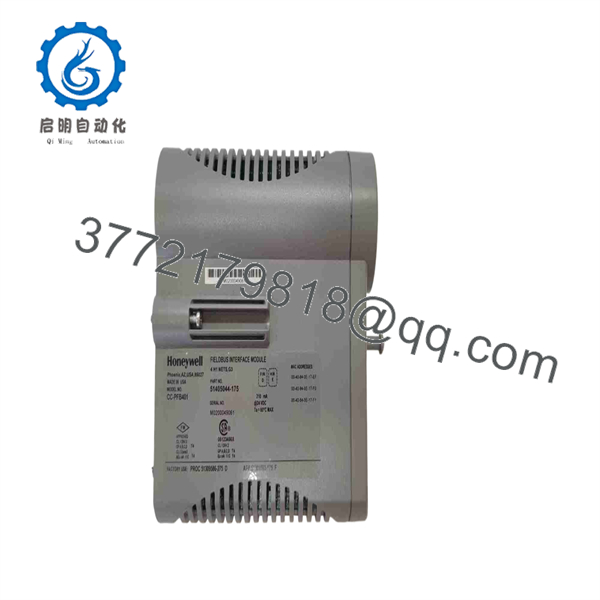

HONEYWELL CC-PFB401 Profibus DP Fieldbus Module

Description

Key Technical Specifications

Product Introduction & Supply Chain Strategy

The Honeywell CC-PFB401 is a high-performance Profibus DP Master interface module designed for the Experion PKS Series C platform. Mounted directly onto a dedicated I/O Termination Assembly (IOTA), it acts as a seamless communication gateway between Honeywell C300 controllers and third-party field instrumentation, motor control centers (MCCs), variable frequency drives (VFDs), and smart transmitters. Supporting transmission speeds up to 12 Mbps alongside DP-V1 acyclic messaging, the CC-PFB401 delivers real-time control variables and extended asset management diagnostics straight to the DCS engineering station.

Sourcing the CC-PFB401 as New Surplus inventory provides process plants with immediate availability while managing overall procurement capital. This product is a Brand New Surplus unit. It is not used, not pulled from a decommissioned plant, and not refurbished. All modules undergo rigorous quality verification to ensure OEM-level reliability. Avoiding second-hand or rebuilt communication gateways eliminates the risks of network timing jitter, corrupted GSD device profiles, and sudden communication drops. Keeping a verified New Surplus CC-PFB401 on-site ensures rapid fieldbus recovery and prevents multi-thousand-dollar plant outages during gateway failures.

CC-PFB401

CC-PFB401

Installation & Configuration Guide

Stage 1: Pre-Installation (Prep & Safety)

1. Verify system loop power status or adhere to plant-approved Removal and Insertion Under Power (RIUP) guidelines before accessing live I/O cabinets.
2. Put on an anti-static wrist strap connected to a verified chassis ground point to protect sensitive internal CMOS components from Electrostatic Discharge (ESD).
3. Confirm target slot assignment in Honeywell Control Builder and verify that the DB9 or terminal block connections on the IOTA base are securely terminated with proper RS-485 bus end-resistors (120 Ohm).

Stage 2: Removal

1. Loosen the top and bottom captive retaining screws on the CC-PFB401 faceplate using a flat-head screwdriver.
2. Pull the top and bottom module ejector tabs outward simultaneously to disengage the rear edge connector from the IOTA socket.
3. Slide the board straight out along the card guide rails and place it directly inside an anti-static shield bag.

Stage 3: Installation (Clone & Seat)

1. Remove the replacement New Surplus CC-PFB401 module from its protective ESD packaging.
2. Align the board side-runners with the card guide tracks on the target IOTA slot.
3. Push the module firmly inward until the rear backplane connectors seat completely into the IOTA socket. Torque the top and bottom faceplate screws to 0.6 Nm.

Stage 4: Power-On & Testing

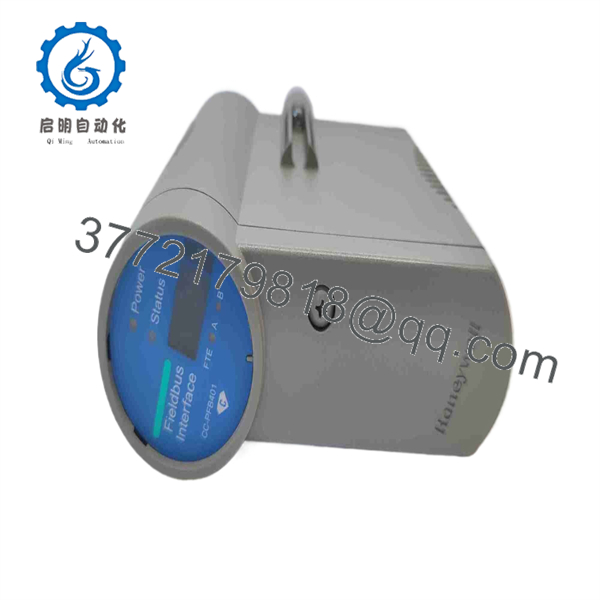

1. Observe the front panel LED indicators upon slot engagement. The green “PWR” LED must illuminate continuously.
2. Verify that the “OK” status LED transitions from blinking green to solid green, indicating successful self-test execution and C300 controller handshake.
3. Open Control Builder in Experion PKS to verify that the Profibus DP network tree online state shows all slave devices healthy without cyclic frame drops or bus-off errors.

Firmware/Software Versions & Upgrade Notes

• Software Compatibility: Fully supported across Experion PKS releases R300, R400, R500, and R511. Ensure target C300 controller firmware matches the required Profibus block definitions.
• Firmware Flashing: Firmware updates are pushed automatically to the CC- via the C300 Controller during module assignment in Control Builder. Manual EEPROM flashing is not required.
• Conformal Coating Variant: The CC- is the standard non-coated version. For harsh chemical environments requiring ISA-S71.04 Class G3 compliance, select the conformal-coated variant (CC-PFB402).
• IOTA Mounting: Mounts onto standard Profibus DP IOTAs, such as CC-TFB401 (non-redundant) or CC-TFB411 (redundant). Mismatched hardware pairings will trigger slot assignment errors in system diagnostics.

Frequently Asked Questions (FAQ)

Q: This unit is listed as New Surplus. How can I be certain it is not pre-owned or rebuilt?

A: This product is a Brand New Surplus unit. It is not used, not pulled from a decommissioned plant, and not refurbished. All modules undergo rigorous quality verification to ensure OEM-level reliability. Our inventory originates directly from canceled construction projects, plant MRO spare holds, and authorized supply channels. Every unit features pristine backplane contacts, clean circuit boards, factory serial tags, and zero operational history.

Q: How does your pricing compare to buying factory-direct from Honeywell or an online broker?

A: Our pricing reflects the cost of securing genuine New Surplus inventory globally. It may be 20–30% higher than a refurbished gamble, but it is substantially less than OEM list prices, and it buys you 100% peace of mind. You avoid long factory lead times while eliminating the high failure rates and network latency risks associated with used cards.

Q: Can I hot-swap the CC- module while the C300 controller is online?

A: Yes. The Experion PKS Series C architecture supports Removal and Insertion Under Power (RIUP). You can safely replace a CC- card without interrupting backplane power or disturbing adjacent active I/O cards on the same IOTA assembly.

Q: What is the primary difference between CC- and CC-PFB402?

A: Both modules share identical Profibus DP-V1 master communication processing logic and IOTA terminal interfaces. The distinction is environmental protection: CC-PFB402 features heavy-duty conformal coating for ISA Class G3 harsh environments, whereas CC- is non-coated for standard control room cabinets.

Q: What warranty and quality verification process do you provide with this module?

A: We supply a full 1-Year functional replacement warranty with every CC- card. Prior to dispatch, each module passes visual pin inspections, electrical continuity testing, and power-on self-test (POST) validation to guarantee immediate plug-and-play field operation.
