HONEYWELL CC-TAID01 Analog Input IOTA Block

Description

Key Technical Specifications

Product Introduction & Supply Chain Strategy

The Honeywell CC-TAID01 is a 16-channel non-redundant Analog Input I/O Termination Assembly (IOTA) engineered for the Experion PKS Series C architecture. Serving as the primary physical bridge between field transmitters and Series C processor logic, the CC-TAID01 provides robust screw terminal terminations, fused 24 VDC transmitter power distribution, and the mechanical receptacle for Analog Input cards (such as CC-PAIX01 or CC-PAIH51). Its differential input wiring design cancels common-mode electrical noise across long field cable runs in oil refineries, power stations, and chemical processing plants.

Securing the CC-TAID01 as New Surplus inventory provides immediate operational protection and avoids extended OEM fabrication lead times. This product is a Brand New Surplus unit. It is not used, not pulled from a decommissioned plant, and not refurbished. All modules undergo rigorous quality verification to ensure OEM-level reliability. Avoiding second-hand or rebuilt base plates eliminates the hazards of cracked terminal housing blocks, stripped screw threads, and corroded backplane connector pins. Keeping a verified New Surplus CC-TAID01 on-site ensures rapid field loop restoration during accidental terminal strip damage or overvoltage field surges.

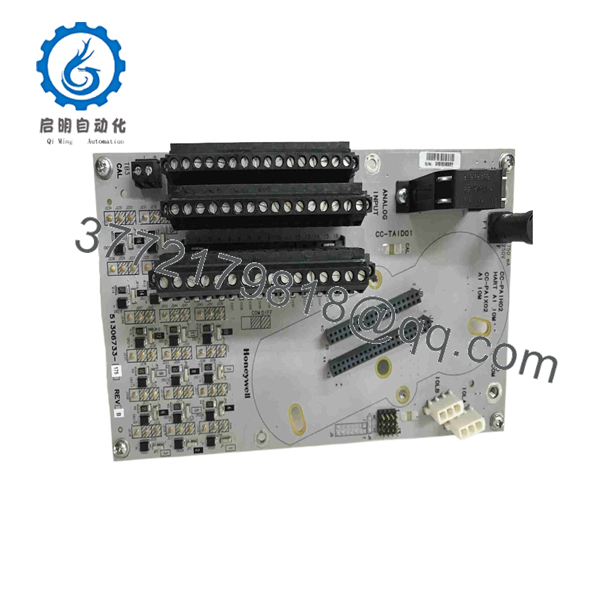

CC-TAID01

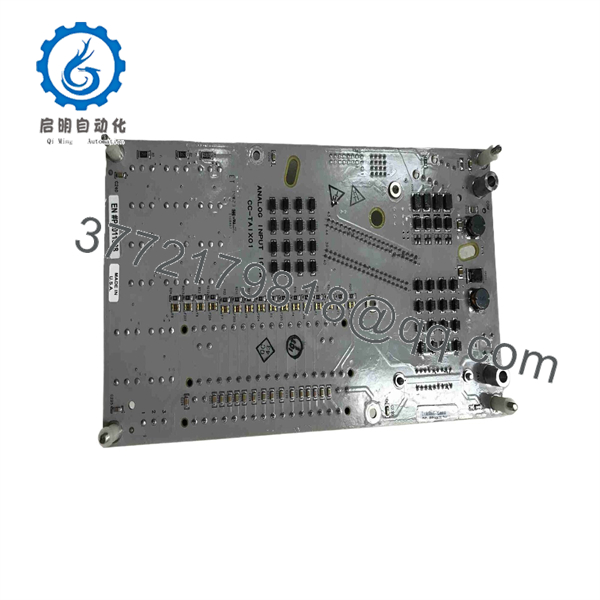

CC-TAID01

Installation & Configuration Guide

Stage 1: Pre-Installation (Prep & Safety)

1. Execute full Lock-Out/Tag-Out (LOTO) on the incoming 24 VDC power feeder supplying the targeted I/O carrier rack.
2. Put on an anti-static wrist strap connected to a verified chassis ground point to prevent Electrostatic Discharge (ESD) damage during handling.
3. Inspect field wiring bundles for proper channel labels, ferrules, and shield grounding wire preparation.

Stage 2: Removal

1. Disconnect the Analog Input module (e.g., CC-PAIX01) mounted on the CC-TAID01 by loosening its faceplate retaining screws and pulling it clear.
2. Unplug or loosen all field wiring connections from the screw terminal blocks, noting channel numbers for accurate reinstallation.
3. Unfasten the DIN rail locking latches or carrier channel mounting screws, then slide the CC-TAID01 base plate off the assembly frame.

Stage 3: Installation (Clone & Seat)

1. Remove the replacement New Surplus CC- IOTA from its ESD-protective packaging.
2. Snap the CC- onto the DIN rail or carrier channel and tighten the mounting hardware to secure it to the cabinet plane.
3. Reconnect field wiring to the corresponding screw terminals, maintaining differential signal polarities (+, −, and Shield). Torque terminal screws to 0.5 Nm.

Stage 4: Power-On & Testing

1. Re-seat the Analog Input module into the CC- socket and secure its top and bottom retaining screws.
2. Restore 24 VDC power to the assembly. Check that loop supply voltage across active field terminals measures within 21.6 to 26.4 VDC.
3. Verify via Experion Control Builder that all 16 analog loop signals read accurately and that no backplane power or open-circuit fault alarms are present.

Firmware/Software Versions & Upgrade Notes

• Passive Hardware Architecture: As a physical termination assembly, the CC- contains no programmable microprocessors or onboard firmware. Compatibility is governed by the mounted active I/O module (e.g., CC-PAIX01).
• Conformal Coating Variant: The CC- is the standard non-coated version. For corrosive chemical processing environments requiring ISA-S71.04 Class G3 compliance, select the conformal-coated variant (CC-TAID51).
• Redundancy Selection: The CC- supports single, non-redundant module execution only. If loop fault tolerance is required, select the redundant IOTA variant (CC-TAID11).
• Module Matching: Designed specifically for differential analog input modules. Do not attempt to mount digital or output modules onto the CC- socket, as physical keying and pinouts differ.

Frequently Asked Questions (FAQ)

Q: This unit is listed as New Surplus. How can I be certain it is not pre-owned or rebuilt?

A: This product is a Brand New Surplus unit. It is not used, not pulled from a decommissioned plant, and not refurbished. All modules undergo rigorous quality verification to ensure OEM-level reliability. Our inventory originates directly from canceled construction projects, plant MRO spare holds, and authorized supply channels. Every unit features pristine terminal contacts, clean circuit tracks, factory serial tags, and zero operational history.

Q: How does your pricing compare to buying factory-direct from Honeywell or an online broker?

A: Our pricing reflects the cost of securing genuine New Surplus inventory globally. It may be 20–30% higher than a refurbished gamble, but it is substantially less than OEM list prices, and it buys you 100% peace of mind. You avoid long factory lead times while eliminating the high failure rates and loose terminal connections associated with used base cards.

Q: Can I replace a CC- termination assembly while the system is powered?

A: No. While active I/O cards support Removal and Insertion Under Power (RIUP), replacing the underlying CC- IOTA requires disconnecting main field wiring and backplane power feeds. Always isolate power before replacing physical termination bases.

Q: What is the primary difference between CC- and CC-TAID51?

A: Both assemblies share identical 16-channel differential terminal layouts and mounting footprints. The distinction is environmental protection: CC-TAID51 features heavy-duty conformal coating for ISA Class G3 harsh environments, whereas CC- is non-coated for standard control room cabinets.

Q: What warranty and quality verification process do you provide with this module?

A: We supply a full 1-Year functional replacement warranty with every CC- assembly. Prior to dispatch, each base plate undergoes physical terminal block checks, ground continuity testing, and pin-to-pin insulation resistance checks to guarantee immediate deployment readiness.
