Honeywell CC-TAIN01 Analog Input Module

Key Technical Specifications

Product Introduction & Supply Chain Strategy

The Honeywell CC-TAIN01 is a Series C analog input module designed for Honeywell Experion PKS process control systems. It acquires analog field measurements from transmitters and sensors, allowing the C300 controller to monitor process variables such as pressure, temperature, flow, and level.

Maintaining New Original / New Surplus CC-TAIN01 inventory helps plants protect long-term operation of installed Honeywell control systems. For lifecycle-managed assets, planned Buffer stock reduces exposure to EOL availability issues, emergency sourcing delays, and high downtime costs while improving Total Cost of Ownership (TCO).

Installation & Configuration Guide

Stage 1: Pre-Installation (Prep & Safety)

• Apply approved lock-out/tag-out procedures before accessing control hardware.
• Verify the replacement part number is exactly CC-TAIN01.
• Wear an ESD wrist strap before handling the module.
• Record existing installation details:
  • I/O rack and slot position
  • Channel assignments
  • Field transmitter wiring
  • Input scaling parameters
  • Existing hardware revision

Required tools:

• ESD protection equipment
• Insulated screwdriver
• Multimeter
• Honeywell Experion PKS engineering workstation

Stage 2: Removal

1. Place affected process loops into approved maintenance mode.
2. Confirm module status through Experion PKS diagnostics.
3. Isolate power according to site procedures.
4. Remove field wiring carefully and label all connections.
5. Release the module retaining mechanism.
6. Pull the existing module straight out to protect backplane contacts.

Do not apply side force to the module connector during removal.

Stage 3: Installation (Clone & Seat)

1. Inspect the replacement CC-TAIN01 label and condition.
2. Confirm hardware compatibility with the existing Series C configuration.
3. Insert the module into the assigned I/O position.
4. Secure the module retention mechanism.
5. Reconnect field wiring based on documented wiring records.
6. Verify channel mapping and input configuration.

Stage 4: Power-On & Testing

1. Restore power following site procedures.
2. Check module diagnostic LEDs.
3. Confirm communication with the C300 controller.
4. Verify module recognition in Experion PKS.
5. Perform input loop checks:
   • Signal presence
   • Engineering unit scaling
   • Transmitter response
   • Alarm limits

Document final readings before returning the loop to operation.

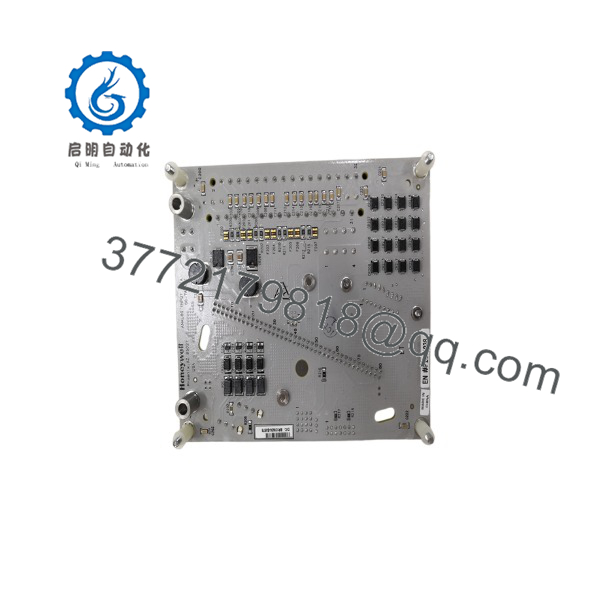

CC-TAIN01

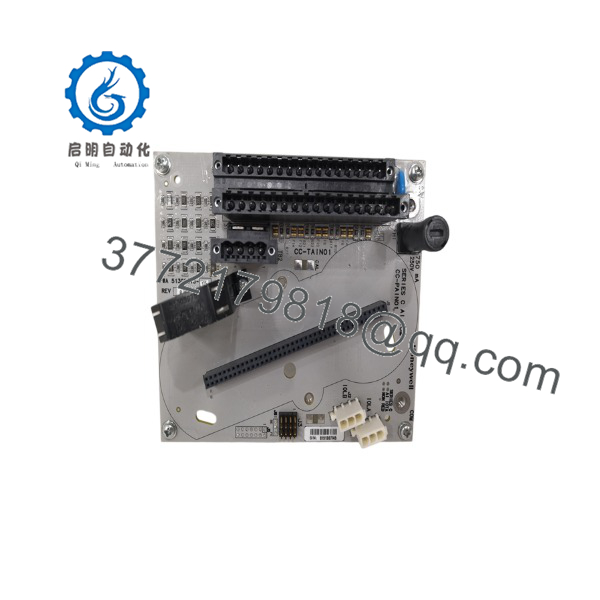

CC-TAIN01

Firmware/Software Versions & Upgrade Notes

• Firmware: Dependent on Honeywell Series C module revision.
• Software Dependency: Requires compatibility with the installed Experion PKS release and C300 controller firmware.
• Recommended Verification:
  • Existing module firmware/hardware revision
  • Controller firmware version
  • Experion PKS database configuration
  • I/O channel assignments

Upgrade Warning:

Avoid firmware upgrades during emergency module replacement unless compatibility has been validated. A mismatch between module revision and system software may cause communication errors, configuration rejection, or incorrect input scaling.

Before replacement:

• Export current configuration data.
• Record existing module revision.
• Confirm approved replacement revision.

Frequently Asked Questions (FAQ)

Q1: Is the Honeywell CC-TAIN01 a New Original module?
Yes. New Original / New Surplus CC- modules are unused OEM components intended for industrial replacement requirements. They are not refurbished or repaired units.

Q2: Why purchase New Surplus instead of a lower-priced alternative?
For process automation systems, input module failures can affect critical monitoring functions. Genuine New Surplus inventory provides a controlled replacement option and reduces uncertainty during maintenance events.

Q3: Is the CC- an obsolete Honeywell component?
The CC- is part of the Honeywell Experion PKS Series C lifecycle. Plants operating existing C300 systems should monitor availability and maintain lifecycle spare strategies.

Q4: Can the CC- be replaced without changing the control application?
Usually, the control strategy remains unchanged. However, I/O database verification and channel validation are required before returning the process loop to service.

Q5: Does the CC- require PLC programming?
No. The module is configured through Honeywell Experion PKS engineering tools rather than traditional PLC programming software.

Q6: How should plants stock CC- spare modules?
For critical measurement loops, maintaining 1–2 spare units on-site is recommended. Less critical applications may use centralized inventory with reliable supplier support.

Q7: What information should be checked before ordering CC-?
Confirm:

• Exact module model
• Hardware revision
• Experion PKS version
• C300 controller compatibility
• Existing channel configuration

Correct verification prevents commissioning delays and incorrect spare purchases.
