HONEYWELL CC-TUIO31 Universal I/O Redundant IOTA Block

Description

Key Technical Specifications

Product Introduction & Supply Chain Strategy

The Honeywell CC-TUIO31 is a 32-channel redundant Universal Input/Output Termination Assembly (IOTA) designed for maximum flexibility and high availability in the Experion PKS Series C system. Equipped with dual mounting slots, it accommodates two Universal I/O cards (such as CC-PUIO01 or CC-PUIO31) operating in a fault-tolerant active/standby pair. The CC-TUIO31 enables software-configurable channel types—allowing any channel to be configured individually as Analog Input (AI), Analog Output (AO), Digital Input (DI), or Digital Output (DO)—while providing dual power routing and signal distribution to both modules.

Securing the CC-TUIO31 as New Surplus inventory provides immediate operational availability and bypasses extended OEM production timelines. This product is a Brand New Surplus unit. It is not used, not pulled from a decommissioned plant, and not refurbished. All modules undergo rigorous quality verification to ensure OEM-level reliability. Avoiding second-hand base plates eliminates the hazards of worn card sockets, stripped terminal screws, and trace degradation. Keeping a verified New Surplus CC-TUIO31 on hand ensures rapid recovery during field cabinet incidents without compromising channel redundancy.

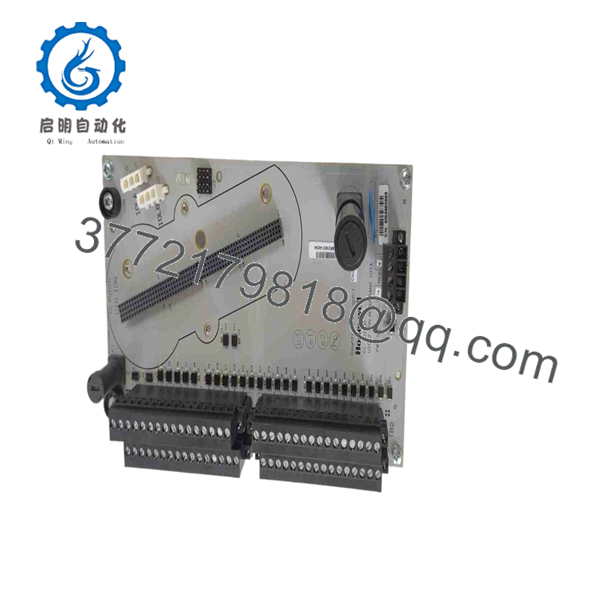

CC-TUIO31

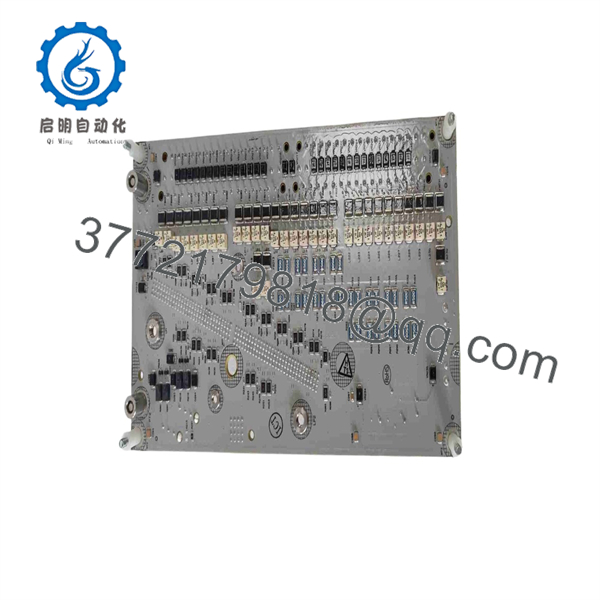

CC-TUIO31

Installation & Configuration Guide

Stage 1: Pre-Installation (Prep & Safety)

1. Execute full Lock-Out/Tag-Out (LOTO) on both incoming 24 VDC power supply feeders powering the targeted Series C carrier rack.
2. Put on an anti-static wrist strap connected to a verified chassis ground point to prevent Electrostatic Discharge (ESD) damage.
3. Review channel assignment schedules in Honeywell Control Builder to confirm signal types (AI, AO, DI, DO) for all 32 field loops.

Stage 2: Removal

1. Loosen the faceplate retaining screws on both mounted Universal I/O cards and pull them straight off the CC-TUIO31 sockets.
2. Disconnect field signal wires from the screw terminal blocks, carefully recording wire markers and channel numbers.
3. Release the DIN rail locking clips or carrier frame mounting screws, then lift the CC-TUIO31 base assembly off the channel frame.

Stage 3: Installation (Clone & Seat)

1. Remove the replacement New Surplus CC- base plate from its static-shielding bag.
2. Snap the CC- onto the DIN rail or carrier frame and tighten all mounting hardware securely.
3. Reattach field wiring to the designated screw terminals (+, −, and Shield) and torque screws to 0.5 Nm.

Stage 4: Power-On & Testing

1. Align primary and secondary Universal I/O modules with the card guide rails, push firmly until seated, and secure faceplate screws.
2. Restore 24 VDC power to both feeders. Check that loop power across active field terminal pairs measures within 21.6 to 26.4 VDC.
3. Open Experion Control Builder to verify that the C300 controller detects both primary and standby cards, channel configurations load correctly, and all 32 Universal loops process signals without backplane alarms.

Firmware/Software Versions & Upgrade Notes

• Passive Base Architecture: The CC- is a physical termination assembly containing no programmable microprocessors or onboard firmware. Compatibility is governed by the active Universal I/O modules mounted on it (e.g., CC-PUIO31).
• Software Channel Configuration: Channel personalities (AI, AO, DI, DO) are soft-configured in Experion PKS software. No physical jumpers or hardware dip-switches are required on the CC- base.
• Conformal Coating Variant: The CC- is the standard non-coated execution. For corrosive chemical or offshore environments requiring ISA-S71.04 Class G3 compliance, choose the conformal-coated redundant variant (CC-TUIO41).
• Redundancy Selection: Designed specifically for dual-card redundant operation. For single-card, non-redundant Universal I/O installations, select the standard single IOTA variant (CC-TUIO01 or CC-TUIO11).

Frequently Asked Questions (FAQ)

Q: This unit is listed as New Surplus. How can I be certain it is not pre-owned or refurbished?

A: This product is a Brand New Surplus unit. It is not used, not pulled from a decommissioned plant, and not refurbished. All modules undergo rigorous quality verification to ensure OEM-level reliability. Our inventory is sourced directly from canceled project stock, plant spare holds, and official distributor surpluses. Every unit features pristine screw terminals, clean circuit tracks, factory tags, and zero operating time.

Q: How does your pricing compare to buying factory-direct from Honeywell or an online broker?

A: Our pricing reflects the cost of securing genuine New Surplus inventory globally. It may be 20–30% higher than a refurbished gamble, but it is substantially less than OEM list prices, and it buys you 100% peace of mind. You avoid multi-week factory lead times while eliminating the high failure rates and loose terminal connections associated with used base cards.

Q: Can I hot-swap one of the active Universal I/O modules on the CC- while the system is running?

A: Yes. The CC- supports Removal and Insertion Under Power (RIUP) for active cards. You can safely replace a faulty Universal I/O card in slot A while the standby module in slot B continues handling live field signals without interrupting control logic.

Q: What is the main difference between CC- and CC-TUIO41?

A: Both assemblies share identical 32-channel redundant screw terminal layouts and mounting dimensions. The distinction is environmental protection: CC-TUIO41 features heavy-duty conformal coating for ISA Class G3 harsh environments, whereas CC- is non-coated for standard control rooms.

Q: What warranty and quality verification process do you offer with this module?

A: We supply a full 1-Year functional replacement warranty with every CC- assembly. Prior to dispatch, each base plate undergoes terminal block mechanical checks, ground continuity testing, and pin-to-pin insulation resistance tests to guarantee immediate field deployment readiness.
