3. Key Technical Specifications
| Parameter | Value |
|---|---|
| Output Channels | 8 safe digital outputs |
| Output Type | 24 Vdc solid-state source, short-circuit proof |
| Maximum Current | 550 mA per channel (derated at elevated temperature) |
| Maximum Lamp Load | 120 mA (2.9 W) |
| Maximum Load Capacitance | 1 μF |
| Voltage Drop | < 2.0 V at 500 mA |
| Off-State Current | < 0.1 mA |
| Power Requirements | 5 Vdc @ 25 mA; 24 Vdc int. @ 25 mA; 24 Vdc ext. @ 70 mA (no load) |
| WDG Input Current | 8 mA |
| Safety Certification | TÜV SIL3 (IEC 61508) |
| Approvals | CE, TUV, UL, CSA, FM |
| Space Requirements | 4 TE, 3 HE (4 HP, 3U) |
| Key Coding | Module: A9/C9; Chassis: A9/C9 |
4. Product Introduction
The Honeywell FC-SDO-0824 V1 is an 8-channel safe digital output module for the Safety Manager system. It delivers 24 Vdc solid-state sourcing outputs rated at 550 mA per channel for driving solenoids, actuators, and other critical field devices in Safety Instrumented Systems and emergency shutdown applications.
Each channel is short-circuit proof with electronic current limiting and includes integrated suppression for inductive loads. Continuous diagnostics verify the ability to de-energize, secondary means of de-energizing (SMOD), crosstalk, and suppression diode function. Outputs are grouped for selective shutdown. The V1 conformal-coated version mounts in standard Safety Manager chassis with key-coded connectors.
5. Troubleshooting Quick Reference
| Symptom | Possible Cause | Relevance to this Part | Quick Check Method | Recommendation |
|---|---|---|---|---|
| All outputs stuck OFF / module offline | Power missing or module not seated | ✅ High | Verify 5 V and 24 V present; reseat module and confirm key coding A9/C9 | Confirm power and connector engagement before replacement |
| Single channel will not energize | Field short, open load, or channel fault | ✅ Medium | Measure voltage at output terminals under commanded ON; check field wiring resistance | Clear field short or replace load; if voltage is present at module but not at load, check wiring |
| Output trips on short-circuit | Field wiring short or excessive load | ✅ High | Measure load current and capacitance; verify < 550 mA and < 1 μF | Repair short or reduce load; module self-resets after fault clears |
| Diagnostic fault on de-energize test | Internal output transistor or SMOD failure | ✅ High | Review diagnostic buffer for de-energize or secondary means of de-energizing faults | Module replacement typically required if hardware diagnostics confirm failure |
| Unexpected output de-energization | Watchdog timeout or safety logic demand | ❌ Low | Check Safety Manager logic and WDG signal integrity | Verify application logic and communication before suspecting the module |
If diagnostics remain unclear, capture the diagnostic buffer, LED status, and photos of the module and field terminations, then contact technical support.

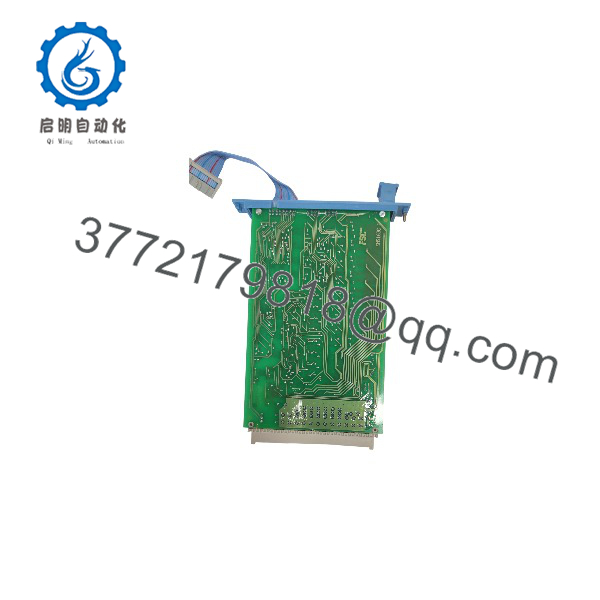

FC-SDO-0824 V1

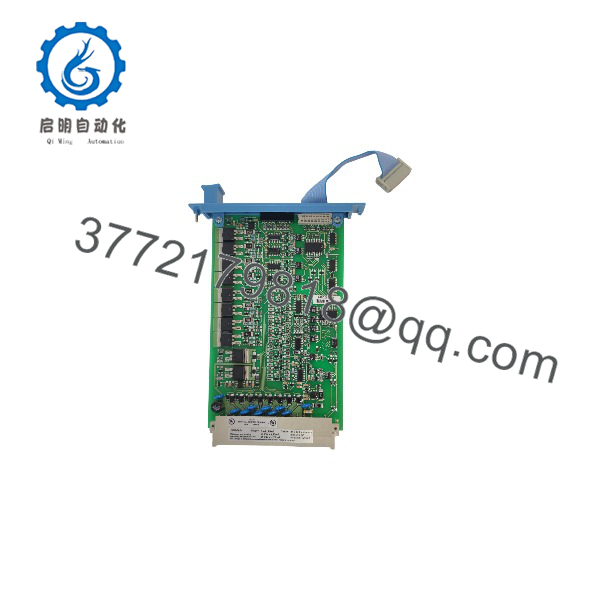

FC-SDO-0824 V1
6. Frequently Asked Questions (FAQ)
Q: Does the FC-SDO-0824 V1 require a specific Field Termination Assembly?
Yes. Most installations use a matching FTA (such as FC-TSDO-0824 or equivalent) for field wiring, isolation, and convenient termination. The module itself provides the solid-state outputs, but the FTA simplifies installation and provides the required interface.
Q: Is this module hot-swappable?
No. Power down the Safety Manager chassis before removing or inserting the module. Hot-swapping risks backplane damage and can trigger system faults.
Q: What is the difference between FS-SDO-0824 and FC-SDO-0824 V1?
FS = non-conformal coated; FC = conformal coated (standard for the V1 units commonly stocked). Functionally identical 8-channel 24 Vdc 0.55 A safe digital output modules. Confirm the exact revision required by your Safety Manager system.
Q: Can the outputs drive inductive loads such as solenoids?
Yes. The module includes integrated suppression diodes for back-EMF. Observe the 550 mA maximum current and 1 μF maximum capacitance limits. For higher inductive energy, external suppression may still be required.
Q: Why is new surplus pricing lower than current Honeywell list price?
These are genuine OEM modules that were surplus to project requirements or excess factory stock. They are unused, original, and fully functional. They carry a 1-year warranty from the seller and are tested prior to shipment.
Q: How does the secondary means of de-energizing (SMOD) work?
Outputs are divided into groups. The watchdog and processor can force de-energization of an entire group independently of the application logic. This provides a second, independent path to the safe (de-energized) state.
Q: What testing is performed before shipment?
Inbound visual and anti-counterfeit inspection, power-up on a genuine Safety Manager test rack, channel verification (ON/OFF, short-circuit response, voltage drop), diagnostic self-test confirmation, and generation of a test report. Photos and video of the functional test are available on request.
