Honeywell FC-TDIO51 16-Channel Safety Field Termination Assembly

Description

Key Technical Specifications

Parameter	Value
Manufacturer	Honeywell
Model	FC-TDIO51
System	Safety Manager SC
Product Type	Safety Field Termination Assembly
FTA Description	SC SAFETY FTA KNIFE, EOL, 24VDC, 16CH, L
Number of Field Circuits	16
Field Voltage	24 VDC
Termination Type	Knife disconnect
End-of-Line Function	EOL
Mounting Position	Left
Associated I/O Module	FC-PDIO01
Associated IOTA	FC-TDIO11
Right-Side Companion	FC-TDIO52
TÜV Report	968/FSP 1657.01/18
Safety System Code	SC
Certification Status in Release List	Valid

Honeywell’s certification/release documentation identifies FC-TDIO51 specifically as “SC SAFETY FTA KNIFE, EOL, 24VDC, 16CH, L.” The same document identifies FC-TDIO52 as the corresponding right-side FTA.

Important Identification Detail

FC-TDIO51 should not be confused with FC-PDIO01.

• FC-PDIO01: Safety Manager SC 32-channel digital I/O module.
• FC-TDIO11: Redundant IOTA for the PDIO system.
• FC-TDIO51: Left-side 16-channel Safety FTA.
• FC-TDIO52: Right-side 16-channel Safety FTA.

Honeywell’s software change documentation explicitly defines this hardware relationship.



Product Introduction

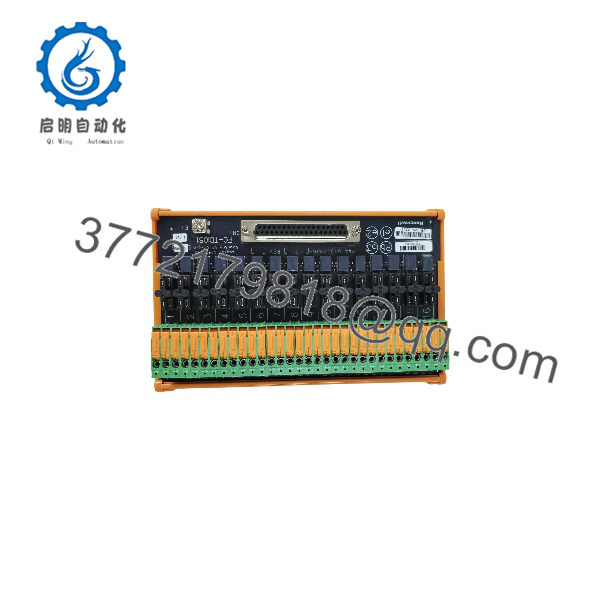

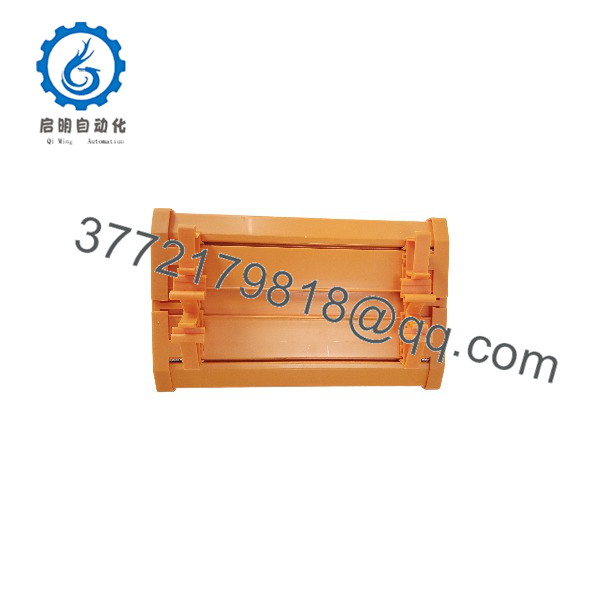

The Honeywell FC-TDIO51 is a 16-channel Safety Field Termination Assembly (FTA) for Honeywell Safety Manager SC systems. It provides the field-side termination interface for compatible digital I/O circuits and is specified as a 24 VDC, knife-disconnect, EOL-equipped, left-side FTA.

The FC-TDIO51 is normally used as part of the Safety Manager SC digital I/O architecture rather than as an independent I/O processing module. Honeywell’s supported-hardware documentation associates it directly with the FC-PDIO01 32-channel Safety DIO I/O module and the FC-TDIO11 redundant IOTA.

This distinction is important when sourcing replacement hardware. Some aftermarket listings describe FC- as a “digital I/O module” or even assign input/output channel counts to the part itself. The Honeywell certification documentation instead identifies it as a Safety FTA. The actual I/O processing function resides in the associated FC-PDIO01 module.

FTA Architecture

The FC- provides the physical field termination layer between the plant wiring and the Safety Manager SC I/O architecture.

Its documented characteristics include:

• 16 field circuits
• 24 VDC field interface
• Knife disconnect termination
• End-of-line functionality
• Left-side installation
• Integration with FC-PDIO01
• Integration with FC-TDIO11

The right-side counterpart is FC-TDIO52. Honeywell’s release list identifies both devices under the same TÜV report, with FC- designated L and FC-TDIO52 designated R.

Safety Manager SC Compatibility

Honeywell’s R210.2 software change documentation lists the following PDIO hardware combination:

FC- → FC-TDIO11 → FC- / FC-TDIO52

The newer R210.6 documentation retains the same FC- and FTA combination in the supported Safety Manager SC hardware list.

This makes the FC- a system-specific termination component. Replacement should therefore be based on the complete I/O architecture rather than on channel count or voltage alone.

Installation & Configuration Guide

5.1 Verify the Hardware Chain

Before replacing an FC-, confirm the installed architecture:

Safety Controller → FC- → FC-TDIO11 → FC- / FC- → Field Wiring

The FC- is the left-side FTA. FC- is the corresponding right-side unit.

Do not substitute FC-TUIO51 or FC-TUIO52 simply because those parts also use knife/EOL termination. Those FTAs belong to the FC-PUIO01 Universal I/O architecture, not the FC- digital I/O architecture. Honeywell documents the two hardware families separately.

5.2 Confirm Field Voltage

The certified product description specifies 24 VDC field circuits.

Before commissioning, verify:

• Field supply voltage
• Channel wiring
• Field device type
• EOL arrangement
• Knife-disconnect position
• Channel assignment
• Corresponding FC- configuration

A mechanically compatible terminal assembly does not establish electrical compatibility.

5.3 Isolation and Maintenance

Before operating knife disconnects or removing field termination hardware:

1. Place the affected safety function into the approved maintenance state.
2. Follow the site’s Safety Manager shutdown/isolation procedure.
3. Verify the affected field circuits are in a safe maintenance condition.
4. Record the existing channel wiring and EOL arrangement.
5. Operate the knife disconnects only according to the approved maintenance procedure.
6. Inspect the replacement FTA for damaged terminals, contamination, or mechanical damage.

For a safety-system installation, do not treat an FTA replacement as an ordinary terminal-block change.

5.4 Configuration Verification

FC- itself is a field termination assembly, so configuration checks should focus on the associated Safety Manager SC I/O module and field channels.

After replacement, verify:

• FC- identification
• Correct IOTA/FTA association
• Left/right FTA orientation
• 16-channel field assignment
• EOL configuration
• Input/output channel mapping
• Field device states
• Diagnostic status
• Safety logic response

The Safety Manager SC software documentation identifies FC- as supported hardware specifically in conjunction with FC- and FC-.

5.5 Replacement Trap: FC- vs. FC-

These two parts are not simply duplicate ordering numbers.

FC- = Left (L)
FC- = Right (R)

Honeywell’s TÜV documentation explicitly distinguishes the two positions.

When replacing an existing assembly, verify the L/R designation on the hardware before ordering.

5.6 Replacement Trap: FTA vs. I/O Module

Another common sourcing error is ordering FC- when the failed component is actually the , or vice versa.

The functions are different:

• I/O electronics and signal processing.
• IOTA/backplane termination infrastructure.
• left-side field termination.
• right-side field termination.

Honeywell’s supported-hardware documentation confirms this separation.



FAQ

What is Honeywell FC-?

FC- is a Safety Manager SC field termination assembly. Honeywell describes it as a 16-channel, 24 VDC, knife-disconnect, EOL-equipped safety FTA installed on the left side.

Is FC- a digital I/O module?

Technically, it is better described as a field termination assembly, not the I/O processing module itself. The associated is the 32-channel Safety DIO I/O module.

How many channels does FC- terminate?

Honeywell’s certified description specifies 16 channels.

What voltage does FC- support?

The certified product description specifies 24 VDC field circuits.

What does EOL mean on FC-?

EOL means end-of-line. The FTA is designed for field circuits using the corresponding end-of-line termination arrangement. The exact resistor arrangement should be verified against the installed Safety Manager SC documentation rather than assumed from the FTA part number.

What is the difference between FC- and FC-?

FC- is the left-side (L) FTA, while FC- is the right-side (R) FTA. Honeywell lists both under the same Safety Manager SC certification report.

Which I/O module is used with FC-?

Honeywell’s supported-hardware documentation pairs FC- with FC-. The associated redundant IOTA is .

Can FC- be used with FC-PUIO01?

It should not be treated as the correct FTA for FC-PUIO01. Honeywell specifies separate FTA families: FC-/52 for FC- and FC-TUIO51/52 for FC-PUIO01.

Is FC- supported by newer Safety Manager SC software?

Honeywell’s R210.6 documentation lists FC- as part of the supported FC- Safety Manager SC hardware configuration.

What should be verified before purchasing FC-?

Verify the exact model, L/R position, 16-channel configuration, 24 VDC field interface, EOL requirement, associated FC-, FC- architecture, and hardware condition. For an installed safety system, confirm compatibility against the actual Safety Manager SC release and site configuration before replacement.
