Honeywell FS-CPCHAS-0002 Safety Manager Controller Chassis

Description

Key Technical Specifications

Product Introduction & Supply Chain Strategy

The Honeywell FS-CPCHAS-0002 is a 19-inch subrack chassis designed specifically to house Central Processor components, communication modules, and power supplies within Honeywell Safety Manager and Fail Safe Control (FSC) architecture. It houses the critical backplane traces that carry fault-tolerant control signals and redundant DC power lines across system cards. This physical chassis forms the structural base for Emergency Shutdown (ESD), Fire and Gas (F&G), and Critical Control systems across refineries, chemical facilities, and offshore platforms worldwide.

From a total cost of ownership (TCO) perspective, securing a New Surplus FS-CPCHAS-0002 is a high-yield risk-mitigation strategy. Because Honeywell has phased out legacy FSC sub-assemblies, relying on aging on-site backplanes runs the risk of micro-fractures, bus oxidation, or short circuits that crash the entire controller rack. Refurbished or pulled chassis units frequently suffer from bent backplane pins, trace stress, or latent electrical insulation degradation caused by aggressive de-installation. Installing a genuine, zero-wear New Surplus chassis preserves OEM signal integrity, avoids $100,000+ per hour trips from intermittent bus faults, and delivers a 10-to-15 year operating lifespan at a fraction of a full system upgrade budget.

Installation & Configuration Guide

1.Pre-Installation (Preparation & Safety):Mitigate static discharge and lock out all live power.

Verify that all incoming 24V DC and 120/230V AC feeds to the safety cabinet are locked out and tagged out (LOTO). Put on a grounded ESD wrist strap bonded to the cabinet earthing bar. Label and photograph every module position, ribbon cable routing, and field wiring harness prior to disturbing the legacy chassis.

2.Removal of Existing Chassis:Prevent mechanical stress on backplane connectors.

Unscrew and remove all CPU, power supply, and communication cards from the old chassis, placing them in static-shielded bags. Disconnect the chassis ground bonding strap and rear power/bus connections. Carefully unbolt the mounting screws securing the rack to the 19-inch cabinet frame and slide the old chassis straight out to avoid twisting the rack ears.

3.Installation (Mounting & Bus Alignment):Verify mechanical seating and grounding.

Mount the new FS-CPCHAS-0002 chassis into the cabinet 19-inch rails using high-tensile cabinet screws and captive nuts. Reattach the primary protective earth strap directly to the chassis grounding stud, ensuring a low-impedance ground connection. Inspect all card guide tracks and rear edge-connector sockets for zero debris or misalignment.

4.Power-On & System Re-commissioning:Validate voltage levels before inserting CPU cards.

Before re-inserting controller modules, reapply system power and check backplane power rail voltages with a calibrated digital multimeter to ensure clean 24V DC / 5V DC feeds with zero short circuits. Power down, re-seat all controller cards, boot the system, and confirm that all controller diagnostic LEDs return to a solid green RUN state with no backplane fault alarms.

FS-CPCHAS-0002

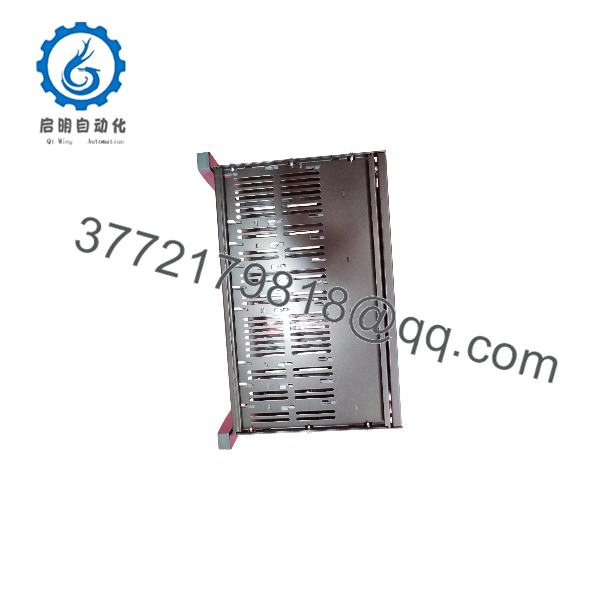

FS-CPCHAS-0002

Firmware/Software Versions & Upgrade Notes

As a passive backplane chassis assembly, the FS-CPCHAS-0002 does not execute internal firmware. However, its backplane trace routing and bus topology are tied to specific hardware releases of Honeywell Safety Manager (R100 through R310) and legacy FSC systems (FSC v7.0 to v11.x).

• Hardware Revision Matching: Ensure that card guide spacing and connector pin counts match your current module generation. The CPCHAS series supports standard FSC architecture module pitch.
• Bus Speed Compliance: The gold-plated connectors on this chassis support high-speed redundant bus handshakes without signal attenuation across Safety Manager hardware builds.
• Firmware Caution during System Swaps: If replacing a chassis as part of a broader module swap, never upgrade controller firmware (e.g., jumping from FSC v8.2 to Safety Manager R300 software) simultaneously. Complete the physical hardware replacement, verify diagnostic handshakes on current stable firmware, and perform software/firmware updates as an isolated, secondary maintenance event.

Frequently Asked Questions (FAQ)

Is this Honeywell FS- unit brand new, or has it been pulled from an active plant?

This product is 100% Brand New Surplus. It has never been installed, never energized in a production environment, and never pulled from a decommissioned facility. It originates directly from surplus plant inventories and project overstock, housed in anti-static packaging to guarantee zero mechanical wear or thermal degradation.

Why choose New Surplus over a refurbished or repaired chassis?

Refurbished racks often hide microscopic stress fractures on backplane traces, weakened connector spring tension, or residual atmospheric corrosion from chemical plants. A single loose backplane socket can drop a redundant controller card, triggering an unplanned plant trip. Purchasing New Surplus provides factory-level pin alignment and insulation integrity, eliminating expensive intermittent downtime risks.

What quality assurance steps do you perform before shipment?

Every FS- undergoes a multi-point inspection SOP before leaving our warehouse. This includes serial number verification against OEM records, a complete visual inspection of all multi-pin backplane connectors under magnification, insulation ground continuity testing, and final repacking in ESD-safe protective materials.

Is the FS- still supported by Honeywell, or is it obsolete?

The FS- belongs to Honeywell’s legacy Safety Manager / FSC family, which has transitioned toward end-of-life (EOL) status as Honeywell shifts focus to newer Safety Manager SC platforms. Because lead times from the OEM for legacy spares are extended or non-existent, maintaining on-site buffer stock of New Surplus chassis components is critical for running facilities.

What warranty coverage comes with this chassis?

We provide a comprehensive 1-year warranty on this New Surplus unit from the date of delivery. If any structural or electrical defect is identified during installation or operation, we will replace the unit or issue a full refund.
