Honeywell MC-TAMT03 51309223-175 16-Channel Thermocouple Input FTA

Description

Key Technical Specifications

The Honeywell MC-TAMT03 is a low-level thermocouple multiplexer Field Termination Assembly used in legacy Honeywell process-control I/O systems. Manufacturer documentation identifies it as an LLMUX TC FTA with local cold-junction reference, compression terminals, a single I/O processor interface, and conformal coating.

Specification caution: Do not assume that every thermocouple type, measurement range, accuracy figure, or environmental rating published by third-party sellers applies to this exact assembly. Use the applicable Honeywell FTA and system manuals to verify sensor compatibility and measurement performance.

Product Introduction & Supply Chain Strategy

The Honeywell MC-TAMT03 (51309223-175) is a 16-channel low-level thermocouple Field Termination Assembly used in Honeywell LLMUX process-control systems. It provides compression-terminal connections, a local cold-junction reference, and a single I/O processor interface for temperature-measurement applications. Its conformal coating and CE-compliant configuration distinguish this assembly from other versions in the product family.

For legacy installations, maintaining verified replacement inventory can reduce the risk of extended outages caused by discontinued hardware. Evaluate Total Cost of Ownership (TCO), supplier traceability, and the availability of compatible companion hardware. Establish buffer stock according to process criticality and lead time variability, and verify the proposed replacement before committing to a last-time-buy strategy.

Installation & Configuration Guide

The MC-TAMT03 connects field thermocouple wiring to the applicable Honeywell LLMUX I/O architecture. Correct installation depends on the matching I/O processor, terminal arrangement, cable assemblies, and cold-junction configuration.

Stage 1: Pre-Installation — Preparation and Safety

1. Verify the part number: Confirm MC-TAMT03 and 51309223-175 against the installed assembly’s label.
2. Apply lockout/tagout (LOTO): Follow the site’s approved electrical isolation procedure before disconnecting field wiring or removing hardware.
3. Document existing wiring: Photograph terminal assignments, thermocouple polarity, shield connections, and cable routing.
4. Confirm system compatibility: Verify the host system, LLMUX I/O processor, companion cables, and mounting arrangement.
5. Prepare ESD protection: Use a grounded wrist strap and appropriate antistatic handling procedures.

Stage 2: Removal

1. Confirm that the affected process signals and control loops are in an approved maintenance state.
2. Isolate the equipment as required by the manufacturer’s instructions.
3. Label each thermocouple connection before disconnecting it.
4. Release the assembly’s retaining hardware and remove it without forcing the connectors.
5. Inspect the terminal blocks, mating connectors, and mounting points for damage or contamination.

Stage 3: Installation — Wiring and Seating

1. Compare the replacement’s model, part number, revision, and physical configuration with the original assembly.
2. Install the assembly in the specified mounting position.
3. Reconnect thermocouple leads according to the approved wiring diagram, preserving polarity and the correct thermocouple extension-wire type.
4. Verify the local cold-junction reference arrangement and the compatible I/O processor interface.
5. Check terminal tightness, cable identification, shielding, and connector engagement before energizing.

Stage 4: Power-On and Functional Testing

1. Restore power according to the approved system startup procedure.
2. Check for hardware diagnostics or I/O communication faults.
3. Verify that the controller recognizes the associated input hardware.
4. Compare representative channel readings with a calibrated temperature source or other approved reference.
5. Test open-thermocouple detection if the installed configuration supports and enables it.
6. Confirm that temperature readings, alarms, and process interlocks behave as expected before returning the equipment to service.
7. Record the replacement details and commissioning results.

Important: Do not assume this field termination assembly can be hot-swapped. Follow the applicable Honeywell maintenance procedure, and do not change controller logic or I/O configuration unless the documented replacement procedure requires it.

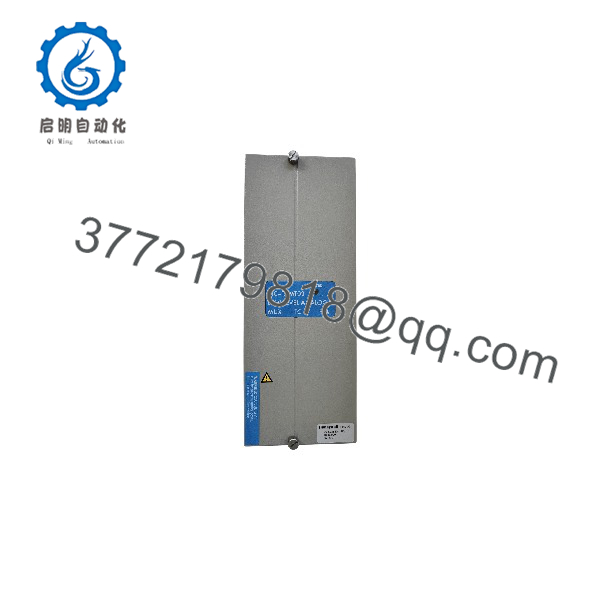

MC-TAMT03 51309223-175

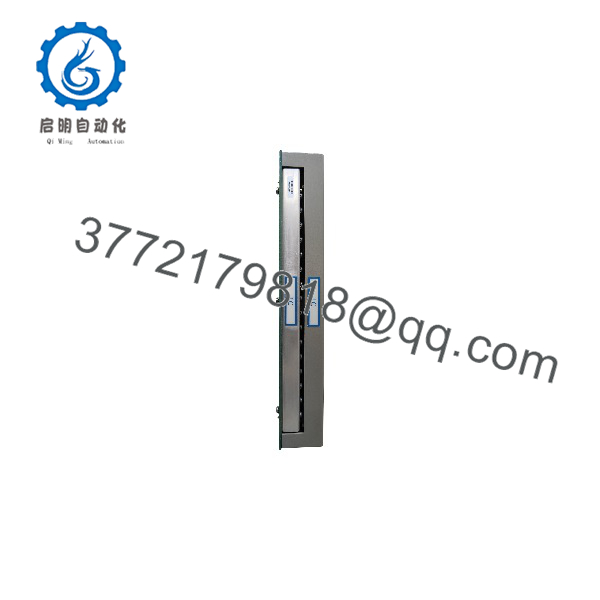

MC-TAMT03 51309223-175

Firmware/Software Versions & Upgrade Notes

The MC-TAMT03 is a field termination assembly rather than a standalone programmable controller. Its compatibility is therefore primarily determined by the associated I/O processor, system hardware, configuration, and wiring. The available product documentation does not establish a universal firmware version for this assembly.

• Firmware requirements: Confirm the applicable firmware and software requirements for the host controller and LLMUX I/O processor.
• Hardware compatibility: Verify the approved combination of MC-, I/O processor, cable assemblies, and system configuration.
• Configuration backup: Record the existing channel assignments, thermocouple types, scaling, cold-junction settings, and open-thermocouple detection settings where applicable.
• Signal integrity: Preserve thermocouple polarity, compatible extension wiring, shielding, and the specified cold-junction arrangement.
• Upgrade precautions: Do not upgrade controller or I/O firmware solely because the termination assembly has been replaced. Any software changes should follow the system’s approved compatibility matrix and change-control process.
• Replacement planning: Honeywell documentation identifies the MC-TAMT04 as an LLMUX2 thermocouple FTA replacement for earlier LLMUX TC assemblies. Confirm the applicable retrofit instructions and associated hardware requirements before treating it as a direct substitute.

Frequently Asked Questions (FAQ)

Q1. What is the Honeywell MC- used for?

The MC- is a low-level thermocouple multiplexer Field Termination Assembly. It connects field thermocouple signals to the applicable Honeywell LLMUX I/O system for industrial temperature measurement.

Q2. What is the difference between MC- and MC-TAMT04?

The MC- belongs to the original LLMUX TC FTA family, while the MC-TAMT04 is an LLMUX2 TC FTA. Honeywell documentation identifies the MC-TAMT04 as a replacement for earlier LLMUX TC versions. Before substituting one for the other, verify the complete part number, associated hardware, wiring, and system-specific migration requirements.

Q3. Is the MC- discontinued?

Some industrial-parts distributors list part number 51309223-175 as discontinued. This does not independently establish its current official OEM lifecycle status. Confirm current support and replacement availability with Honeywell or an authorized support channel before planning a long-term inventory commitment.

Q4. Is the MC- available as new-original or new-surplus inventory?

Availability and condition depend on the supplier’s actual stock. Request photographs of the physical assembly and nameplate, confirmation of part number 51309223-175, and written documentation of condition and warranty.

Do not treat a catalog description or representative product photograph as proof that the specific unit is new or authentic.

Q5. Can the MC- be replaced while the process is running?

Do not assume that live replacement is permitted. The answer depends on the installed I/O architecture and the manufacturer’s approved maintenance procedure. Confirm the impact on temperature signals, alarms, and control loops before disconnecting the assembly.

Q6. Does the MC- require firmware programming?

The assembly itself is not a standalone programmable controller. However, the associated I/O processor and host system may require compatible configuration or software. Preserve the existing channel assignments and verify the system’s recognition of the replacement before returning it to service.

Q7. What warranty should I expect when purchasing the MC-?

Warranty terms depend on the supplier. Confirm the coverage period, start date, return authorization process, and remedies for verified defects in writing. For critical process-control applications, also request inspection records and confirmation that the supplied unit matches the specified part number and hardware configuration.
