Honeywell MC-TDOY22 TDC 3000 / TPS Discrete Output Module

Description

Key Technical Specifications

• Module Type: Digital Output Relay FTA (Field Termination Assembly)
• Output Rating: Relay-isolated contact outputs (compatible with 24 V DC / 120 V AC external field loads)
• Channel Capacity: 16 discrete output channels
• IOP Interface: Multi-conductor ribbon cable connection to Digital Output IOP
• Isolation: Galvanic relay coil-to-contact and channel-to-channel isolation
• Operating Temperature: −40 to +70 °C
• Storage Temperature: −40 to +85 °C
• Relative Humidity: 0% to 95% non-condensing
• Mounting Type: DIN rail or surface cabinet mounting plate
• Dimensions: 205 mm x 120 mm x 50 mm
• Weight: 0.58 kg

Product Introduction

The Honeywell MC-TDOY22 (51304455-150) is a high-density digital output Field Termination Assembly featuring integrated relay isolation for Honeywell TDC 3000 and TPS control systems. It acts as the physical marshaling interface between the central Digital Output Input/Output Processor (IOP) and high-load field actuators such as motor starters, heavy solenoids, and control valves.

Maintenance teams select this relay-backed assembly during system upkeep to prevent field-side electrical surges and inductive kickback transients from damaging sensitive controller backplanes.

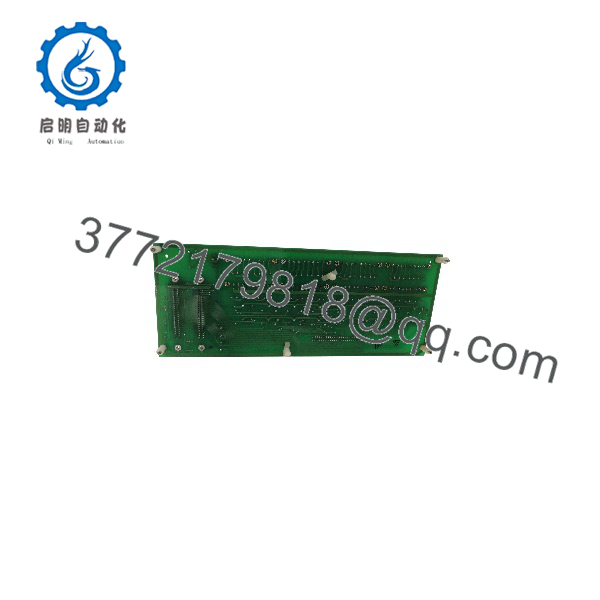

MC-TDOY22

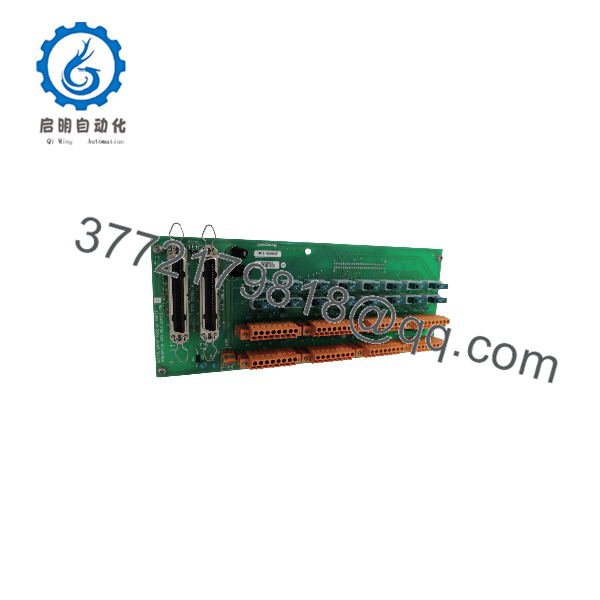

MC-TDOY22

Installation & Configuration Guide

Stage 1: Pre-Installation Preparation

• ⚠️ Safety First: Notify operations of potential control loop interruption, verify that connected field actuators are shifted to a safe manual or de-energized state, execute Lock Out/Tag Out (LOTO) on external actuator power feeds, and allow power to drain down completely.
• Tools Required: ESD grounding wrist strap, #1 and #2 flat-head screwdrivers, Digital Multimeter (Fluke 115 or equivalent), wire labels, reference camera.
• Data Backup: Document current discrete output channel mapping in TDC 3000 engineering configuration tools, note physical terminal numbers, and photograph ribbon cable orientations.

Stage 2: Removing the Old Module

1. Verify external actuator power feeds and loop power supplies are completely dropped to prevent live arcing across relay terminals.
2. Label every field control wire meticulously before unseating them from the screw terminal blocks.
3. Unplug the multi-conductor ribbon cable connecting the FTA to the Digital Output IOP. Do not pull on the ribbon wiring itself.
4. Release the mounting clips or fasteners securing the base assembly and lift it off the panel backplate.

• Self-Check: Confirm all wires are labeled clearly. Leave the old FTA housing accessible until the replacement is verified.

Stage 3: Installing the New Module

1. Ground yourself using an ESD wrist strap and verify the replacement part number suffix matches your exact system bill of materials.
2. Terminal Mapping: Secure the MC-TDOY22 onto the cabinet mounting surface or DIN rail brackets, torque mounting fasteners appropriately.
3. Reconnect the system ribbon cable from the Digital Output IOP to the FTA header, ensuring the polarization key aligns without bending pins.
4. Terminate field wires back to their respective screw clamp locations, maintaining shielding continuity and proper drain-wire grounding.

• Self-Check: Pull gently on each termination screw block to confirm the wire grip is solid and mechanical latching is secure.

Stage 4: Power-On & Testing

• Pre-Power Check: Measure resistance across output terminals using a multimeter to verify there are no inadvertent short circuits or ground faults on the field actuator lines.
• Power-On Steps:
  1. Re-energize the controller cabinet racks and external actuator power feeds.
  2. Check local module health indicators or controller node status logs.
  3. Access the TDC 3000/TPS station interface to verify channel health and perform a controlled software command test (e.g., toggling a safe output point) to validate relay actuation and field device response.
• ⚠️ Troubleshooting Note: If an output channel fails to switch its field device, listen for the physical click of the onboard relay, verify ribbon cable seating, and check the external actuator power supply fusing.

Frequently Asked Questions (FAQ)

Can this FTA be hot-swapped under power?

Honestly, while the terminal block side handles passive field connections, hot-swapping the system ribbon cable connecting to the live Digital Output IOP can inject voltage transients or crash the output bus driver. It is always safest to drop external actuator power and take the logical point offline before touching internal system cables.

Is this model obsolete, and is it genuinely new?

Honeywell TDC 3000 hardware utilizes mature legacy component lifecycles, meaning direct factory replacements can involve extended procurement lead times. Units designated as “New Original” or “New Surplus” are authentic factory-manufactured stock that have never been put into active service, acquired from excess plant reserves or verified surplus inventories.

What is the direct replacement if this exact model is out of stock?

You must match the exact part number (MC-TDOY22 / 51304455-150). Because FTA pinouts, form factors, relay specifications, and ribbon cable headers are specifically mapped to legacy TDC 3000 Digital Output IOP configurations, attempting an unverified substitution will break cabinet wiring geometry and channel mapping.

Will I lose my configuration logic when I swap this FTA?

No. The MC-TDOY22 is a passive Field Termination Assembly containing terminal blocks, relays, fuses, and routing traces—it has no onboard processor or retentive memory storage. The configuration logic and point definitions reside strictly within the TDC 3000 controller database.

Why is your price lower than the OEM factory list price?

Surplus automation providers source excess parts from facility upgrades, plant modernizations, and reserved warehouse stock. Bypassing traditional multi-tier OEM channels allows us to offer immediate hardware availability to maintenance groups at a fraction of legacy manufacturer markups.
