Honeywell TK-PRR021 C200 Redundancy Module

Description

Key Technical Specifications

Available Honeywell-related product references identify TK-PRR021 as a redundancy module for controller redundancy. Market information also identifies 51309288-275 and firmware revision D on a TK-PRR021 listing, while another reference lists a 51309288-475 suffix. Confirm the installed label before procurement because suffix and firmware differences can affect system compatibility.

Product Introduction & Supply Chain Strategy

The Honeywell TK-PRR021 is a redundancy module for a controller pair in an Experion PKS control environment. It supports high-availability controller architecture so a qualified standby controller can assume control if the primary processor or associated controller path fails. It is not an I/O module, sensor, or standalone processor; it is a system-level component that must match the complete redundant controller design.

This product is a Brand New Surplus unit. It is not used, not pulled from a decommissioned plant, and not refurbished. All modules undergo rigorous quality verification to ensure OEM-level reliability. A redundant control system protects process availability only if its redundancy hardware, software baseline, and synchronization function are healthy. Keep one verified buffer stock unit, but avoid excess stock: use cross-site sharing for identical architectures, track firmware revisions, and include the module in lifecycle and last-time-buy planning.

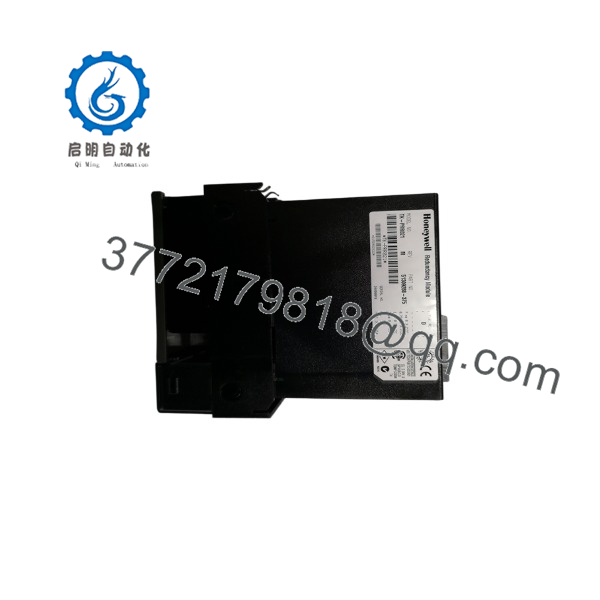

TK-PRR021

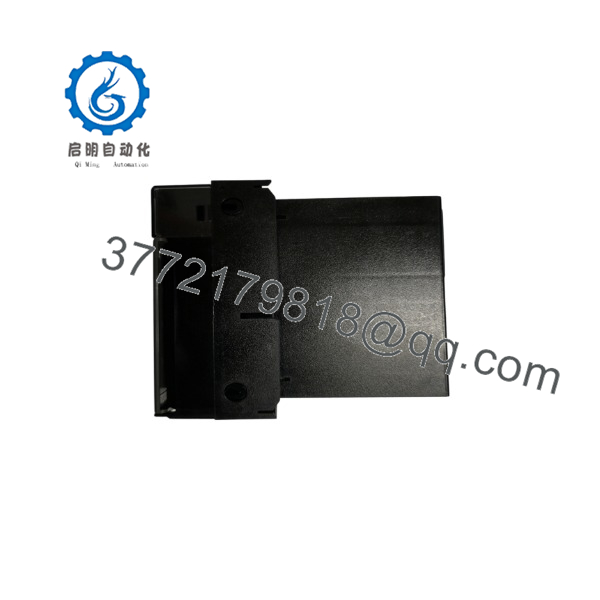

TK-PRR021

Installation & Configuration Guide

Stage 1: Pre-Installation

1. Obtain approved DCS maintenance authorization, management-of-change approval, and operations acceptance before replacing a redundancy component.
2. Identify the complete redundant controller architecture: primary processor, standby processor, TK-PRR021 module, chassis model, power supplies, controller communication interfaces, network paths, I/O links, and any remote I/O or peer-control dependencies.
3. Record the controller asset numbers, chassis locations, processor slot positions, redundancy module slots, module serial numbers, hardware revisions, part-number suffixes, firmware revisions, controller software release, and Experion PKS project revision.
4. Confirm the current redundancy state. Determine which processor is primary, which is standby, whether synchronization is healthy, whether a switchover has recently occurred, and whether any redundancy alarms or mismatch diagnostics are active.
5. Record active process alarms, controller diagnostics, redundancy event history, forced points, bypasses, inhibited alarms, maintenance overrides, active control strategies, and any temporary operating restrictions.
6. Back up the validated controller database, control strategies, I/O configuration, peer-control configuration, redundancy settings, network parameters, firmware baseline, engineering project, and recovery procedure.
7. Verify that both controller configurations match the approved baseline. Do not replace the redundancy module until unexplained configuration mismatch, controller version mismatch, or unresolved synchronization errors are understood.
8. Place the process in an approved safe operating state. If controller availability will be reduced during the work, coordinate with operations to reduce production risk and ensure required manual response capability.
9. Determine whether the installed Honeywell architecture permits online replacement. Do not assume the TK-PRR021 is hot-swappable merely because controller redundancy exists.
10. Apply lock-out/tag-out to the relevant 24 V DC control power and chassis circuits when required by the approved Honeywell maintenance procedure.
11. Verify control power quality, polarity, grounding, and supply stability. A market listing identifies the TK- with a 30 V DC marking; confirm the actual system supply and approved operating range from Honeywell documentation.
12. Wear a grounded ESD wrist strap and use ESD-safe handling procedures.
13. Photograph the chassis, module location, two-slot installation area, primary and standby controller positions, connectors, network cables, grounding, power-supply wiring, and module labels.
14. Confirm that the New Surplus replacement is the exact TK- model with an approved part-number suffix and firmware revision. Do not substitute TC-, a different Honeywell redundancy module, or another chassis module without written compatibility confirmation.

Stage 2: Removal

1. Confirm that operations, the control-room operator, and the DCS owner have acknowledged the planned loss or reduction of redundancy protection.
2. Verify the active controller is healthy and that the process is in a stable condition before touching the redundancy module.
3. If the site procedure requires a controlled controller switchover, perform it only under the approved test plan and record the result before removal.
4. If controller power isolation is required, move the process to its approved safe condition, isolate the relevant circuits, and verify absence of voltage.
5. Label all interface connections, connectors, fiber or network cables, grounding straps, and chassis positions before removal.
6. Release the module using the designated retention screws, latches, clips, or ejector mechanism. Because available information indicates a two-slot footprint, ensure both occupied chassis positions are clear before extraction.
7. Withdraw the module evenly. Do not twist it, force it through the chassis opening, or apply side load to backplane connections.
8. Inspect the chassis backplane, card guides, connector pins, grounding points, cooling path, power-supply contacts, and adjacent controller modules for contamination, corrosion, bent contacts, heat damage, loose hardware, or abnormal indicators.
9. Preserve the removed module in ESD-safe packaging. Label it with controller pair identification, chassis location, installed part number, firmware revision, failure symptoms, redundancy diagnostic history, removal date, and engineering backup reference.

Stage 3: Installation

1. Compare the replacement TK- with the removed module side by side. Confirm model number, full Honeywell part number, hardware revision, firmware revision, two-slot mechanical arrangement, connector layout, labels, and mounting features.
2. Stop the installation if the part-number suffix or firmware revision does not match the approved controller baseline. A 51309288-275 unit with F.W. Rev. D must not be assumed interchangeable with a 51309288-475 variant.
3. Inspect the chassis slot and module connectors before insertion. Do not install the module if pins are bent, corroded, contaminated, or damaged.
4. Align the module with both intended chassis slots and insert it evenly using the approved guides.
5. Seat the module fully and engage all latches, screws, retaining clips, or ejectors.
6. Restore any removed grounding straps, cable restraints, shielding, network connections, and interface connectors exactly as documented.
7. Verify the controller power supplies, processor connections, and chassis ventilation before restoring power.
8. Do not alter controller firmware, Experion PKS software release, application logic, I/O database, network topology, or unrelated chassis hardware during a direct redundancy-module replacement unless a separate change request explicitly covers those changes.
9. Confirm that the validated project backup, controller database backup, redundancy recovery procedure, and commissioning checklist are available before energizing the system.

Stage 4: Power-On & Testing

1. Verify that the controller power supply is stable and within the system’s approved voltage range before energization.
2. Restore power according to the approved Honeywell startup sequence and observe the primary and standby controller status, module indicators, power status, diagnostics, and redundancy communications.
3. Confirm that the TK- is recognized by the controller system and that no configuration, hardware, communication, synchronization, or redundancy mismatch alarms remain.
4. Verify that the primary and standby controllers report the expected roles and that data synchronization completes successfully.
5. Compare controller application checksums, software versions, I/O configuration, network settings, time synchronization, control strategies, and retained configuration data against the approved baseline.
6. Confirm that field I/O communications, operator-station communications, peer-control functions, alarms, trends, historian interfaces, and safety-related interlocks operate normally.
7. Perform a controlled redundancy switchover only if the site procedure, operating condition, and test authorization permit it. Confirm that the process remains stable and that the standby controller assumes the active role correctly.
8. Review event logs for switchover errors, data mismatch, communication loss, I/O disturbances, or unexpected controller resets.
9. Remove maintenance bypasses, overrides, and temporary process restrictions only under approved control.
10. Record the installed module serial number, part-number suffix, firmware revision, test results, switchover result, software baseline, installation date, technician, and remaining buffer-stock quantity.

Firmware/Software Versions & Upgrade Notes

• Recommended firmware version: Retain the exact validated firmware and hardware-revision baseline used by the installed redundant controller pair. Do not treat a newer firmware revision as automatically preferable during an emergency module replacement.
• Reported revision control: Public market data identifies TK- part number 51309288-275 with F.W. Rev. D. Other market data identifies a 51309288-475 variant. Verify the existing module’s complete label, hardware revision, firmware revision, and Honeywell compatibility documentation before procurement.
• Controller compatibility: The TK- supports controller redundancy. Confirm the paired processor model, chassis revision, power-supply architecture, controller software release, and Experion PKS version before installation.
• Configuration retention: Maintain controlled backups of both controller configurations, the Experion PKS project, control strategies, I/O database, peer-control settings, redundancy parameters, network addresses, security settings, and recovery procedures.
• Synchronization baseline: Both controllers must use a compatible, approved application and configuration baseline. Unresolved mismatch alarms, checksum differences, or software-version discrepancies should be corrected before placing the redundant pair back in service.
• Backward compatibility: An earlier redundancy-module firmware or hardware revision may not support newer processor revisions, controller software features, network components, or diagnostics.
• Forward compatibility: A later module revision may require a controller software update, revised engineering tools, configuration conversion, regression testing, and formal validation. Treat the change as an engineered modification rather than a simple spare swap.
• Upgrade warning: Do not upgrade controller firmware, redundancy-module firmware, Experion PKS release, or application software during an emergency replacement unless the original baseline is unavailable and the site completes formal impact assessment, testing, validation, and management-of-change approval.
• Downgrade warning: Do not restore an older controller image or firmware version without confirming compatibility with the installed processors, redundancy module, I/O modules, and current application database. An uncontrolled downgrade can create synchronization faults or unexpected control behavior.
• Spare-control recommendation: Store each New Surplus TK- in ESD-safe packaging with the complete Honeywell part number, hardware and firmware revision record, compatible controller-pair list, controller backup reference, commissioning checklist, and redundancy-switchover test record.

Frequently Asked Questions (FAQ)

Are these really new units?

Yes. This inventory standard applies only to New Original / New Surplus units. A New Surplus TK- should show no chassis insertion wear, altered labels, damaged connectors, corrosion, heat discoloration, board-level modifications, contamination, or missing revision markings. Incoming QC should verify the model number, complete Honeywell part number, serial number, hardware revision, firmware revision, connector condition, two-slot mechanical fit, ESD-safe packaging, and available quality-verification records.

Why is New Surplus pricing lower than OEM new but higher than lower-cost alternatives?

OEM-new pricing reflects active manufacturer channels, support coverage, and standard commercial terms. New Surplus pricing reflects the cost of sourcing, validating, preserving, and warranting genuine legacy DCS redundancy hardware. Lower-cost alternatives can introduce wrong firmware, mismatched part-number suffixes, damaged backplane connectors, poor storage history, unverified configuration compatibility, or incomplete traceability. For a redundant controller, the relevant metric is Total Cost of Ownership (TCO): the part cost plus risk of a failed switchover, process interruption, recovery labor, engineering validation, and lost production.

Is the TK- obsolete or EOL?

Treat the TK- as a legacy Honeywell redundancy spare until Honeywell or an authorized channel confirms its exact lifecycle status and official replacement path. Public sources show continuing market availability, but this does not prove current factory production, long-term support, or interchangeability among part-number suffixes.

For a production-critical redundant controller pair, keep one exact verified buffer stock unit on-site. Consider a second unit only when several independent controller pairs use the same exact revision, cross-site sharing cannot meet the plant’s recovery-time objective, and the downtime risk exceeds the carrying cost.

Can I hot-swap the TK-?

Do not assume hot-swap capability. Redundant controller architecture does not automatically mean every redundancy component can be removed while energized. Online replacement depends on the exact chassis, processor arrangement, firmware baseline, controller state, site procedure, and process risk. Treat replacement as a controlled maintenance event unless Honeywell documentation for your exact configuration explicitly authorizes an online procedure.

Will replacing the module erase the controller program?

The controller application normally resides in the controller system rather than solely in the TK-. However, a redundancy-module replacement can expose configuration mismatch, synchronization, firmware, communication, or startup issues. Back up both controller configurations before work and verify application checksums, control strategies, I/O mapping, communications, and synchronization after installation.

Can I substitute TC- or a different Honeywell redundancy module?

Not without a formal engineering-approved compatibility review. The TC- and TK- may be related Honeywell part families, but a matching product description is not proof of identical chassis fit, firmware, connectors, controller compatibility, or regulatory configuration. Similarly, 51309288-275 and 51309288-475 should not be substituted based on partial part numbers alone.

Match the exact full model, part-number suffix, hardware revision, firmware revision, chassis type, paired controller model, and Honeywell-approved documentation before release.

What warranty and quality documentation should accompany the spare?

Specify a written 12 month warranty, subject to ESD-safe storage, approved installation, and operation in a compatible redundancy architecture. Require module-label and serial-number photographs, hardware and firmware revision verification, connector inspection records, two-slot mechanical inspection, packaging verification, functional-test evidence where an approved test environment is available, and final QC sign-off. Store the records with the controller asset file, software baseline, configuration backup, recovery procedure, and redundancy-switchover test results.
