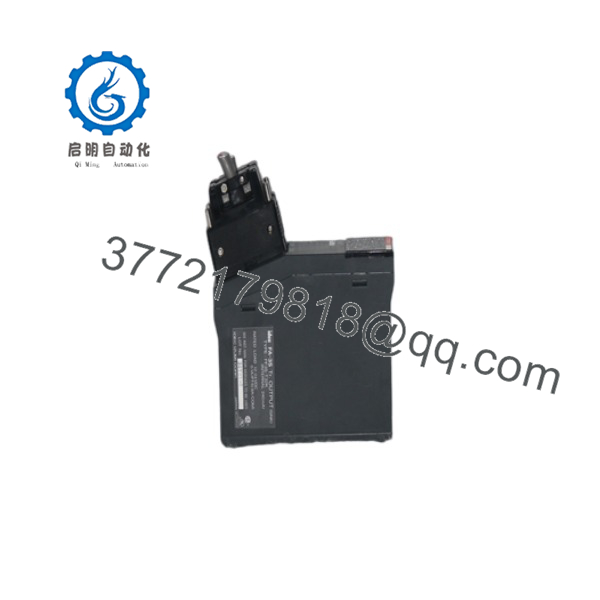

IDEC PF3S-T32K FA-3S PLC 32 Point Transistor Output Module

Key Technical Specifications

Product Introduction

The IDEC PF3S-T32K is a 32-point transistor sink output module for the IDEC FA-3S PLC platform. It provides DC switching control for solenoids, relays, contactors, indicator devices, and other industrial loads requiring 12 to 24 V DC outputs. The module uses transistor output circuits with photocoupler isolation between the output terminals and internal PLC electronics.

The PF3S-T32K is used in legacy FA-3S installations where maintaining existing control panels is more practical than complete PLC replacement. When replacing this module, verify output wiring, load current, common grouping, and PLC CPU compatibility before installation.

PF3S-T32K

Installation & Configuration Guide

Stage 1: Pre-Installation Preparation (Estimated Time: 10 Minutes)

⚠️ Safety First

1. Notify operations personnel before removing the FA-3S output module.
2. Place the controlled equipment into a safe shutdown condition.
3. Apply lockout/tagout procedures to the PLC power supply.
4. Remove power and wait at least 5 minutes before handling the module.

Tools Required

• ESD wrist strap
• PH1 screwdriver
• Digital multimeter
• Wire labels
• Smartphone for wiring photographs

Data Backup

1. Record the existing FA-3S rack configuration.
2. Photograph:
   • PF3S-T32K terminal wiring
   • Module position
   • Output numbering
   • Common terminal connections
3. Verify connected loads:
   • Solenoid valves
   • Relay coils
   • Motor starters
   • Signal lamps

Stage 2: Removing the Old Module (Estimated Time: 10 Minutes)

1. Remove the PLC cabinet access cover.
2. Confirm power is fully isolated.
3. Label every output wire before removal.
4. Disconnect terminal wiring carefully.
5. Release the FA-3S module locking mechanism.
6. Pull the PF3S-T32K straight out from the base connection.

Inspect:

• Backplane connector pins
• Dust contamination
• Corrosion
• Damaged terminal blocks

⚠️ Keep the removed module until the replacement passes testing.
The old unit is the most reliable reference for terminal mapping.

Stage 3: Installing the New Module (Estimated Time: 10 Minutes)

1. Wear an ESD wrist strap before handling the replacement module.
2. Confirm the label matches:
   • IDEC PF3S-T32K
   • FA-3S series compatibility
3. Inspect connector pins before installation.
4. Insert the module firmly into the PLC base.

Configuration Verification (Critical Step)

The does not use software configuration parameters like modern Ethernet PLC modules. However, verify:

• Output addressing matches the original PLC program.
• Terminal wiring matches the original module.
• Common terminals are correctly grouped.
• Load current remains below 0.1 A per output point.

Self Checklist

• Correct model installed
• Output wiring verified
• Connector fully seated
• Terminal screws tightened
• Load ratings checked

Stage 4: Power-On & Testing (Estimated Time: 20 Minutes)

Pre-Power Check

1. Use a multimeter to verify no short exists between:
   • +24 V DC
   • Output terminals
   • Common terminals
2. Confirm field devices are correctly wired.

Power-On Steps

1. Restore PLC power.
2. Check FA-3S CPU status.
3. Monitor output module operation.
4. Test each output channel using controlled commands.
5. Verify connected field devices respond correctly.

⚠️ Troubleshooting Note

• If outputs remain OFF, check PLC program addressing first.
• If an output fails immediately, inspect the connected load for overcurrent.
• If multiple outputs fail together, check the common terminal wiring.

Frequently Asked Questions (FAQ)

Q1: Is the IDEC still manufactured?

The belongs to the legacy FA-3S PLC family. Availability is generally through remaining inventory, surplus suppliers, or repair channels rather than normal current production channels. Plan lifecycle management carefully for installed FA-3S systems.

Q2: What type of output does the provide?

The provides 32 transistor sink outputs. Each output handles up to 0.1 A, with four common lines rated at up to 0.5 A each.

Q3: Can I hot-swap the while the PLC is powered?

No. The FA-3S architecture was not designed for modern hot-swapping procedures. Remove power before replacing the module. Pulling an output module under power can damage the backplane or connected field devices.

Q4: Will replacing the erase my PLC program?

No. The PLC user program resides in the FA-3S CPU memory, not inside the output module. However, always document the existing system before replacement because incorrect wiring can create unexpected machine behavior.

Q5: What should I verify before ordering a replacement ?

Check:

• Exact model:
• FA-3S PLC CPU compatibility
• Output type: transistor sink
• Number of points: 32
• Field voltage: 12 to 24 V DC
• Output current requirements

A similar-looking IDEC output module may have different output polarity or electrical ratings.

Q6: Why is the available below original OEM pricing?

Legacy automation components are often sold from surplus inventory or refurbished stock. Pricing depends on condition, storage history, testing performed, and remaining availability. Confirm whether the unit is New Original / New Surplus or Refurbished (tested) before purchase.

Q7: What testing should be requested when buying a surplus ?

For critical equipment, request:

• Serial number verification
• Visual inspection photos
• Power-on test record
• Output channel testing results
• Final QC report

A tested surplus module reduces commissioning risk when maintaining older FA-3S PLC systems.
