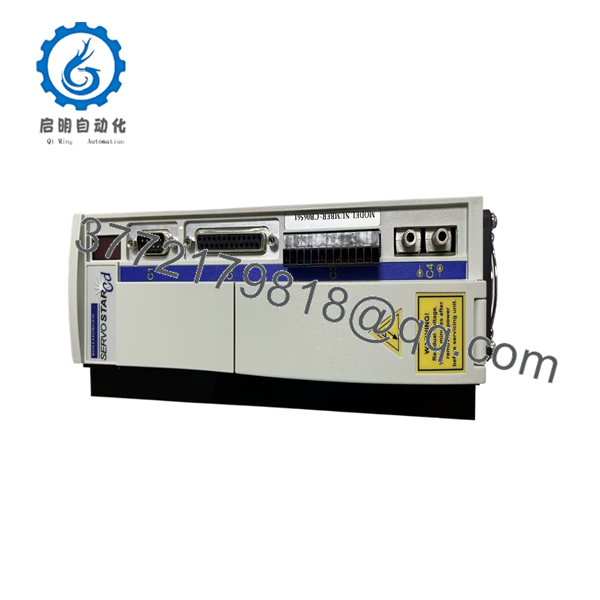

Kollmorgen CB06561 PRD-B040SSLZ-62 CD Servo Drive

Key Technical Specifications

Technical verification note: The available secondary sources do not provide a sufficiently consistent OEM datasheet record for every parameter of this exact configuration. In particular, input voltage, feedback interface, continuous current, and communications should be checked against the CB06561 nameplate and Kollmorgen documentation before a field replacement.

Product Introduction

The Kollmorgen CB06561 PRD-B040SSLZ-62 is a digital servo drive/servo amplifier intended for closed-loop motion control. Available technical listings associate the unit with position control, velocity regulation, torque/current control, and servo motor feedback systems.

This is a legacy Kollmorgen motion-control component, so replacement should be based on the complete part number, motor winding data, feedback type, command interface, and configured parameters—not physical appearance alone. Secondary documentation specifically warns that configurable servo drives require matching motor and feedback settings.

CB06561 PRD-B040SSLZ-62

CB06561 PRD-B040SSLZ-62

Installation & Configuration Guide

Stage 1: Pre-Installation Preparation — 5–10 minutes

⚠️ Safety First: Notify operations, place the machine in a safe state, isolate the servo system, apply lockout/tagout, and verify that the DC bus has discharged before touching the drive.

Tools Required

• ESD wrist strap
• Appropriate Phillips/flat-blade screwdrivers
• Digital multimeter
• Wire labels
• Smartphone or camera
• Existing drive documentation and motor datasheet

Data Backup

1. Record the complete drive nameplate information.
2. Photograph every terminal connection before removal.
3. Photograph switches, jumpers, connectors, and parameter settings.
4. Record motor model and feedback device.
5. Back up servo parameters if the existing controller/software permits it.
6. Record command-source configuration and any analog scaling.

Stage 2: Removing the Old Module — 5 minutes

1. Confirm power isolation with a multimeter.
2. Remove the protective cover or front access components as applicable.
3. Label every power, motor, feedback, and control connection.
4. Disconnect wiring without pulling on cables or connector bodies.
5. Release the mounting hardware.
6. Remove the drive carefully and inspect the mounting area.
7. Check terminals and connectors for heat discoloration, corrosion, or mechanical damage.

⚠️ Keep the old CB06561 until the replacement has completed commissioning. Its terminal arrangement and parameter configuration provide useful references if the replacement behaves differently.

Stage 3: Installing the Replacement — 5–10 minutes

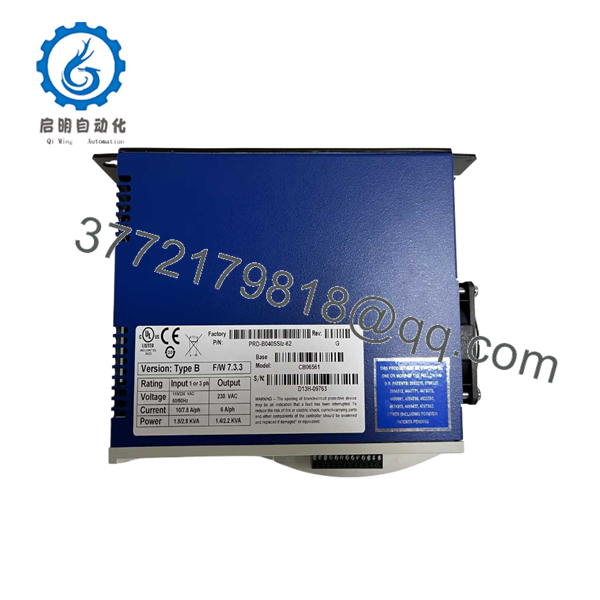

1. Verify the complete part number: CB06561 / PRD-B040SSLZ-62.
2. Confirm that the replacement’s electrical rating matches the machine’s supply and motor requirements.
3. Use an ESD strap before handling the electronics.
4. Mount the drive securely.
5. Reconnect power and motor wiring according to the applicable Kollmorgen wiring diagram.
6. Reconnect the feedback device using the correct connector and cable arrangement.
7. Restore command and enable wiring.
8. Do not assume a similar Kollmorgen drive has identical terminal assignments.
9. Verify motor phase wiring and feedback polarity before energizing.

Self-Checklist

• Exact model and suffix verified
• Supply rating verified
• Motor compatibility verified
• Feedback type verified
• Control wiring photographed
• Parameters backed up
• Grounding verified
• Mounting secure

Stage 4: Power-On & Testing — 10–15 minutes

1. Recheck the power circuit for shorts before energizing.
2. Power the control system according to the machine’s approved startup procedure.
3. Observe the drive’s status indicators.
4. Check for immediate drive faults.
5. Connect the approved Kollmorgen commissioning software or machine controller.
6. Verify the stored/active motor parameters.
7. Verify feedback detection.
8. Confirm command source and enable logic.
9. Test the axis at zero or low speed before applying production motion.
10. Check direction, acceleration, deceleration, following error, and limit inputs.
11. Perform a controlled dry run.
12. Return the machine to production only after the axis passes the machine’s normal acceptance checks.

⚠️ Do not change motor or feedback parameters simply to clear a startup fault. A parameter change can mask a wiring or compatibility problem and create an unsafe motion condition.

Common replacement traps

• Firmware/configuration mismatch: Record the existing configuration before removing the old drive.
• Feedback mismatch: Resolver and encoder configurations are not interchangeable by assumption.
• Motor mismatch: Verify motor winding/current requirements against the drive.
• Parameter loss: A replacement drive may require restoration of application-specific tuning parameters.
• Incorrect wiring: Never transfer connections solely by terminal position. Use the correct Kollmorgen schematic.

Frequently Asked Questions (FAQ)

Can the CB06561 be hot-swapped?

Do not assume it can. Treat the replacement as a powered-down servo-drive replacement unless the specific machine documentation explicitly permits energized replacement. Servo power and stored DC-bus energy create electrical and equipment hazards.

Is PRD-B040SSLZ-62 an obsolete model?

The available market evidence indicates that this is a legacy Kollmorgen servo-drive model. One secondary source explicitly describes the CD series as having high lifecycle risk. However, an official current Kollmorgen lifecycle statement for this exact part number was not located in the available sources.

Is this the same as a standard S700 drive?

Do not assume that. Some reseller pages classify PRD-B040SSLZ-62 under the S700 family, while other listings specifically identify it as a CD Servo Drive. This discrepancy is precisely why the complete nameplate and OEM documentation should be checked before procurement or replacement.

Will I lose my servo parameters when replacing the drive?

Potentially, yes. The replacement unit should be treated as requiring configuration verification unless the parameter set has been backed up and successfully restored. Motor, feedback, tuning, command-source, and limit parameters can all affect commissioning.

What should I verify before ordering a replacement?

At minimum, provide the supplier with , PRD-B040SSLZ-62, the motor model, feedback type, machine/controller interface, and a clear photograph of the existing nameplate. This reduces the chance of receiving a physically similar but electrically incompatible drive.

Can a different Kollmorgen drive replace this model?

Possibly, but it should not be treated as a direct replacement without an engineering compatibility check. Verify voltage, current capacity, motor compatibility, feedback, command interface, mechanical installation, and parameter migration requirements.

Why can a surplus cost less than an OEM replacement?

Legacy automation parts can enter the surplus market through plant closures, machine upgrades, excess inventory, and system modernization projects. Condition matters: “New Original,” “New Surplus,” “Used,” and “Refurbished/Tested” are materially different procurement categories. Ask for the actual nameplate, serial number, condition statement, and test evidence before purchase.
