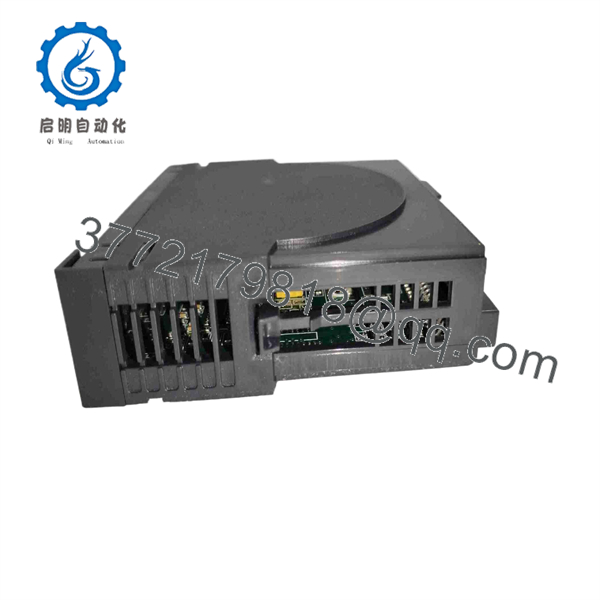

METSO D201134 Digital Input Output Module

  • Model: D201134
  • Brand: Metso (Max Controls / Valmet)
  • Series: MAX 1000 / MAX DNA Automation System
  • Core Function: Processes discrete field contact signals and actuation outputs for DCS control.
  • Product Type: High-Density Digital Input/Output Module
  • Key Specs: Multi-Channel Discrete Processing | 24 V DC Field Voltage | 1500 V Bus Isolation
  • Condition: New Original / New Surplus (Never refurbished)
  • Inventory Status: Legacy / Discontinued OEM Item — High-priority candidate for safety stock buffer.
Get a Quote
Categories: , , , , SKU: D201134 Brand:

Description

3. Key Technical Specifications

Parameter Specification Value
Manufacturer Metso Automation (Valmet / Max Controls)
Part Number D201134
Module Type Discrete / Digital I/O Card
Channel Configuration High-Density Multi-Channel Input/Output
Operating Voltage 24 V DC (Nominal Field Signal)
Logic Thresholds Compliant with IEC 61131-2 Type 1 standards
Backplane Power 24 V DC ± 10%, 200 mA Nominal
Isolation Rating 1500 V AC Channel-to-Backplane
Response Time < 1 ms Input Filter / Output Switch
Operating Temperature 0 to +60 °C (32 to 140 °F)
Storage Temperature −40 to +85 °C (−40 to 185 °F)
Chassis Mounting Subrack / Card Cage Slot Format

4. Product Introduction & Supply Chain Strategy

The Metso D201134 is a high-performance discrete input/output module built for the MAX 1000 and MAX DNA distributed control systems. It executes fast-acting digital logic processing, monitoring dry contacts, limit switches, and motor starter feedback while driving solenoids and status indicators in power generation, pulp and paper, and heavy process manufacturing.

Securing the D201134 as New Surplus eliminates the operational vulnerabilities associated with legacy system component shortages. Sourcing unissued, factory-sealed surplus inventory guarantees original OEM insulation resistance and relay/logic gate integrity—bypassing the hidden thermal stress and contact oxidation typical in used hardware. Holding 1–2 backup units on-site safeguards critical interlocking loops against unplanned downtime costs that often exceed $25,000 per hour.

D201134

D201134

D201134

D201134

5. Installation & Configuration Guide

Stage 1: Pre-Installation (Prep & Safety)

  1. Initiate Lock-Out/Tag-Out (LOTO) procedures on the target chassis and field power supplies.
  2. Put on an ESD wrist strap attached to a verified ground point.
  3. Document terminal block pinouts and snap a clear reference photo of the existing card’s DIP switches and jumper blocks.

Stage 2: Removal

  1. Loosen the retention screws on the front terminal connector and swing the field wiring harness clear of the module.
  2. Unlatch the top and bottom card ejector handles simultaneously.
  3. Slide the D201134 straight out along the chassis rails to ensure backplane connector pins remain straight.

Stage 3: Installation (Clone & Seat)

  1. Match the DIP switch node addresses and jumpers on the replacement D201134 to mirror the removed board.
  2. Align the module card edges with the subrack guides and push smoothly inward until the backplane contacts engage.
  3. Lock the ejector handles flush against the card frame and tighten all retaining hardware.

Stage 4: Power-On & Testing

  1. Reinstall the field wiring terminal block and secure the mounting screws.
  2. Restore power to the rack chassis; monitor the front panel diagnostic LEDs.
  3. Confirm the power LED shows steady green and that active I/O channels correctly track field switch states before returning the card to automatic logic execution.

6. Firmware/Software Versions & Upgrade Notes

  • System Compatibility: Compatible with MAX DNA / MAX 1000 System Software Revision 4.0 and higher.
  • Redundancy Tracking: When installed in dual-redundant processing racks, ensure both active and standby subracks utilize matching module hardware revision codes.
  • Handling Hardware Swaps: Never adjust firmware settings or flash the module during live plant operation. Firmware mismatches between the rack communication processor and the D201134 can trigger bus fault traps, leading to an immediate fail-safe lock of associated discrete outputs.

7. Frequently Asked Questions (FAQ)

Is this Metso unit brand new?

Yes. All units offered are guaranteed New Surplus / Original New stock. They originate from unissued spare parts inventory, remain in anti-static protective packaging, and show zero wear on backplane contacts.

Why should I choose New Surplus over a lower-priced refurbished ?

Refurbished discrete modules often carry latent component defects, aged optical couplers, and degraded solder joints hidden beneath cleaned faceplates. A single failure on a refurbished card can drop a critical pump or valve circuit, causing emergency shutoffs that cost far more than the price difference of a original new module.

What is the availability status for the Metso ?

The is a mature, discontinued OEM assembly. Because factory production lines no longer run this model, holding New Surplus inventory on-site is essential for plants seeking to extend the operating lifespan of their MAX DNA controls without an expensive migration.

Can I replace the while the rack is live?

Live hot-swapping is strongly discouraged for this series. Inserting or extracting the card with backplane power applied can cause voltage transients across adjacent pins, risking hardware damage to surrounding I/O modules on the same bus.

What warranty is provided with this module?

This New Surplus Metso includes a comprehensive 1-year replacement warranty. Every card undergoes rigorous electrical continuity and power-on logic testing prior to dispatch to deliver complete Total Cost of Ownership (TCO) efficiency and operational safety.
